- 45/90 Degree Layout Miter Gauge
Overview

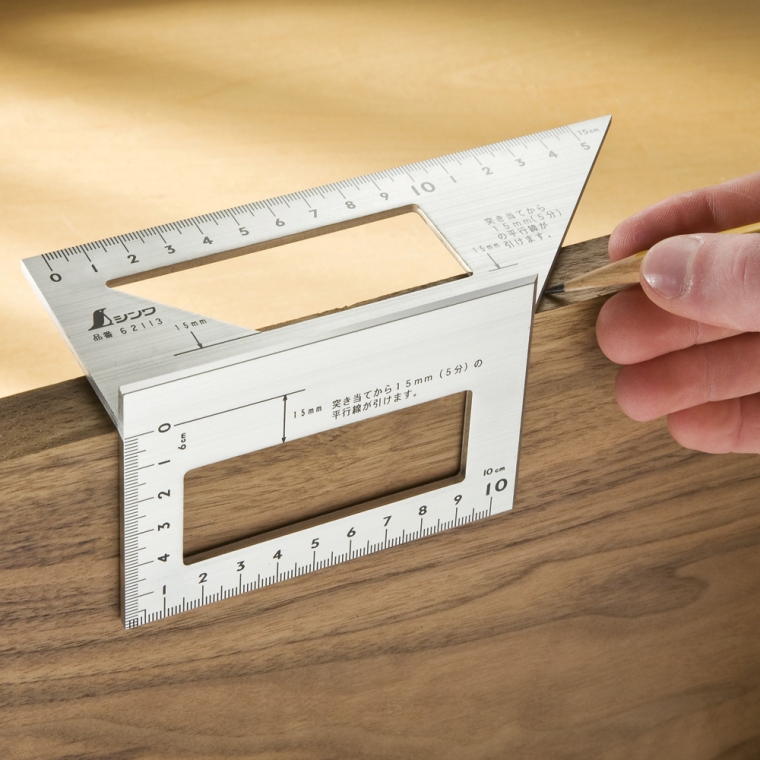

Make layout easier — scribe perfect 45° and 90° cutlines at the same time! Ideal for picture frames, corner molding, and various box constructions, this precise gauge also works to prep saw blades or drill presses for angled jobs. A balanced, wide-face design adds remarkable stability, while interior windows make marking parallel lines fast and easy. Made from solid, lightweight aluminum. Use this versatile gauge for precise 45° and 90° reference all over the shop.
Features:
- Great for marking as well as angle checking
- Windows in each face add versatility (ideal for marking parallels)
- Three scales allow for precise distance measurement (metric only)
- Weighs just 90 grams (roughly 3.2 ounces)
Technical Details
- Brand: Shinwa Measuring Tools
- Manufacturer Part Number: 62113
- Weight (lbs): 0.2500
- Style: Square
