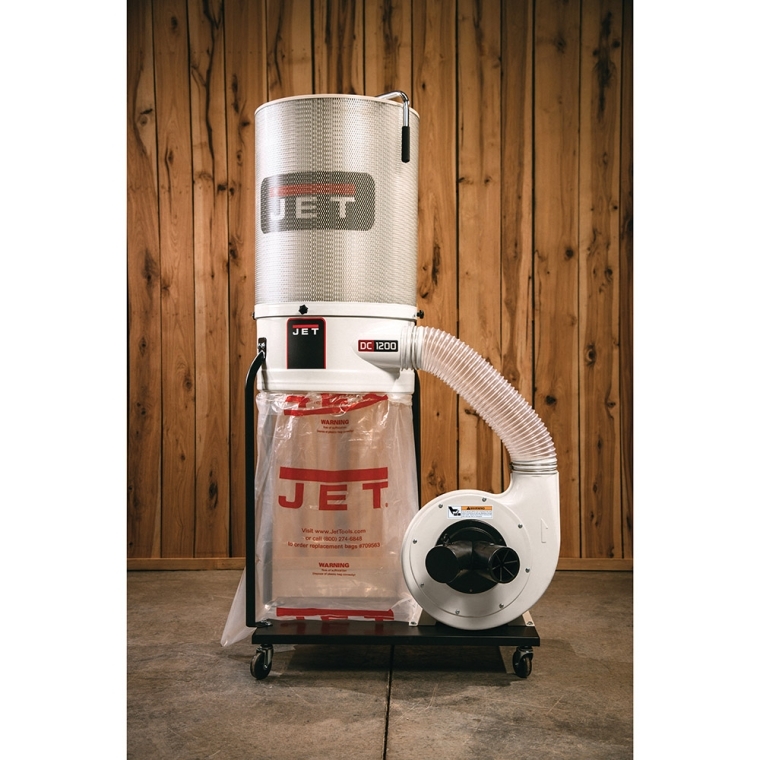

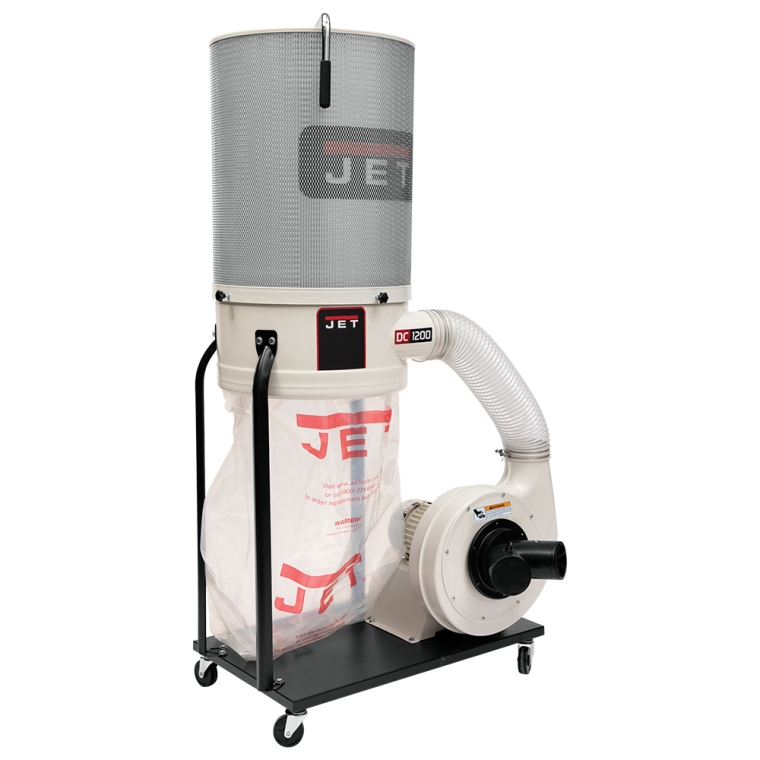

Jet DC-1200VX-CK3 Dust Collector, 2HP 3PH 230/460V, 2-Micron Canister Kit (710704K) Zoom

Jet DC-1200VX-CK3 Dust Collector, 2HP 3PH 230/460V, 2-Micron Canister Kit (710704K)

Item #: 49011
Direct Ship
$749.99
Sign up for price alert Add to Wishlist Find in Store

Maximum number of characters: 3

* Required Fields

Overview

The JET DC-1200VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.


Features:

  • Vortex Cone improves chip separation and collector bag packing efficiency
  • Eliminates premature filter clogging for sustained performance
  • Single-stage design for economical and quiet operation
  • Industrial controls designed for years of trouble-free use
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • High air velocity (CFM) design stands up to any competitive specifications
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Includes four casters for maneuverability and total portability
  • 5 Year Warranty

Important Notes

  • There is an additional $75.00 shipping charge for this item.
  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 15 business days.
  • 15% restocking fee on all returned merchandise.
  • The carrier will need to know if delivery is to a residential address (we'll ask you about that during checkout). There is no charge for this
  • Please call customer service before returning product.

Technical Details

  • Style (Type) Canister
  • Air Flow @ 4" (CFM) 1,200
  • Number of Air Inlets (1) at 6, (2) at 4
  • Efficiency (Micron) 2
  • Static Pressure (Wc.) 11-1/2
  • Sound Rating (Db.) 80 - 85
  • Bag Diameter (In.) 20
  • Collection Bag Capacity (Cu. Ft.) 5-3/10
  • Collection Bag Length (In.) 29
  • Filter Bag/Canister Length (In.) 25
  • Impeller Diameter (In.) 12
  • Impeller Material Steel
  • Velocity @ 4" (CFM) 13,745
  • 1-Hose Connection Diameter (In.) 6
  • 2-Hoses Connection Diameter (In.) 4
  • Motor Power (HP) 2
  • Motor Phase 3
  • Motor Voltage (V.) 230, 460
  • Prewired Voltage (V.) 230
  • Motor Current (Amps.) 6, 3
  • Height 39.0000
  • Length 37.5000
  • Weight 183.0000
  • Width 22.5000
  • Brand: Jet
  • Manufacturer Part Number: 710704K
  • Weight (lbs): 0.0000
  • Amps: 6/3.0
  • Sound Rating: 80 - 85 dB
  • Volts: 230
  • Height: 39"
  • Length: 37-1/2"
  • Width: 22-1/2"
  • Warranty: 5 Year
  • Capacity: 5.3 Cubic Feet
  • Flow Rate: 1200 CFM
  • Filter Type: Canister
  • HP: 2 HP
