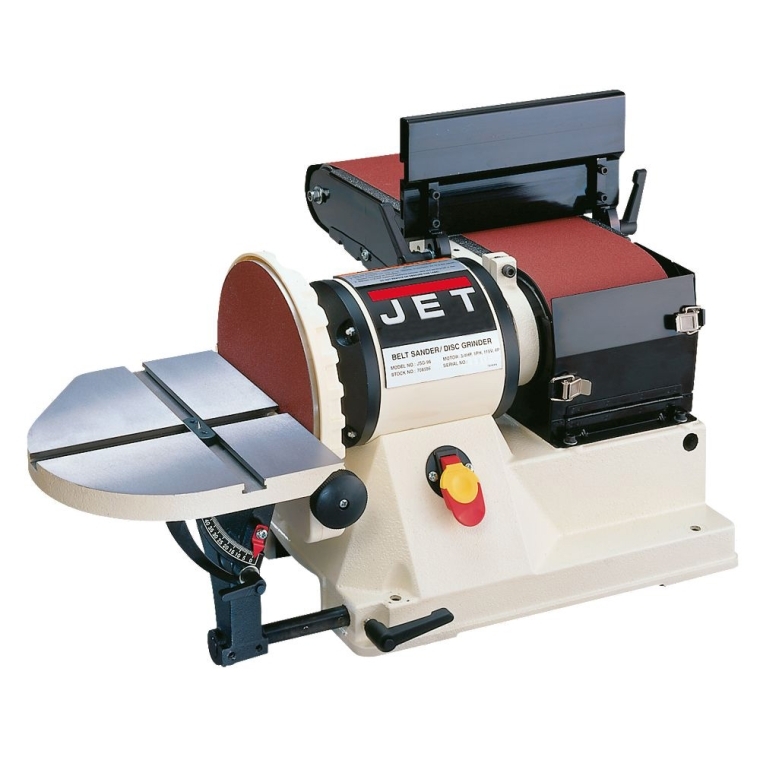

Jet JSG-96, Benchtop 6'' x 48'' Belt / 9'' Disc Sander, 3/4HP 1Ph, 115V Zoom

See it in action:

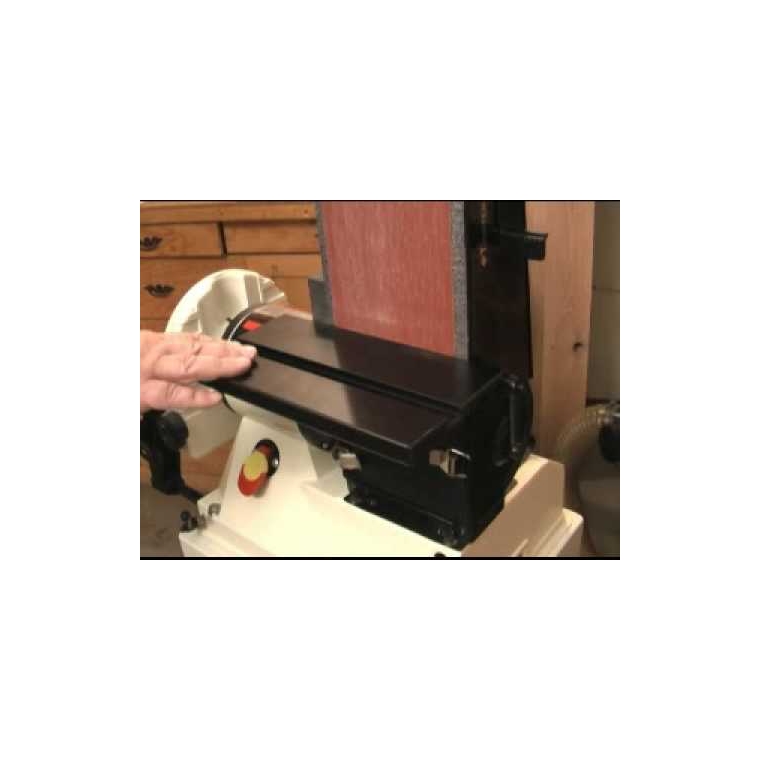

Jet JSG-96 Disc/Belt Sander Review

Jet JSG-96, Benchtop 6'' x 48'' Belt / 9'' Disc Sander, 3/4HP 1Ph, 115V

Item #: 21342
Direct Ship
$714.99
Each
Sign up for price alert Add to Wishlist Find in Store

* Required Fields

Overview

Jet JSG-96, Benchtop 6' x 48' Belt / 9' Disc Sander, 3/4HP 1Ph, 115V

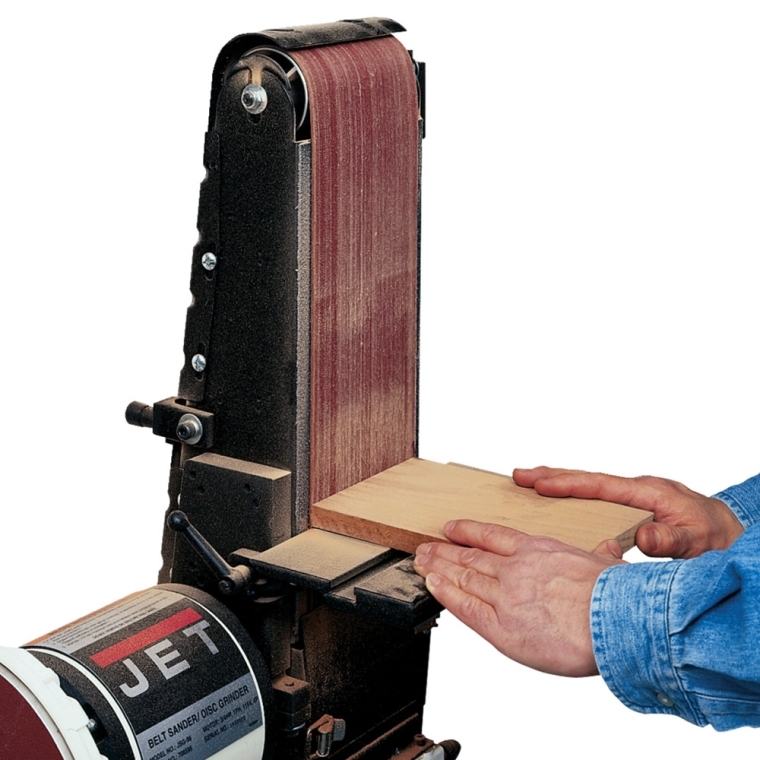

  • Large cast iron table has preset stops at 90 degrees and 45 degrees to let you use the belt sander vertically, horizontally or anywhere in between
  • EXCLUSIVE dual thumbscrew belt tracking adjustment locks to keep belt on track during use
  • Graphite covered steel platen runs cooler increasing machine and belt life
  • Specially designed belt guard allows full use of the 6" belt width and length
  • Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
  • Tracking adjustment knob with quick-lock handle keeps belt on track during use
  • Quick-release belt tension lever makes belt changes fast and easy
  • Quick-lock dust cover allows fast disc changes
  • Single 4" dust port on the back of the base collects dust effectively from both the belt and disc
  • Powerful 3/4HP motor easily handles the toughest sanding operations
  • Built-in handles for easier portability


Specifications:
  • Amps:11
  • Belt Size (L x W/in.):48 x 6
  • Belt Speed (SFPM):2258
  • Belt Table Size (L x W/in.):11 x 5-1/2
  • Belt Table Tilt (deg.):10 up, 45 down
  • Brand:Jet
  • Disc Diameter (in.):9
  • Disc Speed (RPM):1725
  • Disc Table Size (L x W/in.):12 x 7-1/2
  • Disc Table Tilt (deg.):10 up, 45 down
  • Dust Port Diameter (OD/in.):4
  • Family Description:COMBINATION 6" X 48" BELT / 9" DISC SANDER
  • Height:16.1inch
  • Length:28.2inch
  • Model Number:JSG-96
  • Motor HP:3/4HP
  • Motor Phase:1Ph
  • Motor Voltage:115V
  • Net Weight:100pound
  • Overall Dimensions:16 x 29 x 28-1/2
  • Part Number:708595
  • Prewired:115V
  • Ship Weight:131pound
  • Width:24.9inch

Important Notes

  • There is an additional $75.00 shipping charge for this item.
  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 15 business days.
  • 15% restocking fee on all returned merchandise.
  • The carrier will need to know if delivery is to a residential address (we'll ask you about that during checkout). There is no charge for this.
  • The delivery truck will need a lift gate if loading dock is not available. There is no charge for this.
  • Please call customer service before returning product.

Technical Details

  • Brand: Jet
  • Manufacturer Part Number: 708595
  • Weight (lbs): 0.0000
  • Belt Size: 48" x 6"
  • Belt Speed: 2258 SFPM
  • Disc Diameter: 9"
  • Disc Speed: 1725 RPM
  • Dust Collection: 4" Port
  • HP: 3/4 HP
  • Stationary Sander Style: Belt, Disc
