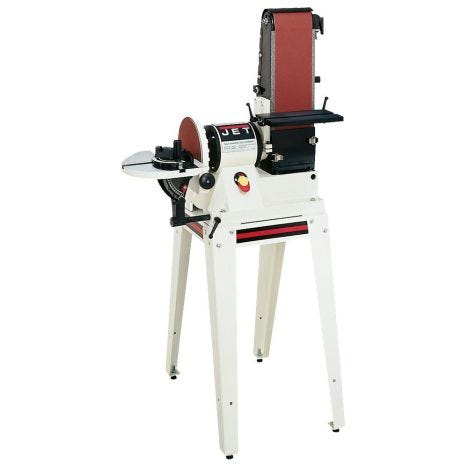

Jet JSG-96OS, 6'' x 48'' Belt / 9'' Disc Sander with Open Stand, 3/4HP 1Ph, 115V  Zoom

Jet JSG-96OS, 6'' x 48'' Belt / 9'' Disc Sander with Open Stand, 3/4HP 1Ph, 115V

Item #: 27630
$789.00
Each Direct Ship
  • There is an additional $75.00 shipping charge for this item.
  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 15 business days.
  • 15% restocking fee on all returned merchandise.
  • The carrier will need to know if delivery is to a residential address (we'll ask you about that during checkout). There is no charge for this.
  • The delivery truck will need a lift gate if loading dock is not available. There is no charge for this.
  • Please call customer service before returning product.

* Required Fields

Overview

Jet JSG-96OS, 6' x 48' Belt / 9' Disc Sander with Open Stand, 3/4HP 1Ph, 115V
  • Large cast iron table has preset stops at 90 degrees and 45 degrees to let you use the belt sander vertically, horizontally or anywhere in between
  • EXCLUSIVE dual thumbscrew belt tracking adjustment locks to keep belt on track during use
  • Graphite covered steel platen runs cooler increasing machine and belt life
  • Specially designed belt guard allows full use of the 6" belt width and length
  • Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
  • Tracking adjustment knob with quick-lock handle keeps belt on track during use
  • Quick-release belt tension lever makes belt changes fast and easy
  • Quick-lock dust cover allows fast disc changes
  • Single 4" dust port on the back of the base collects dust effectively from both the belt and disc
  • Powerful 3/4HP motor easily handles the toughest sanding operations
  • Built-in handles for easier portability
  • Heavy-duty steel open-style stand provides solid support


Specifications:
  • Amps:11
  • Belt Size (L x W/in.):48 x 6
  • Belt Speed (SFPM):2258
  • Belt Table Size (in.):11 x 5-1/2
  • Belt Table Size (L x W/in.):11 x 5-1/2
  • Belt Table Tilt (deg.):10 up, 45 down
  • Brand:Jet
  • Disc Diameter (in.):9
  • Disc Speed (RPM):1725
  • Disc Table Size (L x W/in.):12 x 7-1/2
  • Disc Table Tilt (deg.):10 up, 45 down
  • Dust Port Diameter (OD/in.):4
  • Family Description:COMBINATION 6" X 48" BELT / 9" DISC SANDER
  • Height:0inch
  • Length:0inch
  • Model Number:JSG-960S
  • Motor HP:3/4HP
  • Motor Phase:1Ph
  • Motor Voltage:115V
  • Net Weight:159pound
  • Overall Dimensions:16 x 29 x 28-1/2
  • Part Number:708596K
  • Prewired:115V
  • Ship Weight:159pound
  • Width:0inch

Tech Spec

Brand Jet
Manufacturer Part Number 708596K
Weight (lbs) 0.0000
Belt Size 48" x 6"
Belt Speed 2258 SFPM
Disc Diameter 9"
Disc Speed 1725 RPM
Dust Collection 4" Port
HP 3/4 HP
Stationary Sander Style Belt, Disc
