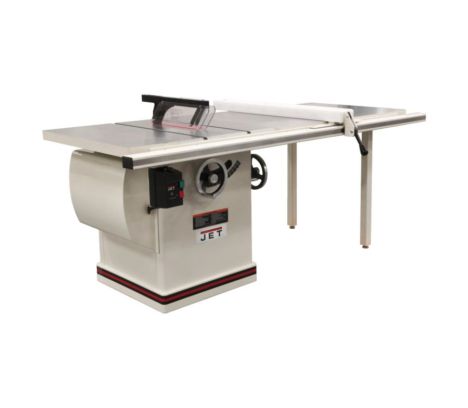

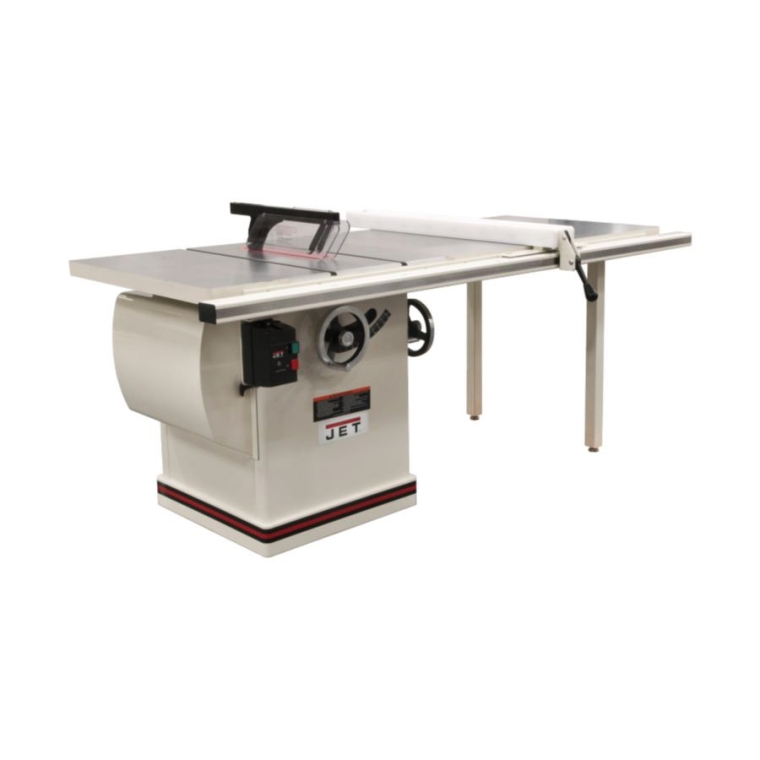

Jet JTAS-12-DX, 12" XACTA SAW, 5HP 1PH

Item #: 46743
Direct Ship
Sign up for price alert Add to Wishlist Find in Store



* Required Fields


With a riving knife and 80" of solid cast iron work surface, this saw will see you through all your projects. The weight of this machine ensures stability for smooth cutting operation. The JTAS-12-DX also features a maximum rip of 14" left of the blade, giving you more capacity. Dust collection is improved thanks to a collection shroud around the blade and an integrated hose. All of this is backed by JET's industry-leading 5-year warranty and knowledgeable customer service professionals.

  • Riving knife maintains close blade proximity to reduce chance of kickback
  • 80" of solid cast iron provides a massive work surface
  • Poly V-Belt increases efficiency and reduces slipping and vibration
  • Collection shroud around the blade and integrated hose improve dust collection
  • Integrated arbor lock is accessed from table top for rapid blade change
  • External tool storage for the fence and miter gauge
  • 40-1/2" fence provides greater stability and better support when ripping
  • Dado insert included
  • Maximum rip left of the blade is 14"
  • Removal of blade guard, pawls and riving knife takes only seconds

Important Notes

  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 15 business days.
  • 15% restocking fee on all returned merchandise.
  • The carrier will need to know if delivery is to a residential address. There is no charge for this
  • Please call customer service before returning product.

What's included

(1) Jet JTAS-12-DX, 12" XACTA SAW, 5HP 1PH

Technical Details

  • 5 Year Warranty
  • Style (Type)Cabinet
  • Blade Diameter (In.);12
  • Arbor Diameter (In.);1
  • Arbor Speed (RPM) 4,300
  • Maximum Depth of Cut (In.) 4
  • Maximum Depth of Cut at 45 Degrees (In.) 2-7/8
  • Maximum Rip Left of Blade (In.) 14
  • Maximum Rip Right of Blade (In.) 50
  • Maximum Diameter of Dado (In.) 8
  • Maximum Width of Dado (In.) 13/16
  • Table Type Cast Iron
  • Table Size (L x W) (In.) 31.5 x 24
  • Table Size with Extension (L x W) (In.) 31.5 x 80
  • Miter Gauge Type T-Slot with Stops
  • Dust Collection Minimum CFM Required (CFM) 350
  • Dust Port Outside Diameter (In.) 4
  • Motor Phase 1
  • Motor Voltage (V.) 230
  • Prewired Voltage (V.) 230
  • Motor Current (Amps.) 15.2
  • Height 42.0000
  • Length 86.0000
  • Width 32.0000
  • Brand: Jet
  • Manufacturer Part Number: 708546PK
  • Weight (lbs): 670.0000
  • Arbor Size: 1"
  • Dust Collection: 4" Port
  • HP: 5 HP
  • Maximum Depth of Cut: 4"
  • Dimensions: 31-1/2'' x 80''
