Jet JWBS-20-3 20'' Bandsaw, 3HP, 230V Zoom

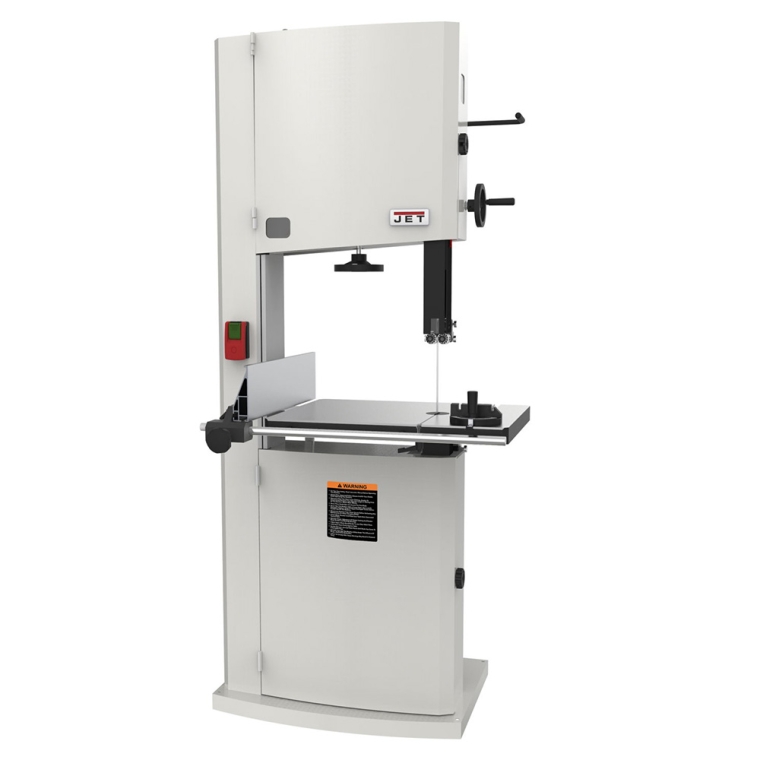

Jet JWBS-20-3 20'' Bandsaw, 3HP, 230V

Item #: 58363
Cut straight lines, curves and resaw your own veneers with the Jet 20'' Bandsaw, boasting width capacity of 20'' and resaw capacity of 16''.
Direct Ship
Sign up for price alert Add to Wishlist Find in Store



* Required Fields


Jet's 20'' bandsaws feature abundant resaw capacity, throat depth and power for tackling thick stock and tough hardwoods. Cut curves, straight lines and joinery with smooth edges, thanks to the heavy-duty cast-iron table and fence system, which helps to minimize vibration. A micro-adjust dial on the fence allows quick, accurate adjustments. The table has a miter slot for the included miter guage, and the guide post features a magnetic door on the front for easy blade changes. The large ball bearing guides are independently adjustable without tools to save you time on set up. Whatever your needs, Jet's line of steel frame bandsaws is engineered to meet them.


  • 16'' Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels

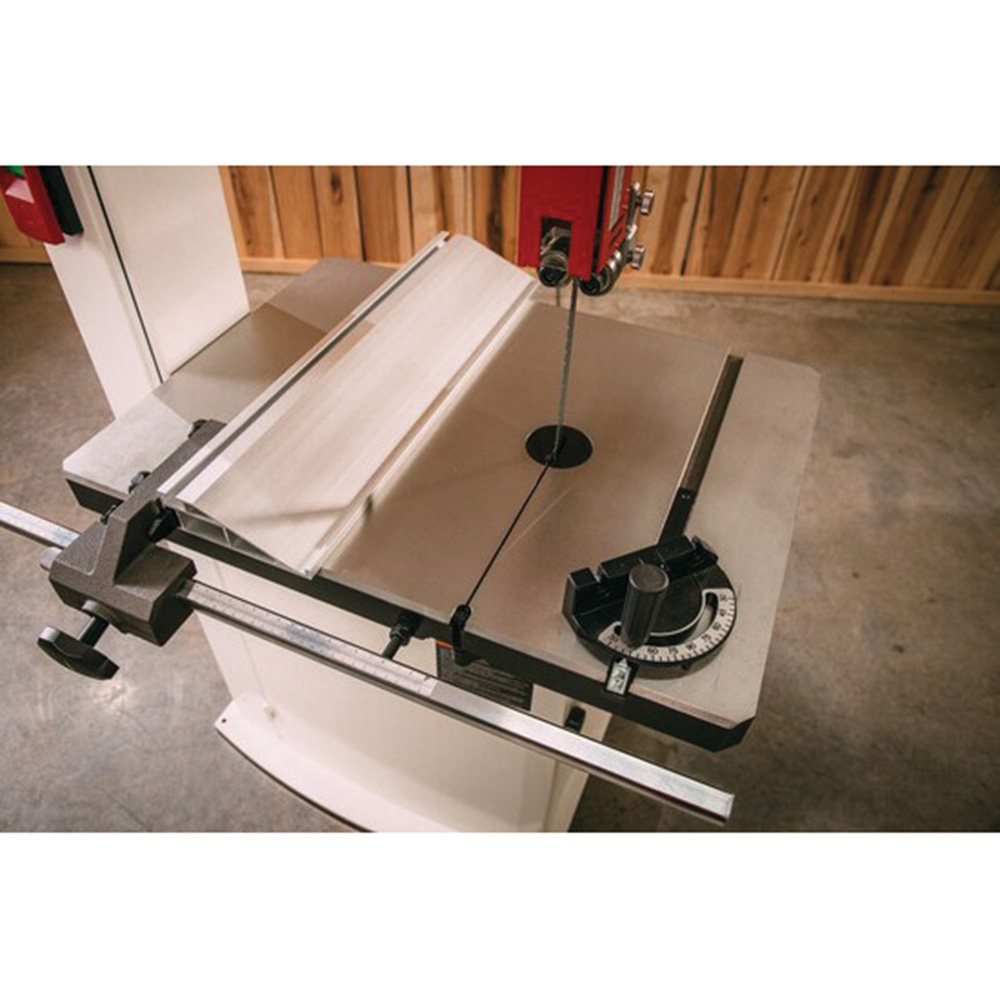

  • 27-1/4'' x 20'' precision ground cast iron table for added stability and work support
  • Fence system features a micro-adjustable, dual-position side plate
  • Upper and lower ball bearing guides are tool-free and independently adjustable

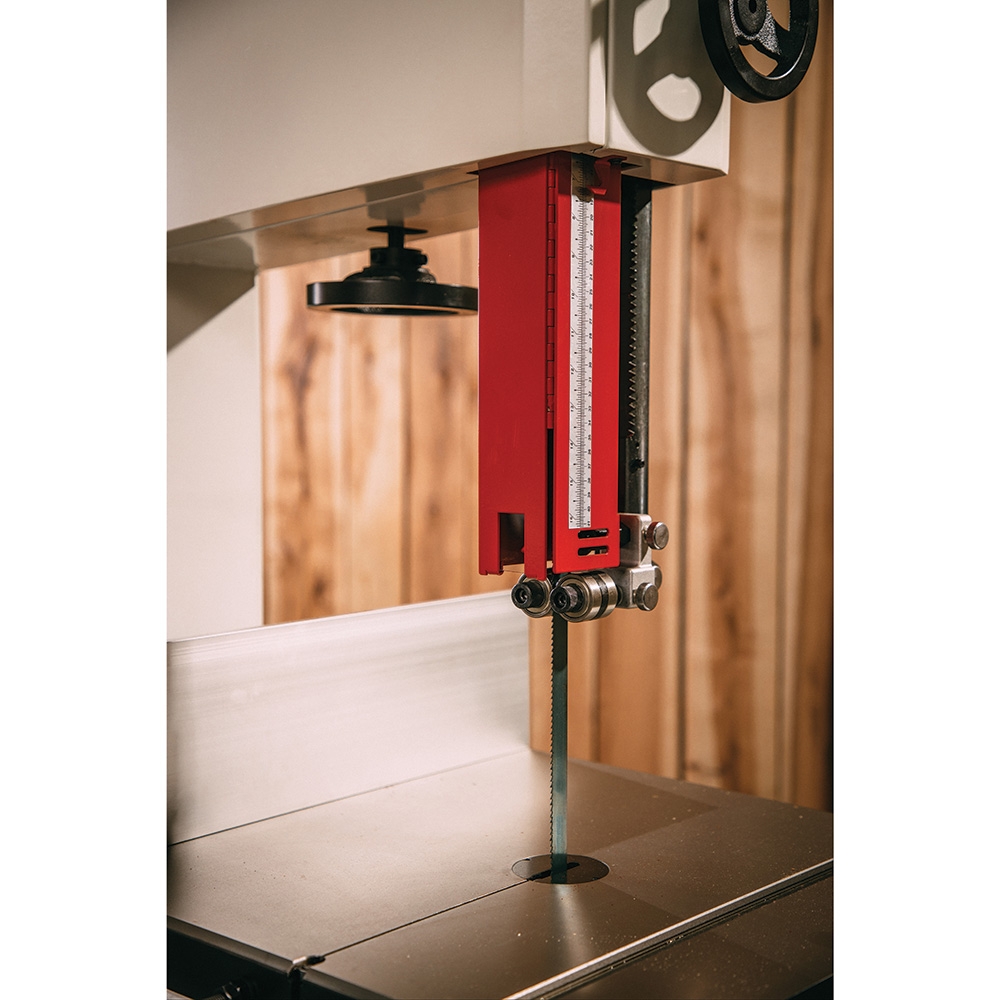

  • Rigid, four-sided guide post with rack and pinion adjustment for firm blade support
  • Blade tension scale is easily readable through upper viewing window
  • Easy, single knob blade tracking adjustments
  • Viewing window provides clear view of blade during tracking adjustments

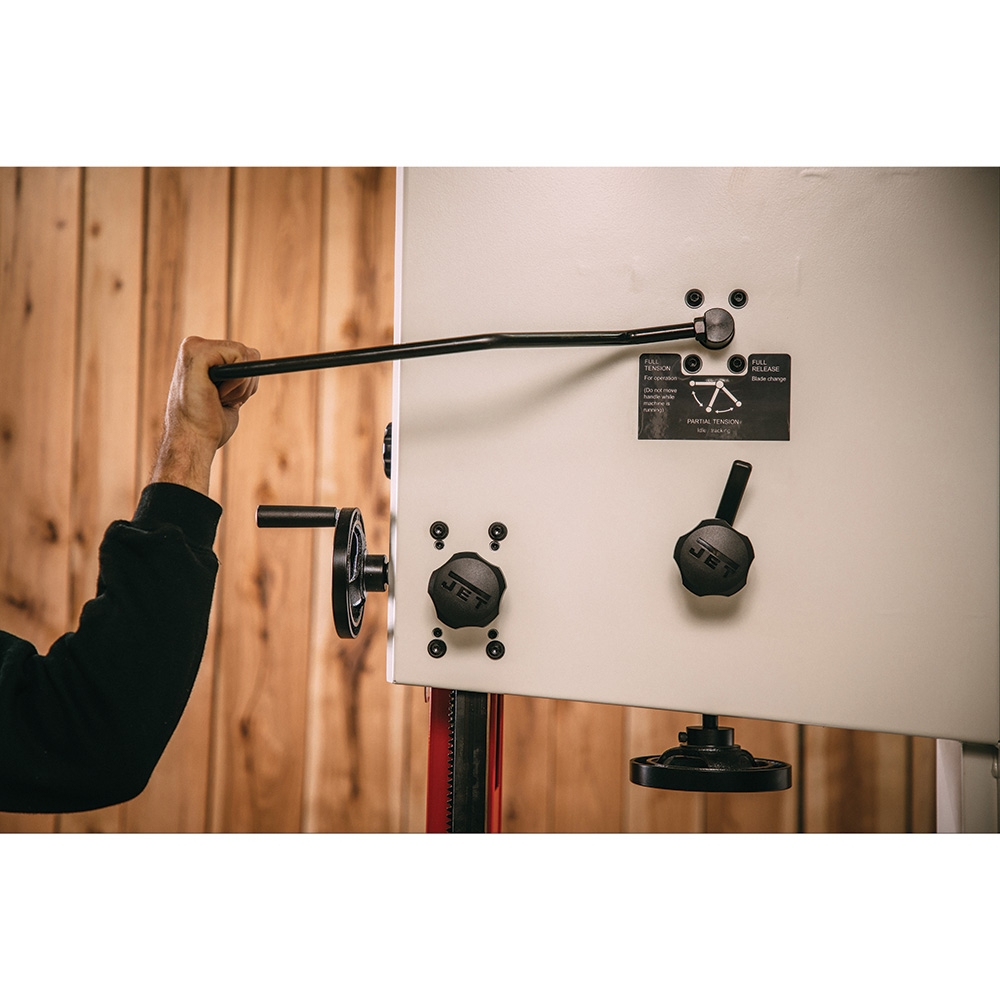

  • Heavy-duty blade tensioning mechanism with quick release and three settings: full tension, partial tension and full release
  • Cast iron trunnion for maximum support and minimum vibration
  • Slotted table allows for blade removal toward the front
  • Cast iron handwheels and ergonomically designed knobs for smooth, comfortable adjustments
  • Round table insert with leveling screws for perfect flushness with the table

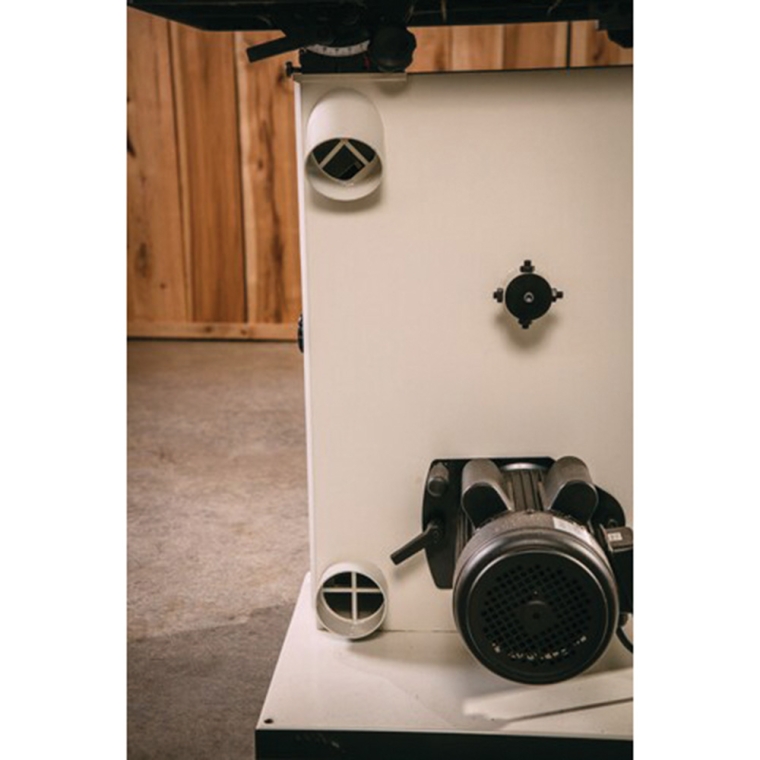

  • Conveniently located dual 4'' dust collection ports catch dust and chips at the source
  • Table tilts 5° left and 45° right to accommodate a wide variety of cuts

Important Notes

  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 7-10 business days.
  • Items shipped by truck are to be delivered to curbside only.
  • 15% restocking fee on all returned merchandise.
  • Please call customer service before returning product.

What's included

(1) Jet JWBS-20-3 20'' Bandsaw, 3HP, 230V
(1) Bandsaw Blade
(1) Rip Fence/Resaw Fence
(1) Miter Gauge

Technical Details

  • Band Saw Size/Wheel Diameter: 20-1/4''
  • Cutting Capacity Width: 20''
  • Cutting Capacity Height: 16''
  • Blade Length: 158''
  • Blade Speed (SFPM): 2530/4850
  • Table Size: 27-1/4'' x 20'' x 1-5/8''
  • Blade: 1'' x 3TPI
  • Maximum Saw Blade Width: 1-1/2''
  • Minimum Saw Blade Width: 1/8''
  • Table Tilt: 5° to 45°
  • Table Height from Floor: 37''
  • Dust Collection Minimum CFM Required: 400
  • Dust Port Outside Diameter: 4'' (x2)
  • Motor Power: 3HP
  • Motor Phase: 1
  • Motor Voltage: 230V only
  • Motor Amps: 12A
  • Recommended Circuit Size: 30A
  • Brand: Jet
  • Manufacturer Part Number: 714800
  • Weight (lbs): 588.0000
