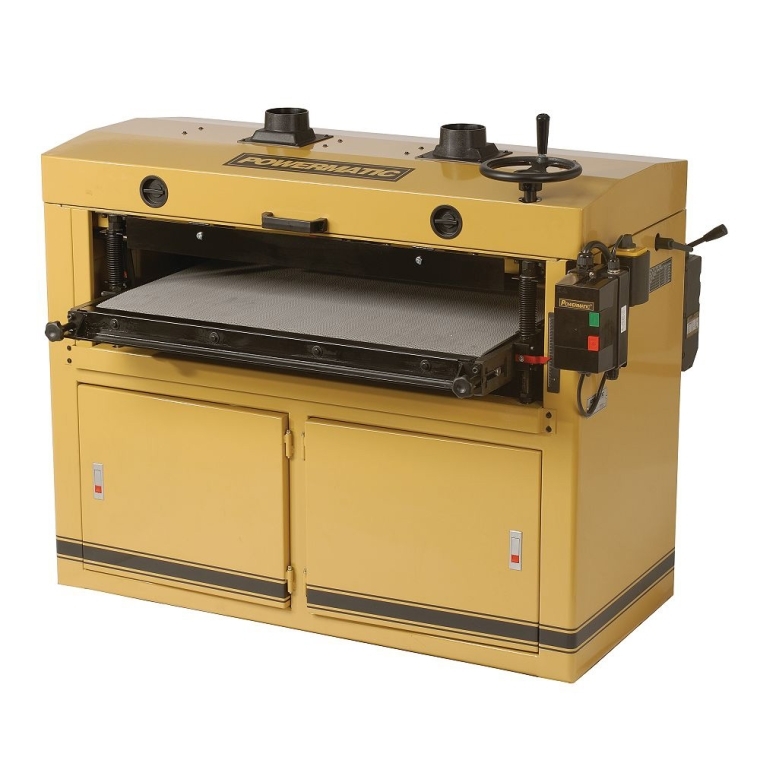

Powermatic DDS-237, 37'' Dual Drum Sander, 10HP, 3PH, 230/460V  Zoom

Powermatic DDS-237, 37'' Dual Drum Sander, 10HP, 3PH, 230/460V

Item #: 1002453
$6,558.99
Each Direct Ship
  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 15 business days.
  • 15% restocking fee on all returned merchandise.
  • The carrier will need to know if delivery is to a residential address (we'll ask you about that during checkout). There is no charge for this.
  • The delivery truck will need a lift gate if loading dock is not available. There is no charge for this.
  • Please call customer service before returning product.

* Required Fields

Overview

Powermatic DDS-237, 37' Dual Drum Sander, 10HP, 3PH, 230/460V
  • 10HP motor for plenty of power
  • Independently adjustable rear drum for fine tuning
  • Hard durometer rubber coating on steel drums provide flat, smooth finish
  • Two-speed gearbox for wide range of sanding projects
  • Full size cast iron table for solid support
  • Forward/reverse poly conveyor belt grips stock evenly
  • Dual dust ports with directional baffles for more efficient dust removal
  • Standard Equipment:
  • Two speed gearbox
  • Dual 4" dust ports
  • Sandpaper installed on drums
  • Tool kit


Specifications:
  • Brand:Powermatic
  • Conveyor Motor (HP):1/4HP 3PH
  • Drum Diameter (in.):6
  • Drum Length (in.):37
  • Drum Speed (RPM):1700
  • Dual Dust Port Diameter (OD/in.):two @ 4"
  • Dust Collection Minimum CFM Required:1200
  • Height:45inch
  • Length:60inch
  • Maximum Board Thickness (in.):5-1/4
  • Maximum Board Width (in.):37
  • Minimum Board Length (in.):9
  • Minimum Board Thickness (in.):1/32
  • Model Number:DDS-237
  • Motor HP:10HP
  • Motor Phase:3PH
  • Motor Voltage:230/460V
  • Net Weight:990pound
  • Overall Dimensions:60 x 45 x 45
  • Part Number:1791321
  • Prewired:230V
  • Sanding Drums (number of drums):2
  • Ship Weight:1142pound
  • Width:45inch

Tech Spec

Brand Powermatic
Manufacturer Part Number 1791321
Weight (lbs) 1142.0000
Dust Collection 4" Dual Port
HP 10 HP
Stationary Sander Style Drum Sander
