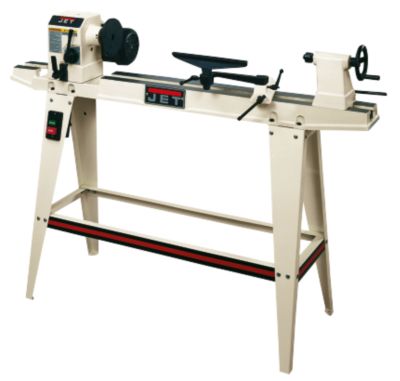

12" X 36" WOODWORKING LATHE
- Specially designed and built exclusively by JET®
- Heavy-duty cast iron lathe bed ensures stability and minimal operating vibration
- Heavy-duty cast iron headstock and tailstock provide rigidity, strength and years trouble-free operation
- Hollow tailstock allows long hole boring
- Pivoting headstock quickly turns 90 degrees and locks to facilitate outboard turning
- Specially designed bed allows easy positioning of outboard turning tool rest
- Variable speed spindle has six pre-positioned selections with positive detents
- Heavy-duty single phase induction motor equipped with industrial controls
- Quick lock control levers easily position the tool rest
- Spindle indexing capabilities
STANDARD EQUIPMENT
- Open-style rigid stand
- 12" tool rest
- 6" face plate
- Spur center
- Live center
- Face shield
- Tooling knockout
|
Stock No. |
708352 |
|
Model |
JWL-1236 |
|
Swing Over Bed (In.) I |
12 |
|
Swing Over Tool Rest Base (In.) |
8-3/4 |
|
Distance Between Centers (In.) |
34-1/2 |
|
Outboard Turning (In.) |
Up to 16-1/2 |
|
Speeds (RPM) |
Six, 550 -3,000 |
|
Spindle Nose (In x TPI) |
1x8 |
|
Hole Through Spindle
(In.) |
3/8 |
|
HeadstockTaper |
MT-2 |
|
Tailstock Taper |
MT-2 |
|
Hole Through Tailstock (In.) |
3/8 |
|
Ram Travel (In.) |
2-1/4 |
|
Center Line to Floor (In.) |
41 |
|
Overall Dimensions
(LxWxH/in.) |
60x17x44 |
|
Motor (TEFC) |
3/4HP, IPh, 115V Only |
|
Net Weight ((Lbs.)) |
183 |
OPTIONAL EQUIPMENT
|
Stock No. |
Description |
|
708177 |
Mobile Base |
|
| |
Customer Reviews and Photos for:
JET - JWL-1236, 12'' x 34-1/2'' Wd Lathe w/Stand, 3/4HP, 1Ph, 115/230V
|
Average Rating:
(3.0)
(2 customer reviews)
Add your review...
|
|
|
1) Submitted by
Joshua Ellison, from Lakewood, CO
on 10/1/2008
Customer Rating:
I've owned a Jet 1236 for about six months now, and I've really enjoyed using it. The only things I would change are the height (I recommend building your own base to raise it up a tad if you're over 5' 8"), and the solid faced manual rotation handle (you have to remove it to be able to pop out a taper jig). Aside from those two things, it has done everything I need it to do.
|
|
2) Submitted by
Dean, from St. Louis, MO
on 10/6/2006
Okay beginner's lathe. Works better if you replace the belt with a link belt, and put a piece of plywood and make a shelf to put 100 lbs. of sand on the legs. Keep an eye out for the head stock and tail stock getting out of alignment -- pretty common. Other than that, I've had the lathe for over 5 years and it had turned all sorts of stuff.
|
