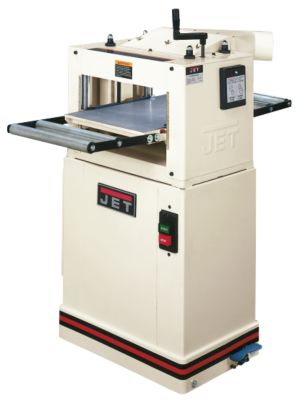

The JET JPM-13CS 13" Closed Stand Planer / Molder boasts a 1.5 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.
  • Cast iron table and base provide strength and reduce vibration during use
  • Four precision-ground column design feature adds stability when raising and lowering the table
  • Three cutter head design produces a superior finish in either application
  • Two speed gear box has feed rates set for optimum planning and molding results
  • Molding cutter head accommodates over 40 standard molding cutter sets; most 2" or smaller heads can be installed without removing the planning knives to save you set-up time
  • Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
  • Top-mounted height adjustment handle is easy to use for quick table height changes
  • Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
  • Exclusive angled 4" dust port keeps the dust hose out of the way while providing efficient chip and dust removal
  • Built-in lockable casters add support and stability to machine while in use

Bookmark and Share
Untitled Document
Product Specifications
Model Number JPM-13CS
Brand Jet
Height 41"
Width 24"
Length 25"
Net Weight 258 lbs
Maximum Planing Width 13"
Maximum Planing Thickness 6-1/8"
Minimum Planing Length 14"
Cutterhead Speed 4500 RPM
Cutterhead Diameter 2-9/16"
Cuts Per Minute 13500
Feed Rate - Planing 20 FPM
Feed Rate - Molding 10 FPM
Number of Knives 3
Dust Port Diameter 4"
Motor Power 1-1/2 HP
Motor Voltage 115/230 V
Prewired Voltage 115 V
Motor Current 15/7.5 A
Motor Phase 1 Ph


Standard Equipment

  • Knife-setting gauge for planing
  • Knife-setting gauge for molding
  • Adjustment tools
Planing
  • Three-knife cutterhead design produces a superior planed finish
  • Cutterhead features knife jacking screws for easy, accurate adjustment
Molding
  • Three-cutter design and extra slow feed rate produce ready-to-use molded stock
  • Most 2" or under cutters can be installed without removing the planing knives
  • Over 40 standard molding cutter sets are available. Custom made cutter sets are also available for a wide variety of applications
  • Special gauge is included to assist in proper setup of molding cutters
Elliptical/Curve Molding Jig
  • Stock No. 708370 (Sold Separately)
  • The table is made of a durable high density plastic with a low drag coefficient and sealed ball bearings
  • Fast, easy setup. Adjust for ellipses and radius moldings from straight to 18" radius
  • Enables you to make your own moldings simply and profitably
  • Designed exclusively for the JET planer/molder


Technical Documents
Bookmark and Share

Customer Reviews and Photos for:
Jet® 13'' Planer/Molder with Closed Stand

Average Rating:
Customer Review Rating: 4.0
4.0
(1 customer review)
$1,119.99

Add your review...
1) Submitted by Tim Mattern, from Central Point, OR on 12/16/2012
Customer Rating: Customer Review Rating: 4.0

The planer moulder works as expected. Having 2 speed feed rate helps. I have found that the faster rate works very well and hardly ever use the slower feed rate. Having 3 blades makes it a lot more expensive to buy and doesn't seem to do that much better than the 2 blade machines. I would have to think a long time before I bought one again. I have never used the moulder part of the unit. So I maybe wasted some money on that part of the unit. Yet all in all it a very good unit, having caused no problems at all. Much better than the 2 blade units that I have used in the past.
