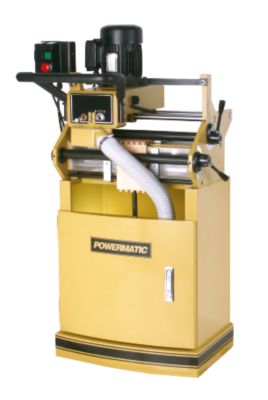

Powermatic® Manual Dovetail Machine

The POWERMATIC® DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.

• Four centerlines - 1", 1-1/2", 2" and 2-1/2" - create a custom appearance
• Manual eccentric clamping will keep boards firm
• Eccentric spindle collet for resharpened cutters
• Spring loaded carriage makes for smooth, effortless dovetail cutting
• Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
• Extra large soft grip handle provides positive control and comfort
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
• Visual stylus and template aid in guiding the carriage
• Material stops provide convenient positioning of the workpiece
• Cast iron and steel construction for added stability and durability
• 1HP motor transfers plenty of power via the drive belt to the spindle

Product Specifications Powermatic Part Number 1791304 Model Number DT45 Brand Powermatic Motor Power 1 HP Motor Phase 1 Ph Motor Voltage 115 V Prewired Voltage 115 V Minimum Work Piece Size (L x W) 7-7/8" x 2-3/8" Maximum Work Piece Size (L x W) 31" x 11" Minimum Dovetail Height 3" Maximum Dovetail Height 3" Minimum Front Thickness 1" Maximum Front Thickness 9" Minimum Side Thickness 1" Maximum Side Thickness 9" Number of Spindles 1 Spindle Speed 18500 RPM Center to Center Dovetail Spacing 1", 1-1/2", 2" and 2-1/2" Table Height from Floor 35" Dust Port Outside Diameter 2-1/2", 4" rear Dust Collection Minimum CFM Required 500 cu.ft/min Height 61" Width 33" Length 33" Net Weight 320 lbs. Standard Equipment: Four-sided template Workstops Tool kit Dovetail bit Dust chute with hose

711732 Instruction Manual
