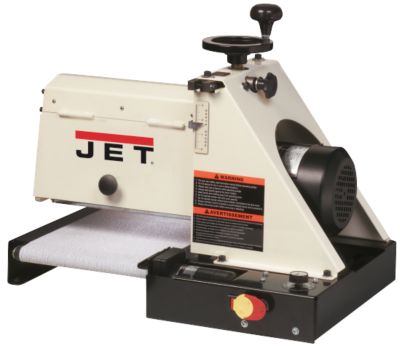

Jet® Benchtop Sander 1HP

This compact benchtop sander from JET may be small on size, but it's big on performance. The powerful 1HP motor will sand boards up to 3" thick and 20" wide; while the aluminum sanding drum is self-cooling to protect the sanding surface from heat damage. Whether you are a hobbyist or a craftsman who is just tight on shop space, this workhorse is sure to solve your sanding needs.

• Infinitely variable-speed control produces the ultimate finish at a rate from 0 to 12 feet per minute and prevents machine overload
• Patented conveyor belt Trackers™ dramatically reduce the need for manual belt adjustments
• Precision-machined and balanced extruded aluminum drum is self-cooling to protect the surface being sanded from heat-damage
• Sealed and permanently lubricated drum ball bearings for longer life
• Precision-flattened reinforced steel conveyor bed and no-give power feed belt provide a constant smooth sanding action for better results
• Adjustable drum height and downward pressure feature virtually eliminates snipe
• Cast-iron handwheel adjusts height at 1/16" per turn for precise sanding thickness control
• Patented abrasive take-up fasteners make changing abrasives quick and easy
• On/off switch with overload protection is front-mounted for operator's convenience
• One feed and one drive motor for superior sanding control
• Continuous-duty, 1HP motor is designed for heavier use for longer periods of time

Product Specifications Model Number 10-20 PLUS Brand Jet Height 20" Width 20" Length 27" Net Weight 104 lbs. Style Benchtop Maxiumum Board Width 20" (2 passes) Minimum Board Length 2-1/4" Maxiumum Board Thickness 3" Minimum Board Thickness 1/32" Drum Diameter 5" Drum Length 10" Drum Speed 1700 RPM Conveyor Speed 0 - 12 SFPM Conveyor Motor 43 in-lbs torque, direct drive Dust Port Outside Diameter 4" Motor Power 1 HP Motor Voltage 115 V Prewired Voltage 115 V Motor Current 7 A Motor Phase 1 Ph Standard Equipment One 80 grit abrasive strip One 100 grit abrasive conveyor belt TRACKERS™ Variable speed conveyor TUFTool 4" dust port

28132 - Instruction Manual

Customer Reviews and Photos for: Jet® Benchtop Sander 1HP Average Rating: 3.3 (4 customer reviews) $764.99 Add your review...

1) Submitted by Frank Bonthron, from Antioch, CA on 1/12/2007 I purchased one used, It performs beyond my expectations, I have used it to straighten end grain butcher block cutting boards, I only had 150 grit paper and gave it a try, what took hours with a random orbit sander was accomplished in about 1/2 hour. It took some time to dial in [my bought used] sander, the conveyor belt would not track, I removed the belt and turned it end for end, cleaned and lubed, adjusted and it works, even using the open end feature of wider boards in two passes. I would recommend this product.

2) Submitted by Rich Teague, from Richmond, VA on 10/13/2008 Customer Rating: I have had this sander for a couple weeks now and have put it through it's paces. It does what it is supposed to do, and that is sand, and it does it well. Having a dimension sander is a real treat. I haven't had the trouble with the conveyor belt, spent a little time when I first got it adjusting, and it seems to be holding well. My complaint would be in changing the sanding papers. The tool they give you to help with this is not easy to place. Then once loaded you have to re-tension the belt after a few runs, as it stretches as it warms up. I wish it were a hook and loop type system. You have to go to finer grits as you would in hand sanding, and it slows you down a lot to have to change the paper. The other area that could be improved on is the dust collection. Sawdust leaks from all the openings, despite being connected to a dust collector. That said, I really do enjoy having this in my shop, and would not steer anyone away from considering purchasing one.

3) Submitted by Richard Zaccone, from Glencoe, IL on 6/7/2010 Customer Rating: The fit and finish of this machine is quite good. My primary complaint is the User Manual and the manufacturers website; both leave a lot to be desired regarding additional help or product support. The manual is skimpy and the info on changing sand paper is woefully inadequate. I agree that the provided tool to aid in installing the sand paper roll is of very poor design. In fact, the one specific area that does involve using your hands is limited to about an inch and a half of clearance! Changing rolls is a real pain! I would NOT recommend this device.

4) Submitted by Hank Druckerman, from Bluffton, SC on 6/25/2008 Customer Rating: I am quite pleased with the overall performance of the Jet 10-20 Drum Sander, with the single exception of what appears to be an almost universal complaint. The tracking of the conveyor belt is difficult to keep aligned. I have now completed twelve of The New Yankee Workshop's Adirondack Chairs using the Jet 10-20 Drum Sander. It took the druggery out of sanding the hundreds of individual pieces of Cypress. For the home workshop this is a worthwhile investment.
