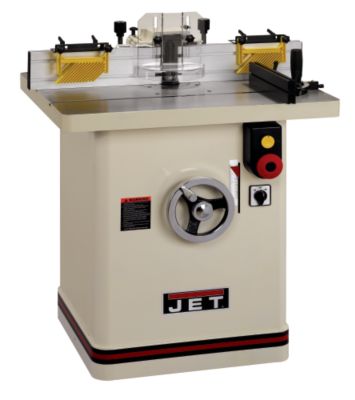

Jet® Industrial 5HP Shaper

This heavy-duty JET Shaper is available with a powerful 5HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

• Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
• Powerful 5HP, 1Ph motor with magnetic controls
• Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
• Large 26-3/4" X 32-1/4" precision ground cast iron table provides a durable work area, predrilled for power feeder
• Poly-V-belt transfers maximum power to the spindle
• Starting Pins for irregular shaping
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• Reversible spindle speeds for diverse shaping jobs
• 4" Dust port built into fence for convenient hookup to any dust collection system
• Spindle lock for safe and easy cutter set-up
• Spindle height scale

Product Specifications Model Number JWS-35X5-1 Brand Jet Height 41" Width 40" Length 30" Net Weight 473 lbs Spindle Speed 4000, 6000, 8000, and 10000 RPM Reversible Yes Spindle Diameter 1-1/4" Spindle Travel 4" Table Size 26-3/4" x 32-1/4" Table Height from Floor 33-1/4" Table T-Slot 3/4" x 3/8" Table Opening Diameter 6-19/64" Table Insert Opening Diameter 2-9/16" and 4-5/16" Fence Size (L x H) 4-3/4" x 16" Fence Travel (Major/Minor) 4" and 1" Table Inserts 2 Max. Diameter Cutter Below Table 6" Max. Diameter Cutter Above Table 7-1/2" Router Bit Collet Diameter 1/4" and 1/2" Dust Port Outside Diameter 4" Dust Collection Min. CFM Required 400 cu.ft/min Electrical Controls - Magnetic Starter Yes Motor Power 5 HP Motor Voltage 230 V Prewired Voltage 230 V Motor Current 17 A Motor Phase 1 Ph

1002631 - Instruction Manual
