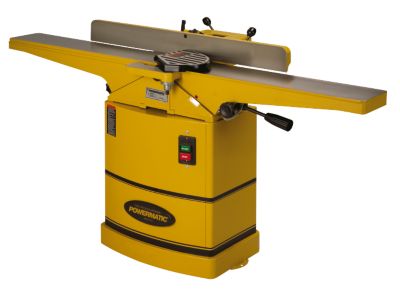

Powermatic® 6'' Jointer w/Helical Cutterhead

Powermatic® 6'' Jointer w/Helical Cutterhead

Scoll Down to Order

Average Rating: Customer Review Rating: 3.0  (1 customer review)




View Larger Image View Product Video
Rockler Advantage
View Product Demonstration Video


  • Overview
  • More Info
  • Reviews
  • Videos
Bookmark and Share
This 6" Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
  • Helical cutterhead with four-sided knife inserts provides smoother, quieter cutting and finer finish than conventional systems
  • 66" long adjustable infeed and outfeed tables provide more working surface
  • Fine/quick adjustment lever on infeed table for precision cuts
  • Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
  • Enlarged sheet metal stand provides a sturdy base
  • 1HP motor offers plenty of power
  • Fence controls are center-mounted for convenience
  • Push button switch is lockable to prevent accidental starting
  • 4" port for dust collection

Bookmark and Share
Untitled Document
Product Specifications
Powermatic Part Number 1791317K
Model Number 54HH
Brand Powermatic
Height 37.5"
Width 24"
Length 66"
Net Weight 317 lbs.
Cutting Capacity (W x D) 6" x 1/2"
Cutterhead Speed 6000 RPM
Number of Knives
(Helical/Standard)
40 four-sided
knife inserts
Standard Knife Size (L x W x T) 0.59" x 0.59" x 0.10"
Table Height 31-1/2"
Table Size (L x W) 66" x 7-1/4"
Infeed Table Length 32-1/2"
Outfeed Table Length 32-1/2"
Fence Size (L x H) 38" x 4"
Fence Tilts 45 deg. left, 45 deg. right
Fence Positive Stops -45 deg, 45 deg., 90 deg.
Dust Port Outside Diameter 4"
Dust Collection Minimum
CFM Required
800 cu.ft/min
Motor Power 1 HP
Motor Phase 1 Ph
Motor Voltage 115/230 V
Prewired Voltage 115 V
Motor Current 13/6.5 A


Standard Equipment:

  • 1HP TEFC Motor
  • Two push blocks
  • Dust collection port
  • Cutterhead guard
  • Industrial push-button switch


Technical Documents
Bookmark and Share

Customer Reviews and Photos for:
Powermatic® 6'' Jointer w/Helical Cutterhead

Average Rating:
Customer Review Rating: 3.0
3.0
(1 customer review)
$1,429.99

Add your review...
1) Submitted by Chris, from Orem, UT on 3/11/2013
Customer Rating: Customer Review Rating: 3.0

This helical head jointer works very well, as advertised - until you try to cut a rabbet with it. Though the outfeed table includes a rabbit groove, the inserts do not go all the way to the edge of the cutter head,so it is impossible to make a rabbit cut. I use this type of cut if my boards are slightly over 6" wide during a flattening operation. This helical head won't alow this operation , unlike the sraight knife version jointer. A great disappointment from a company like Powermatic. Their "solution" when I talked to them - "switch back to the reqular straight knives". This eliminates the benefit of the HH set-up. The loss of this feature has been a constant source of frustration.


Order this Item
  • Note: Direct Ship Item -- Shipped directly from manufacturer
  • Must be shipped within 48 Contiguous United States
  • The carrier will need to know if delivery is to a residential address (we'll ask you about that during checkout). There is no charge for this.
  • The delivery truck will need a lift gate if loading dock is not available (we'll ask you about that during checkout). There is no charge for this.
  • Estimated Delivery time: 15 business days.
  • 15% restocking fee on all returned merchandise. Please call customer service before returning product.
Quantity Item Number Item Stock Status Price
39886 Powermatic 6'' Jointer w/Helical Cutterhead (54HH)(1791317K)
There is an additional $85.00 shipping charge for this item.

This item is shipped directly from the manufacturer.
Direct Ship
Online Only
$1,429.99 EA
