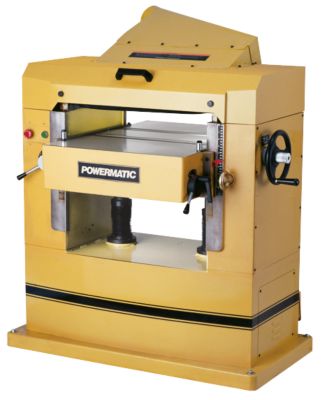

Powermatic 201 Planer, 7.5HP 1PH 230V
  • Cast iron 1300 lb. construction for solid performance without vibration
  • 2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
  • Segmented infeed roller with sectional chipbreaker allows multiple board planing
  • 4-knife head offers 19,200 cuts per minute and widest capacity in its class
  • Roller bearing-mounted feed rollers for long life
  • Adjustable bed rollers allow smooth feeding of rough or finished workpieces
  • Oversized cast iron table travels on 2 large lead screws for heavy duty support
  • Standard Equipment:
  • Dust collection chute with 5" port
  • Adjustable foot pads
  • Knife setting gauge
  • Tool kit (6, 8, and 10mm wrenches, 12-14mm, and 22-24mm combination wrenches)

Bookmark and Share
Specifications:
  • Bed Rollers Adjustable from Front: 2
  • Brand: Powermatic
  • Cuts Per Minute: 19,200
  • Cutterhead Diameter (in.): 3-1/4
  • Cutterhead Speed (RPM): 4800
  • Dust Collection Minimum CFM Required: 900
  • Dust Port Diameter (OD/in.): 5
  • Feed Rate (FPM): 20 and 30
  • Height: 59 inch
  • Infeed Roller Diameter (in): n.a.
  • Length: 42 inch
  • Maximum Depth of Cut (in.): 3/16
  • Maximum Full Width Depth of Cut (in.): n.a.
  • Maximum Opening (in.): n.a.
  • Maximum Planing Thickness (in.): 9-1/4
  • Maximum Planing Width (in.): 22
  • Minimum Planing Length (in.): 10
  • Model Number: 201
  • Motor HP: 7-1/2HP
  • Motor Phase: 1Ph
  • Motor Voltage: 230V
  • Movement - Horizontal (in.): n.a.
  • Movement - Vertical (in.): n.a.
  • Movement - Vertical (in.): n.a.
  • Net Weight: 1350 pound
  • Number of Knives: 4
  • Number of Speeds: two
  • Outfeed Roller Diameter (in): 3
  • Overall Dimensions: 42 x 49 x 59
  • Part Number: 1791261
  • Planing Thickness Range (in.): n.a.
  • Prewired: n.a.
  • Range of Speeds (FPM): n.a.
  • Readout Scale: mm/in
  • Rollers (in.): n.a.
  • Rotation (Forward/Reverse): n.a.
  • Segmented Infeed Roller Diameter (in.): 3
  • Ship Weight: 1430 pound
  • Swing (deg.): n.a.
  • Table Height Adjust Manual: 1 Turn = 1/16
  • Table Size (in.): 32-1/4 x 24
  • Table Support: 2-column
  • Tool Supplied: Yes
  • Width: 49 inch

Bookmark and Share

Customer Reviews and Photos for:
Powermatic 201 Planer, 7.5HP 1PH 230V

Add your review...
There are no customer reviews or photos for this product yet. If you have used this product, please click here and tell us about it. If you've used this product in a project, we'd love to see a photo of your finished project. You can post that here as well.

Order this Item
  • Note: Direct Ship Item -- Shipped directly from manufacturer
  • Must be shipped within 48 Contiguous United States
  • The carrier will need to know if delivery is to a residential address (we'll ask you about that during checkout). There is no charge for this.
  • The delivery truck will need a lift gate if loading dock is not available (we'll ask you about that during checkout). There is no charge for this.
  • Estimated Delivery time: 15 business days.
  • 15% restocking fee on all returned merchandise. Please call customer service before returning product.
Quantity Item Number Item Stock Status Price
1002443 Powermatic 201 Planer, 7.5HP 1PH 230V (1791261)
This item is shipped directly from the manufacturer. 		Direct Ship
Online Only 		$6,259.99 EA
