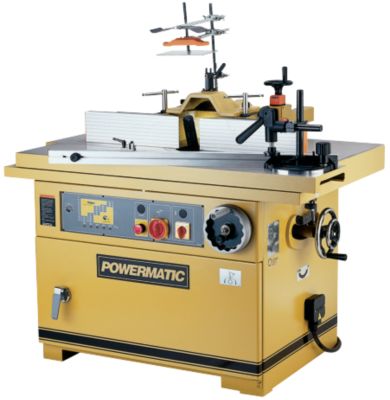

Powermatic TS29 Shaper, 7-1/2HP 3PH 230/460V with Sliding Table

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.

• Sliding table with 4-foot stroke works with miter head, hold-down and fence to accomodate everything from multiple end cuts to tenons
• Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
• Large table with built-in slider with room for stock feeder
• 7" vertical spindle travel allows stacked tooling
• Spindle tilts negative 5 degrees to positive 45 degrees for increased versatility
• Large diameter multiple table inserts accomodate virtually any size cutter
• Five spindle speeds in forward and reverse with lighted indicator

Specifications: Brand: Powermatic Dust Collection Minimum CFM Required: 800 Dust Port Diameter (OD/in.): 5 (dual ports) Electrical Controls - Magnetic Starter: 24V Magnetic Fence Size (L x H/in.): 46 x 5 Fence Travel (Major and Minor/in.): 5-3/8 and 3-5/8 Height: 53 inch Length: 51 inch Maximum Diameter Cutter Above Table (in.): 12 Maximum Diameter Cutter Below Table (in.): 9 Model Number: TS29 Motor HP: 7-1/2HP Motor Phase: 3PH Motor Voltage: 230/460V Net Weight: 1100 pound Overall Dimensions: 51 x 44 x 53 Part Number: 1791284 Prewired: Prewired 230V Reversable: Yes Router Bit Collet Diameter (in.): 1/4 and 1/2 Ship Weight: 1280 pound Slide Table Size (in.): 11-1/4 x 51-1/4 Spindle Diameter (in.): 3/4, 1, and 1-1/4 Spindle Size Under Nut (in.): 3/4 Spindle - 3-1/2, 1 Spindle - 6-1/4, 1-1/4 Spindle - 6-1/4 Spindle Speed (RPM): 3000, 4000, 6000, 8000, and 10,000 Spindle Travel (in.): 7 Table Inserts: one tilting, two straight Table Size (in.): 51-1/2 x 33-1/2 Table T-Slot (in.): n.a. Table Travel (in.): 49-1/4 Tilting Spindle (deg.): 5 degrees back, 45 degrees forward Width: 44 inch
