- EXCLUSIVE 50'' commercial XACTA® Fence II with T-square design
- Cast iron wings to increase work surface and support area
- Three matched V-belts deliver full power to the blade
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- One-piece closed stand channels dust through a 4'' port for fast, clean dust collection
- Hinged motor cover on cabinet gives quick access to the motor and belts

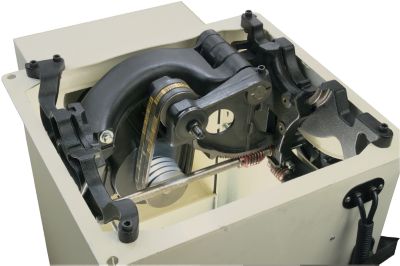

- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Built-in 4'' port for dust collection
- See-through blade guard with splitter and anti-kickback pawls helps protect operator while giving a clear view of the material being cut
- Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
- Miter gauge with adjustable positive stops for accurate mitering
- Powder coated paint for a long-lasting, chip-resistant finish
- Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning
- XACTA® LIFT enables you to have a shaping center right on your table saw
- 5 Year Warranty
Untitled Document
| Product Specifications |
| Jet Part Number |
708663RXK |
| Model Number |
JTAS-10XL50-1XLK |
| Brand |
Jet |
| Gross Weight |
545 lbs. |
| Blade Diameter |
10" |
| Arbor Diameter |
5/8" |
| Arbor Speed |
4200 RPM |
| Maximum Depth of Cut |
3" |
Maximum Depth of Cut
at 45 Degrees |
2-1/8" |
| Maximum Rip Right of Blade |
50" |
| Maximum Rip Left of Blade |
12" |
| Maximum Width of Dado |
13/16" |
| Maximum Diameter of Dado |
8" |
| Table Height |
34" |
| Table Size w/Extension (LxW) |
27" x 40" |
Table Size without
Extension (L x W) |
27" x 20" |
| Dust Port Outside Diameter |
4" |
Dust Collection Minimum
CFM Required |
350 cu.ft/min |
| Motor Power |
3 HP |
| Motor Voltage |
230 V |
| Prewired Voltage |
230 V |
| Motor Current |
14.5 A |
| Motor Phase |
1 Ph |
|
| |
