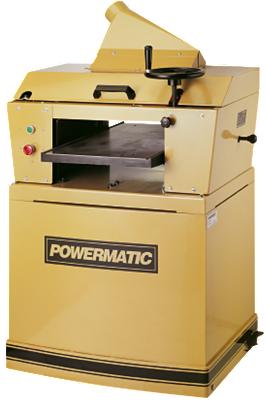

Powermatic® Planer/Molder Combo Machine
The PM15 Planer/Molder from POWERMATIC® is loaded with features that make it a standout. A large 5HP motor supports a 15" wide planing capacity and enough power to run double knife sets for molding. The stand is fully enclosed and equipped with integral casters for shop mobility. Two feed speeds, 10 and 20 FPM, allow you to operate quickly for maximum stock removal, or more slowly to yield a fine milled finish on decorative moldings. The hinged top has a 4" dust collection port, and opens to expose the cutterhead, allowing for fast and easy tooling changes. This machine will use either single molding knives or 3 knife sets.
- 5HP motor powers through big jobs
- 15" planing capacity is wide enough to run double molding knife sets
- Easy-to-read depth of cut scale with large handwheel for quick set ups
- Two feed speeds provide maximum stock removal or a fine milled finish for decorative moldings
- Feed rollers and cutterhead supported by full cast iron head assembly
- Machine uses single or three piece molding knives, providing a wide selection of profiles
- Hinged top for fast, easy tooling changes
- Fully enclosed base cabinet with integrated casters for complete mobility
- Cast iron table is supported by 4 lead screws and height is controlled by chain and sprocket for precise depth of cut
Untitled Document
| Product Specifications |
| Powermatic Part Number |
1120003 |
| Model Number |
PM15 |
| Brand |
Powermatic |
| Working Width |
15" |
| Max. Depth of Cut (Planing) |
1/8" |
| Max. Depth of Cut (Molding) |
3/4" |
| Maximum Planing Thickness |
6-1/8" |
| Minimum Planing Length |
8" |
| Cutterhead Diameter |
2-7/8" |
| Cutterhead Speed |
4500 RPM |
| Cuts Per Minute |
13,500 |
| Outfeed Roller Diameter |
1-1/2" |
| Infeed Roller Diameter |
1-1/2" |
| Feed Rate - Planing |
10, 20 FPM |
| Feed Rate - Molding |
10, 20 FPM |
| Table Size |
27-1/2" x 15-1/8" |
| Scale/Cursor |
Inches & Millimeters |
| Number of Knives |
3 |
| Table Height Adjustment |
1 Turn = 1/16" |
| Dust Port Outside Diameter |
4" |
Dust Collection Minimum
CFM Required |
900 cu.ft/min |
| Motor Power |
5 HP |
| Motor Voltage |
230 V |
| Prewired Voltage |
230 V |
| Motor Phase |
1 Ph |
| Height |
51" |
| Width |
34" |
| Length |
28" |
| Net Weight |
423 lbs. |
Standard Equipment:
- Two-speed gearbox
- Tool Kit
- Dust Chute
- Integrated Casters
- 3 High Speed Steel Planer Knives
- Knife Setting Gauge
