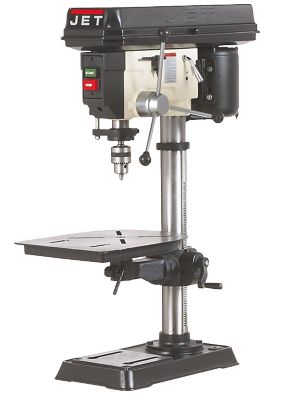

Jet® 15'' Bench Mount Drill Press
Got limited space in the shop? You need the versatility of the JDP-15M 15" Bench Mounted Drill Press. In addition to cutting perfectly perpendicular holes, its 16 speeds allow you to use it for non-drilling chores such as sanding, mortising, shaping, routing, plating, and other practical jobs. Reconfiguration is pretty slick, too, with a hinged metal belt and pulley cover providing easy access to the quick adjustment motor mount to allow rapid spindle speed changes. The rotating, 45° operated worktable has quick release clamp for fast, accurate adjustments, allowing you to be efficient and creative.
- 16 speeds lets you choose the best speed for the job
- Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
- Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
- "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position
- Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
- Spindle has high-quality ball bearing construction for long life
- Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
Untitled Document
| Product Specifications |
| Jet Part Number |
354165 |
| Model Number |
JDP-15M |
| Brand |
Jet |
| Height |
12" |
| Width |
23" |
| Length |
32" |
| Net Weight |
163 lbs. |
| Swing |
15" |
| Spindle Travel |
3-1/8" |
| Spindle Distance to Table (max) |
16-1/2" |
| Spindle Distance to Base |
24" |
| Spindle Speed |
200 - 3630 RPM |
| Spindle Taper |
MT-2 / JT-33 |
| Drilling Capacity |
5/8" |
| Chuck Size |
5/8" |
| Column Diameter |
2-7/8" |
| Table Size |
16-1/2" x 13" |
| Base Size |
10-7/8" x 18-1/2" |
| Motor Power |
3/4 HP |
| Motor Voltage |
115 / 230 V |
| Prewired Voltage |
115 V |
| Motor Current |
9 / 4.5 A |
| Motor Phase |
1 Ph |
| Spindle Speeds |
16 |
