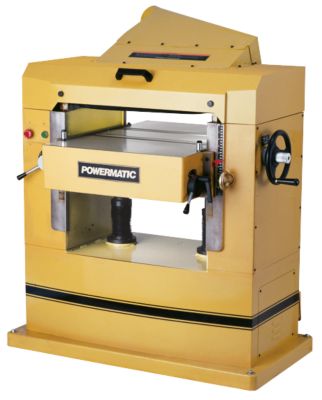

Powermatic 201 Planer, 7-1/2HP, 3Ph, 230V
Powermatic 201 Planer, 7-1/2HP, 3Ph, 230V
- Cast iron 1300 lb.
construction for solid performance without vibration
- 2 feed speeds - 20/30 fpm -
accommodates rough and fine finish work
- Segmented infeed roller with
sectional chipbreaker allows multiple board planing
- 4-knife head offers 19,200
cuts per minute and widest capacity of its class
- Roller bearing-mounted feed
rollers for long life
- Adjustable bed rollers allow
smooth feeding of rough or finished workpieces
- Oversized cast iron table
travels on 2 large lead screws for heavy duty support
- Standard Equipment:
- Dust collection chute with 5"
port
- Adjustable foot pads
- Knife setting gauge
- Tool kit (6, 8, and 10mm
wrenches, 12 x 14mm, and 22 x 24mm combination wrenches)
Specifications:
-
Bed Rollers Adjustable
from Front:
2
-
Brand:
Powermatic
-
Cuts Per Minute:
19,200
-
Cutterhead Diameter (in.):
3-1/4
-
Cutterhead Speed (RPM):
4800
-
Dust Collection Minimum
CFM Required:
900
-
Dust Port Diameter
(OD/in.):
5
-
Feed Rate (FPM):
20/30
-
Height:
59
inch
-
Infeed Roller Diameter
(in):
n.a.
-
Length:
42
inch
-
Maximum Depth of Cut
(in.):
3/16
-
Maximum Full Width Depth
of Cut (in.):
1/18
-
Maximum Opening (in.):
n.a.
-
Maximum Planing Thickness
(in.):
9-1/4
-
Maximum Planing Width
(in.):
22
-
Minimum Planing Length
(in.):
10
-
Model Number:
201
-
Motor HP:
7-1/2HP
-
Motor Phase:
3Ph
-
Motor Voltage:
230V
-
Movement - Horizontal
(in.):
n.a.
-
Movement - Vertical
(in.):
n.a.
-
Movement - Vertical (in.):
n.a.
-
Net Weight:
1350
pound
-
Number of Knives:
4
-
Number of Speeds:
two
-
Outfeed Roller Diameter
(in):
3
-
Overall Dimensions:
42 x 49 x 59
-
Part Number:
1791262
-
Planing Thickness Range
(in.):
n.a.
-
Prewired:
Prewired 230V
-
Range of Speeds (FPM):
n.a.
-
Readout Scale:
mm/in
-
Rotation
(Forward/Reverse):
n.a.
-
Segmented Infeed Roller
Diameter (in.):
3
-
Ship Weight:
1430
pound
-
Swing (deg.):
n.a.
-
Table Height Adjust
Manual:
1 Turn = 1/16
-
Table Size (in.):
32-1/4 x 24
-
Table Support:
2-column
-
Tool Supplied:
Yes
-
Width:
49
inch
