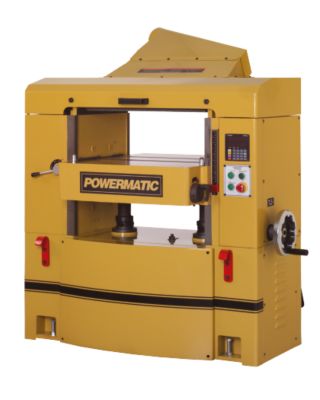

Powermatic WP2510 25'' Planer

Powermatic WP2510 25' Planer

• Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
• Digital readout and simple PC controller make quick and easy table height set ups
• Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock
• Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
• 3" diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life
• Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
• Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
• Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
• 3 speed feed selector allows you to quickly change feed rates
• Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
• Dust hood features built-in 5" dust chute for efficient dust collection
• Standard Equipment:
• Helical head with four sided inserts
• Dust hood with 5" diameter dust port
• Segmented infeed rollers
• Segmented chip breakers
• Tool kit with pneumatic screwdriver for removing the cutterhead insert blades

Specifications:

• Bed Rollers Adjustable from Front: 0" to 0.05"
• Brand: Powermatic
• Column Diameter (in.): 2-1/2
• Cuts Per Minute: 30000
• Cutterhead Diameter (in.): 3-3/8
• Cutterhead Speed (RPM): 5000
• Distance Between Rollers - Center to Center (in.): n.a.
• Dust Collection Minimum CFM Required: 600
• Dust Port Diameter (OD/in.): 5
• Feed Rate (FPM): 30-25-20
• Height: 59 inch
• Infeed Roller Diameter (in): n.a.
• Length: 52 inch
• Maximum Depth of Cut (in.): 1/4
• Maximum Full Width Depth of Cut (in.): 1/8
• Maximum Height of Rollers Parallel to Tabletop (in.): 0.05"
• Maximum Opening (in.): n.a.
• Maximum Planing Thickness (in.): 9
• Maximum Planing Width (in.): 25
• Minimum Planing Length (in.): 10
• Model Number: WP2510
• Motor HP: 15HP
• Motor Phase: 3Ph
• Motor Voltage: 230/460V
• Movement - Horizontal (in.): n.a.
• Movement - Vertical (in.): n.a.
• Movement - Vertical (in.): n.a.
• Net Weight: 1725 pound
• Number of Knives: 168 Four-sided inserts
• Number of Speeds: n.a.
• Outfeed Roller Diameter (in): 3
• Overall Dimensions: 52 x 36 x 59
• Part Number: 1791303
• Planing Thickness Range (in.): n.a.
• Prewired: Prewired 230V
• Range of Speeds (FPM): n.a.
• Readout Scale: in/mm
• Rollers (in.): (1) infeed, (2) outfeed
• Rotation (Forward/Reverse): Fwd only
• Segmented Infeed Roller Diameter (in.): 3
• Ship Weight: 1850 pound
• Swing (deg.): n.a.
• Table Height Adjust Manual: 1 handwheel revolution = 1/32"
• Table Size (in.): 32-3/16 x 26
• Table Support: 2 column
• Tool Supplied: tool kit
• Width: 36 inch
