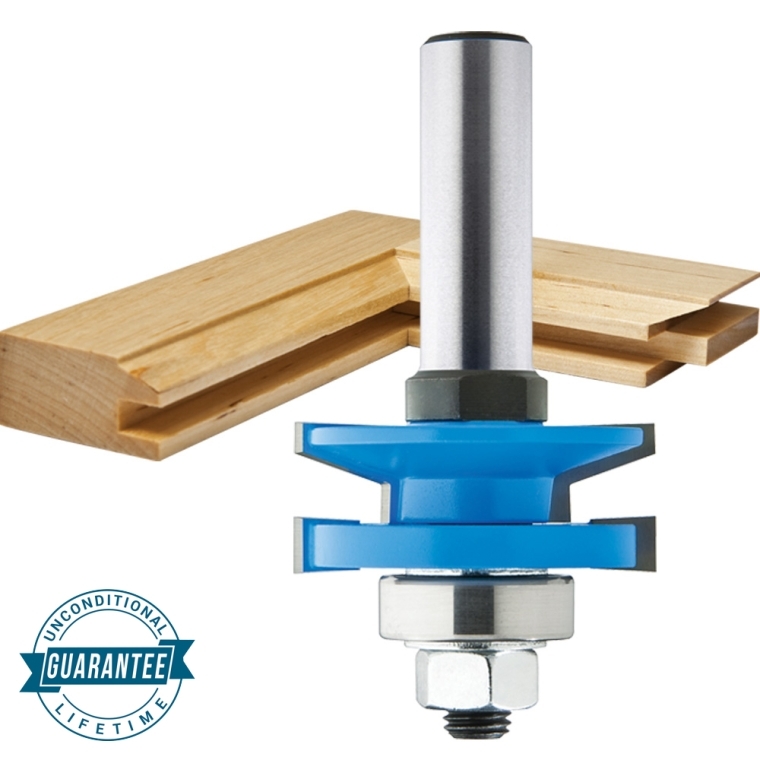

Rockler Chamfer Reversible Rail & Stile Router Bit - 1-5/8" Dia x 15/16" H x 1/2" Shank  Zoom

Rockler Chamfer Reversible Rail & Stile Router Bit - 1-5/8" Dia x 15/16" H x 1/2" Shank

Item #: 27190
$69.99
Each In Stock
Mill cope and stick doors with a single cutter—just shift the profile cutter between the top and bottom of the stack.

Overview

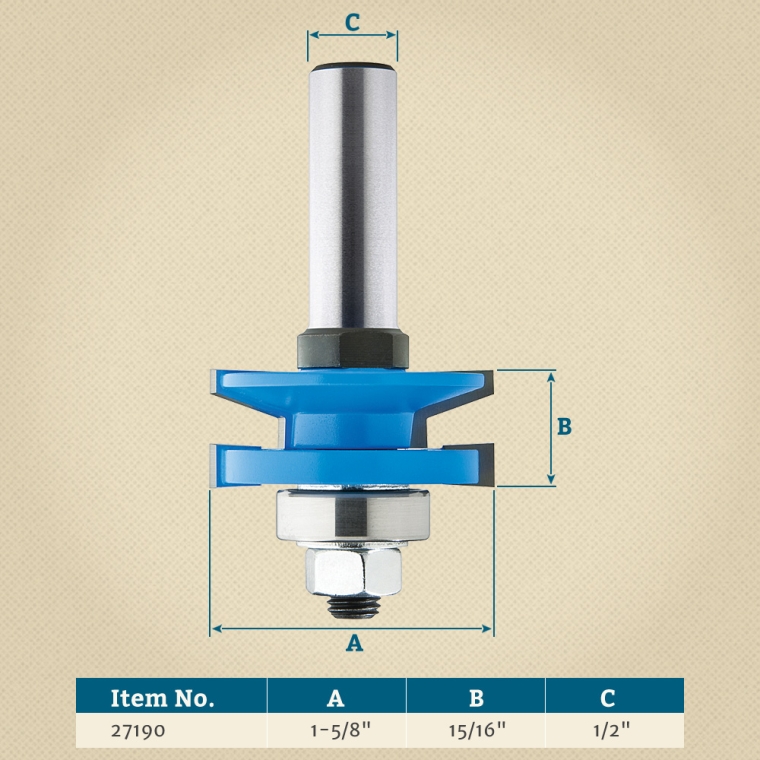

For those who make cabinet doors only occasionally, this cutter provides an affordable, space-saving solution to routing cope and stick joints. One bit cuts both rail and stile profiles; just remove the cutters and rearrange them to go from coping rail ends to routing grooves in the stiles. Because the bit is bearing-guided, you can also rout arched rails without a template or fence. Available in Chamfer, Ogee and Classical styles (27190, 23422 and 27602, respectively). 1-5/8" diameter x 15/16" cutter height x 1/2" shank. 5/8" bearing. Groove is 3/8"D x 1/4"H.

Instructions for Routing:

  • To cut the groove and profile on the insides of the rails and stiles, run stock face down on table. Stack the bit (starting from the shank end) as follows: profile cutter, straight cutter, then bearing.
  • To cope the ends of the rails, run stock face up on table. Stack the bit (starting from the shank end) as follows: straight cutter, bearing, then profile cutter.
  • IMPORTANT SAFETY NOTE: Do not invert any of the cutters! Be sure the carbide is facing the right direction for the rotation of the router.

Tech Spec

Brand Rockler
Weight (lbs) 0.3600
Bit Type Stile & Rail
Diameter 1-5/8"
Cutter Height 15/16"
Shank Size 1/2"
Flutes 2

What's included:

(1) Rockler Chamfer Reversible Rail and Stile Bit

Reviews

Customer Reviews

1 Review(s)

View All

It turns out [the groove size...

Jim S from Woodstock, GA Posted March 3, 2010
It turns out [the groove size is]to be a full 1/4", meaning standard plywood panels will be too thin for the cabinet door and will rattle. Also, don't be misled by the "simply reverse the cutters" language. I wasted tons of wood doing microfits in attempts to get the rail and stile to fit exactly. It took forever and I am still not totally happy with the outcome.
