- Router Bit Set-Up Jigs for 22627 45° Lock Miter Bits
Overview
Set your router bit to the precise height every time for accurate lock miter joints! Simply bring the router bit up through the table and align the jig with the cutting edge of the bit. Jig works for 3/4" stock on one side and 5/8" stock on the other. Made of durable HDPE and measures 2" x 3-7/8" x 3/4".
What's included

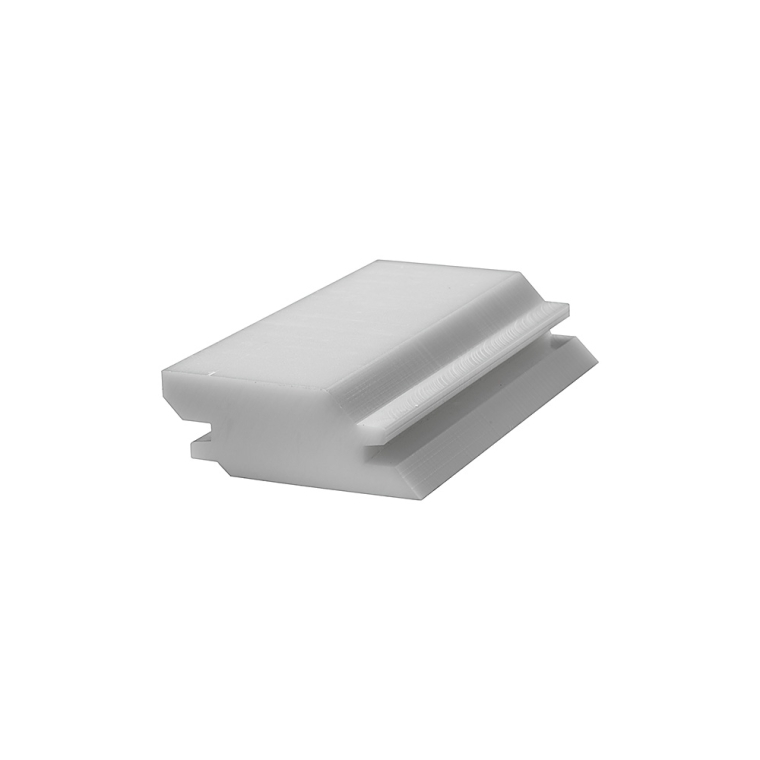

(1) Router Bit Set-Up Jig for 22627 45° Lock Miter Bits
Technical Details
- Brand: Rockler
- Weight (lbs): 0.1500
- Type: Setup
