20059 - SawStop 1.75HP 10  Zoom

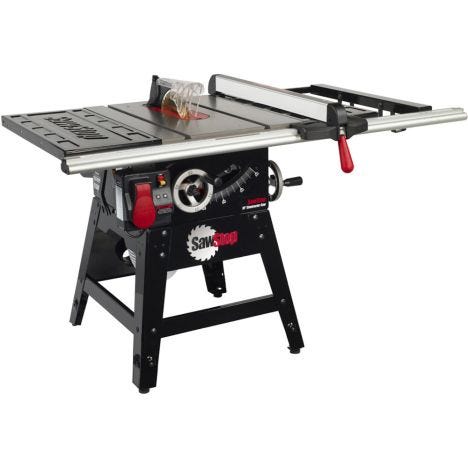

SawStop Contractor Table Saw w/30'' Fence, CNS175-SFA30

Item #: 20059
$1,599.00
Each Direct Ship
Specifically engineered to be the cornerstone of home shops.
  • There is an additional $150.00 shipping charge for this item.

Overview

The SawStop® 110V, 1.75HP 10" Professional Contractor Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw's 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop's® legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Professional Contractor Saw is engineered to be the cornerstone of a home shop.

NOTE: No International shipping available on SawStop items. SawStop items can only be shipped within the Continental United States. SawStop, the SawStop blade logo, and the configurations of SawStop products are either registered trademarks or trademarks of SawStop, LLC and are used with permission.

Technical Details:

  • Motor: 1.75 hp, 1 phase, 110 V, 14 A
  • Weight: 265 lbs
  • Max. rip, right of blade: 30"
  • Cast iron table: 20"W x 27"D
  • Steel extension wing: 12"W x 27"D
  • Blade: 40-tooth, professional grade, 5/8" arbor
  • Blade diameter: 10"
  • Blade tilt: Left
  • Blade kerf: 0.118" (3mm)
  • Blade plate thickness: 0.078" (2mm)
  • Max. depth of cut, blade at 0°: 3-1/8"
  • Max. depth of cut, blade at 45°: 2-1/4"
  • Max. rip, left of blade: 12"
  • Dado diameter: 8" (requires a separate brake cartridge and table insert)
  • Dado max. width: 13/16"
  • Arbor diameter at blade: 5/8"
  • Main bearing size: 62mm OD x 30mm ID
  • Second bearing size: 52mm OD x 25mm ID
  • Table in front of blade (max. elevation): 10-1/4"
  • Table behind blade (max. elevation): 7-1/2"
  • Arbor runout: 0.001" Maximum allowable runout
  • Blade lateral movement over full elevation range: 0.006" Maximum
  • Table flatness measured diagonally: 0.010" Maximum gap
  • Overall table flatness: 0.025"
  • Blade alignment with miter slot: 0.010" Maximum displacement
  • Deviation of miter gauge indexing stops from actual: �0.25°
  • Alignment between spreader and blade: 0.010" Maximum difference
  • Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
  • Dust collection port diameter: 4"
  • Riving knife / splitter thickness: 0.078" (2mm)
  • Blade guard: polycarbonate, extends only 5/8" to right of blade
  • Insert: zero clearance, steel core, ABS surfaces
  • Hand wheels: 7" diameter, cast iron with chrome handle
  • Belts: 2 V-ribbed belts - arbor belt is static dissipative

Related articles

Tech Spec

Brand SawStop
Manufacturer Part Number CNS175-SFA30
Weight (lbs) 265.0000
Arbor Size 5/8"
Dust Collection 4" Port
HP 1-3/4 HP
Maximum Depth of Cut 3-1/8"
Dimensions 20" x 27"

What's included:


One SawStop Contractor Table Saw
