Solid Brass Lid Support Hinge  Zoom

Solid Brass Lid Support Hinge

Item #: 49162
$22.99
Pair In Stock

Overview

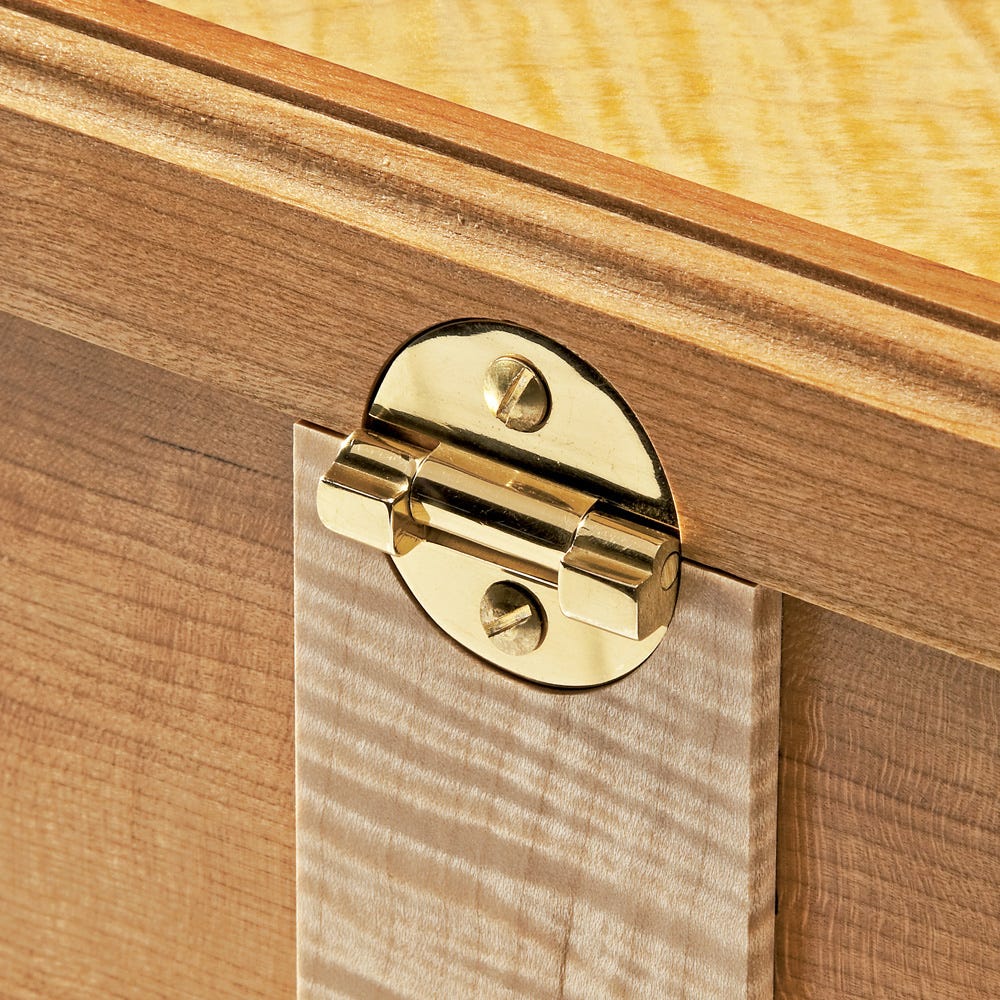

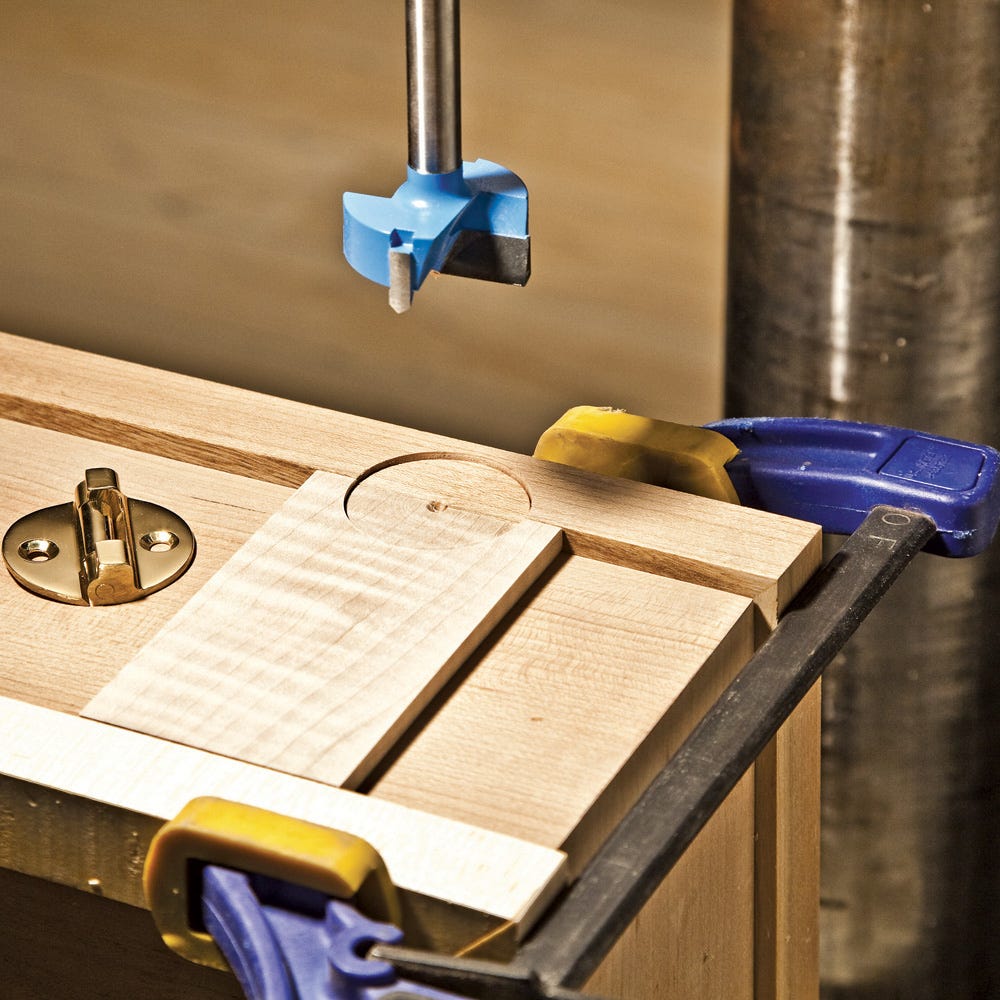

These high-quality solid brass jewelry box hinges stop at just over 90°, eliminating the need for a lid support or chain. Mortising is easy with a 35mm forstner bit - just clamp the lid and box together and drill to the appropriate depth. Hinges can also be surface-mounted. Includes screws.

Technical Details:
  • Hinges measure approximately 35mm in diameter (1-3/8") so they work with a standard 35mm hinge cup drilling bit.
  • Hinges can be mortised in or surface mounted.
  • Integral stop holds lid open at just over 90°.
  • Solid brass construction with a polished brass finish.
  • Periodic lubrication with light household oil is recommended for smooth movement of leaves and extended hinge life.

Tech Spec

Manufacturer Part Number LSRNDPB035
Weight (lbs) 0.1300
Finish Brass

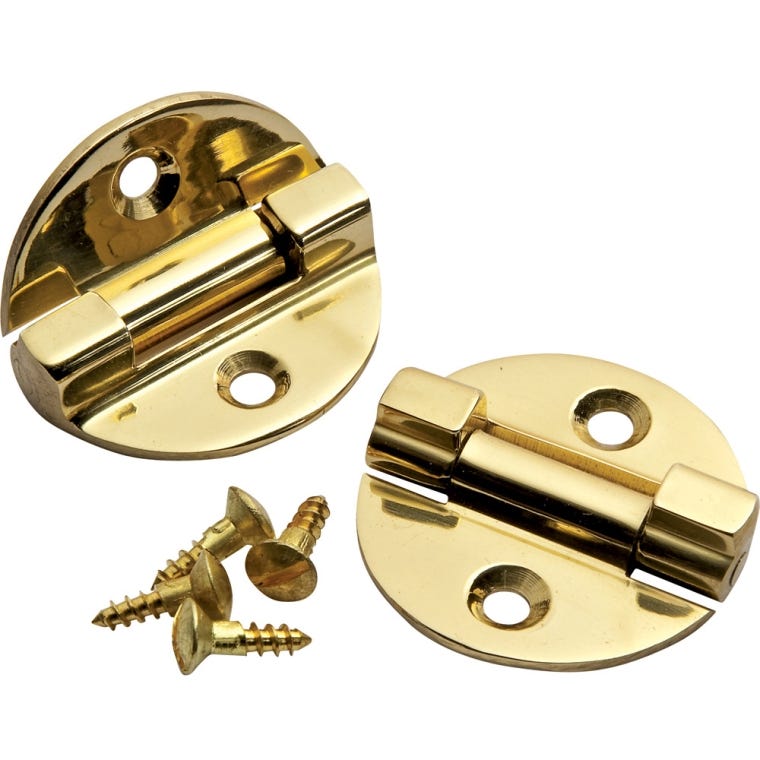

What's included:

  • 2) Solid Brass Lid Support Hinges
  • (4) 1/2" slotted brass screws

Reviews

Customer Reviews

2 Review(s)

View All

Beautiful & Easy to Install !

John Posted July 10, 2014
After installing quadrant hinges on my last box project I wanted to find a hinge that was easier to install but still looked great. This is the hinge! The instructions in the bag were for a square design. Had to download correct ones from Vertexhinges.com. The hardest part was turning having to turn the drill chuck by hand (power drilling will grab the box lid and twist it out of alignment with the bottom).

OK

Peter Posted August 2, 2014
I bought several pairs of these nice looking hinges and have had mixed results. They look great when installed and i have not had any problem with the box lid shifting out of alignment with the box as I thought might happen with only two screws in each hinge. The problem I've had was the hinges don't sit completely flat in the Forstner bit cut out and the large hole left by the center of the bit. I modified one bit and reduced the center spike quite a bit and that helped and on another project I filled in the gap between the hinge and the box/lid with wood putty. Both these measures helped but still did not put this hinge into the class needed for really fine work in my opinion.
