45030 - Threaded Biscuit Inserts, 4-Pack  Zoom

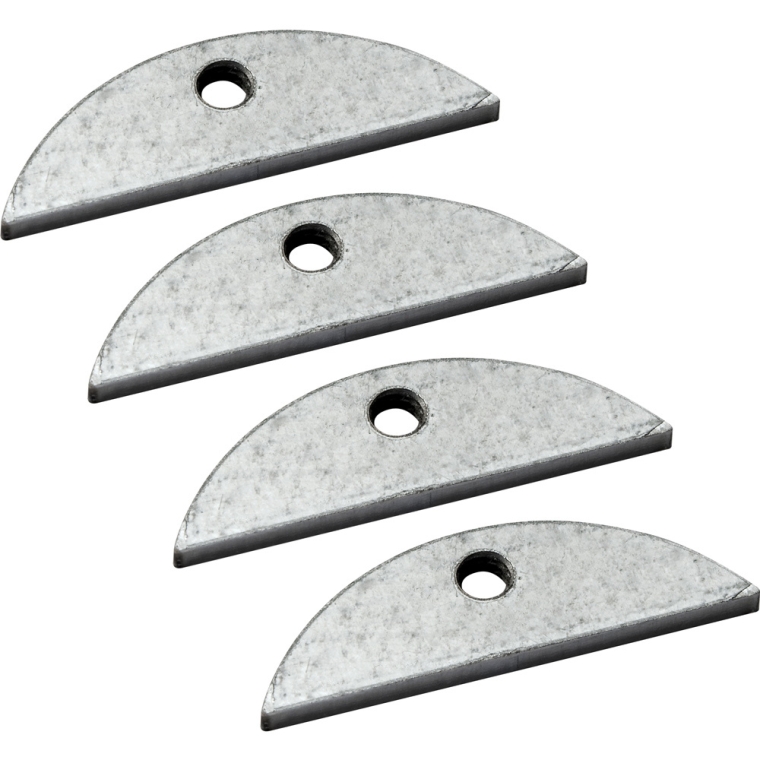

Thin Stock Threaded Inserts, 4-Pack

Item #: 45030
$4.99
Pack In Stock

Overview

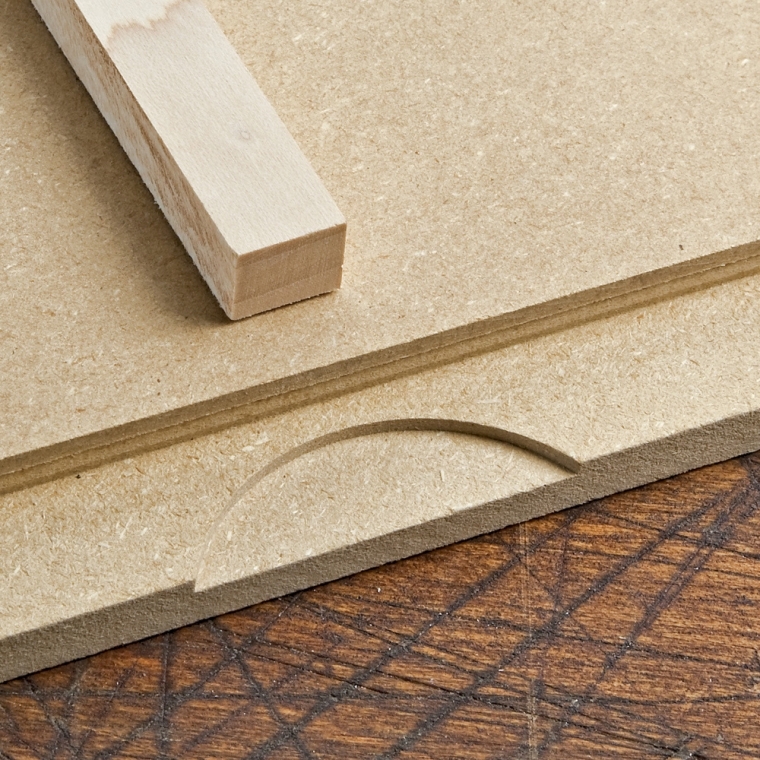

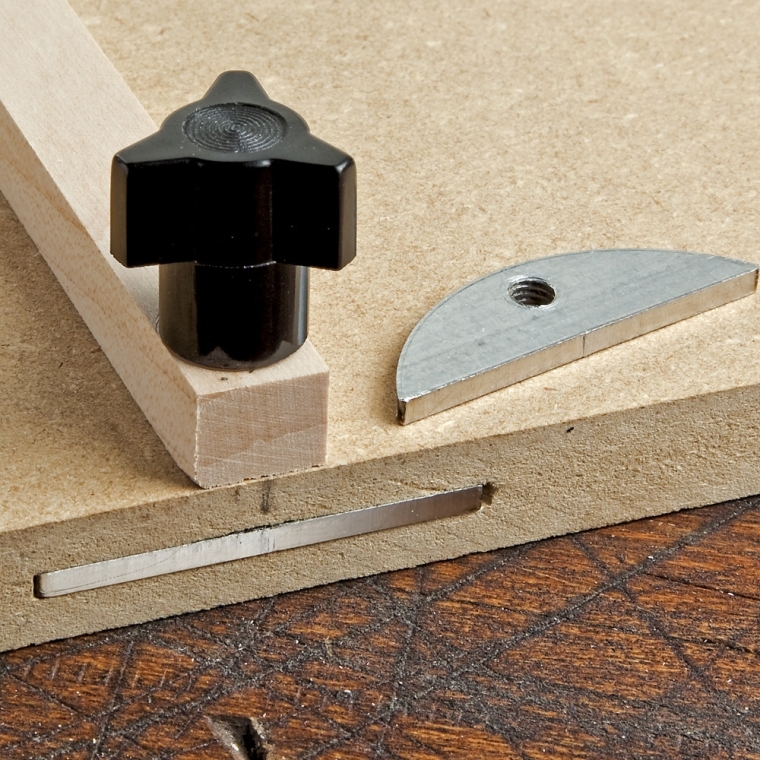

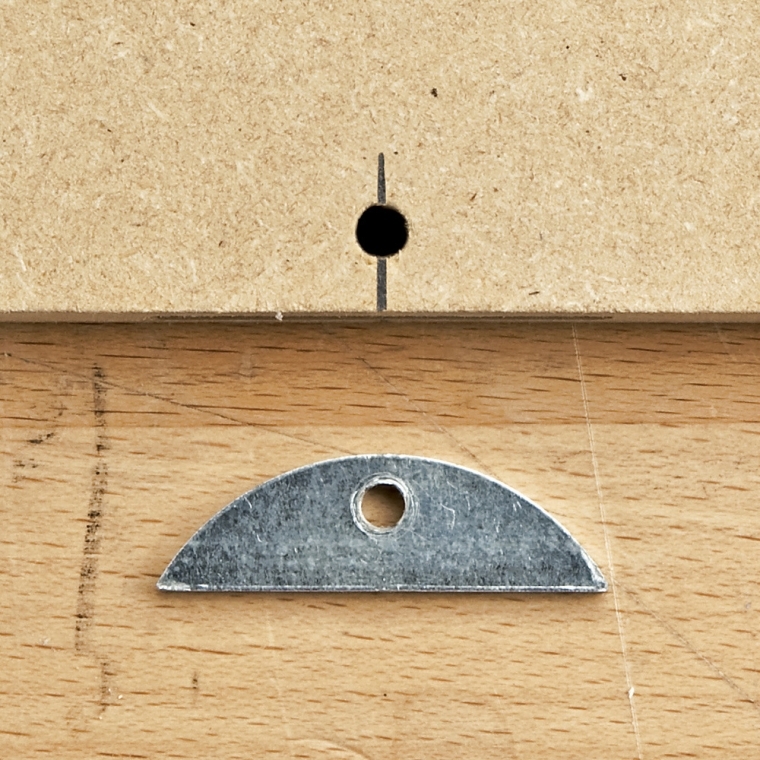

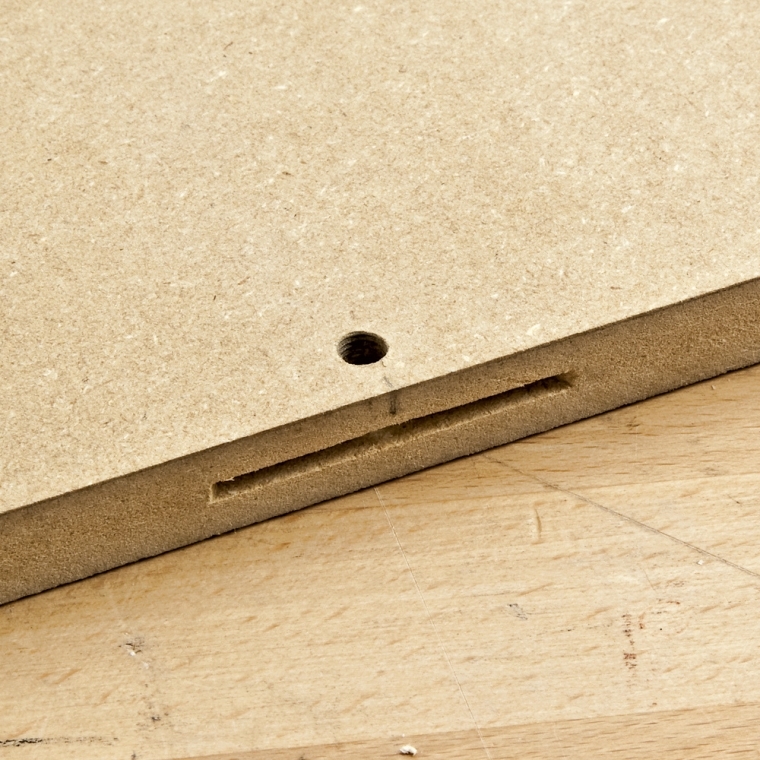

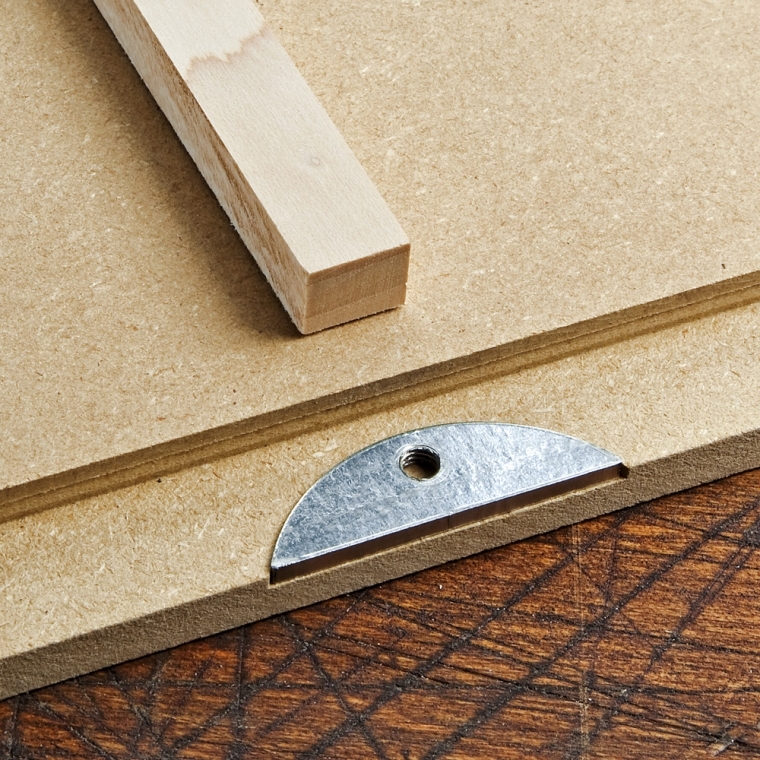

If you're looking for a threaded insert for thin material, then you've found it.Until now, the length of most threaded inserts only allowed them to be usedwith 3/4" material or thicker, but the wide, flat design of this insert eliminatesthe need for external threads, allowing it to be used in material as thin as 1/2".Just use a 3/32" slot cutter or a thin kerf saw blade to create a groove in theedge of your material, drill a hole where the insert will be, and you're ready forassembly. Accepts any bolt with a 10-32 threading.

Technical Details:
  • Since the Thin Stock Threaded Insert is flat, it doesn't require the thick materialof a normal threaded insert.
  • Wide profile spreads out the load of the screw to prevent pull-through.
  • Tapped to accept any bolt with a 10-32 threading.
  • Use a 3/32" x 1-7/8" diameter slot cutter to create the pocket for the insert.
  • Most thin kerf saw blades also have a 3/32" kerf, and will work for creating thepocket.
  • Made of galvanized steel.

Tech Spec

Manufacturer Part Number 45030
Weight (lbs) 0.0700

What's included:

(4) Rockler Thin Stock Threaded Inserts
