Tormek DBS-22 Drill Bit Sharpening Attachment  Zoom

Tormek DBS-22 Drill Bit Sharpening Attachment

Item #: 40603
$280.00
Each In Stock (online only)

Overview

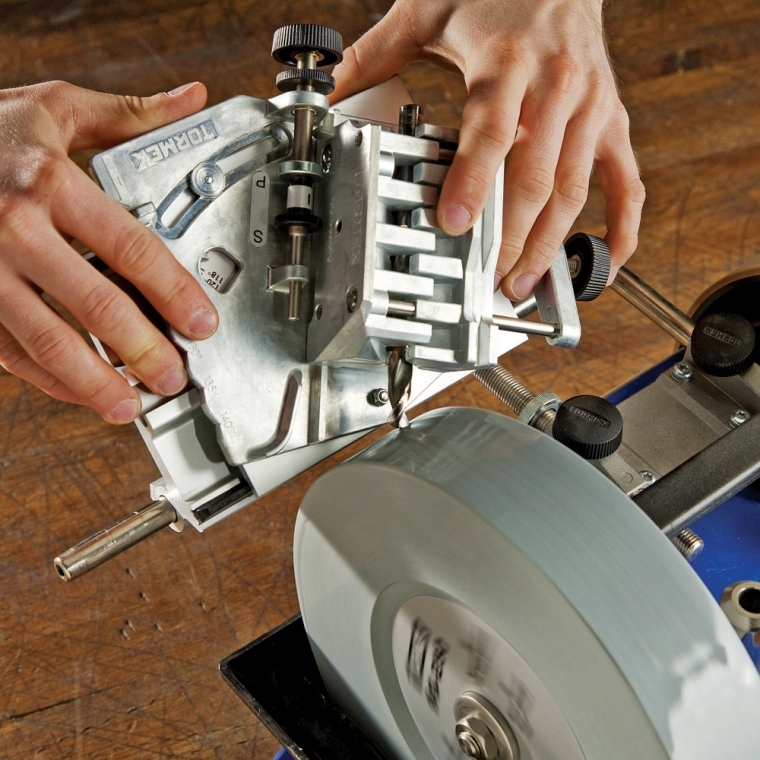

Independent tests show that a drill bit sharpened on Tormek's new DBS-22 lasts up to four times longer than a brand-new conventional drill bit. So what's the secret to the patented DBS-22's success? One factor is its 4-facet grind geometry: a keenly-pointed chisel edge tip that requires less effort and generates far less heat. It also bores rounder, straighter holes with closer tolerances and no walking. Another factor is its incredibly precise machining, along with flexible adjustment and total control over the motion of the drill bit. Couple that with low RPMs and water-cooling to prevent overheating and microcracks, and the difference is clear. The sharpening specialists at Tormek know how to keep a cutting edge. Accepts drill bits from 1/8" to 7/8".

Technical Details:

  • Accepts Drill bits from 1/8" to 7/8" with point angles from 90 deg to 150 deg
  • Clearance angle can be set to 7 deg, 9 deg, 11 deg or 14 deg





Best Used With: Tormek T-7 and T-3 Models.

Tech Spec

Brand Tormek
Manufacturer Part Number DBS-22
Weight (lbs) 7.2500

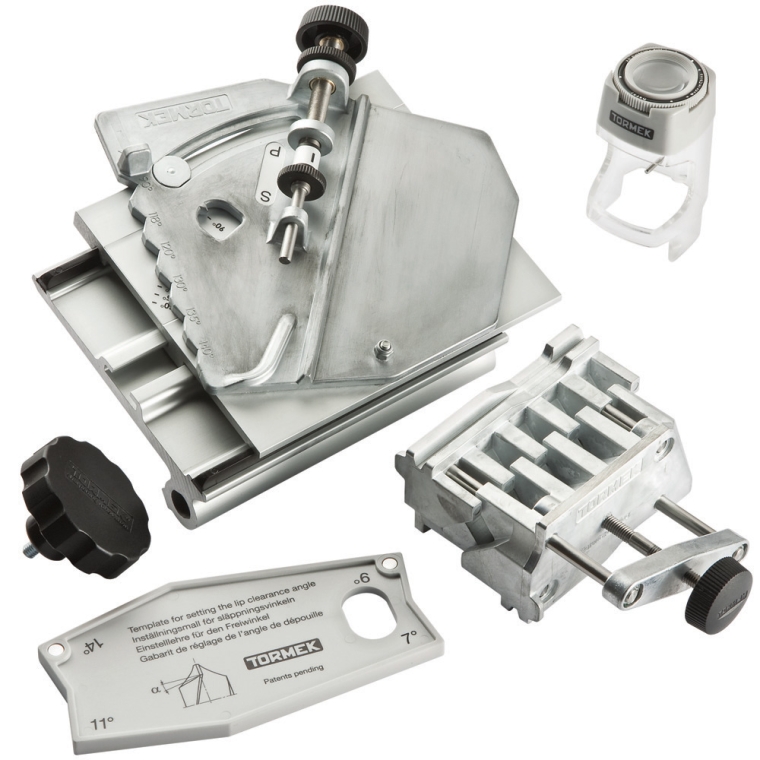

What's included:


One Tormek DBS-22 Drill Bit Sharpening Attachment

Reviews

Customer Reviews

1 Review(s)

View All

The DBS-22 drill bit sharpener is...

Ronald J C from Salt Lake City, Utah Posted June 16, 2011
The DBS-22 drill bit sharpener is a nice addition to the Tormek. Although my Tormek is fast becoming one of the most expensive tools in my shop, every additional tool does a great job in what it was designed for and the DBS-22 is no exception. At first you will have to follow the instructional manual or you will be lost. Once you get the process down you will end up with a VERY sharp drill bit.I would purchase this tool again. Yes, it is expensive, but all my drill bits cut like they are new, something I wished for before this purchase. I'd give it 5 stars :
