Tormek Gouge Jig

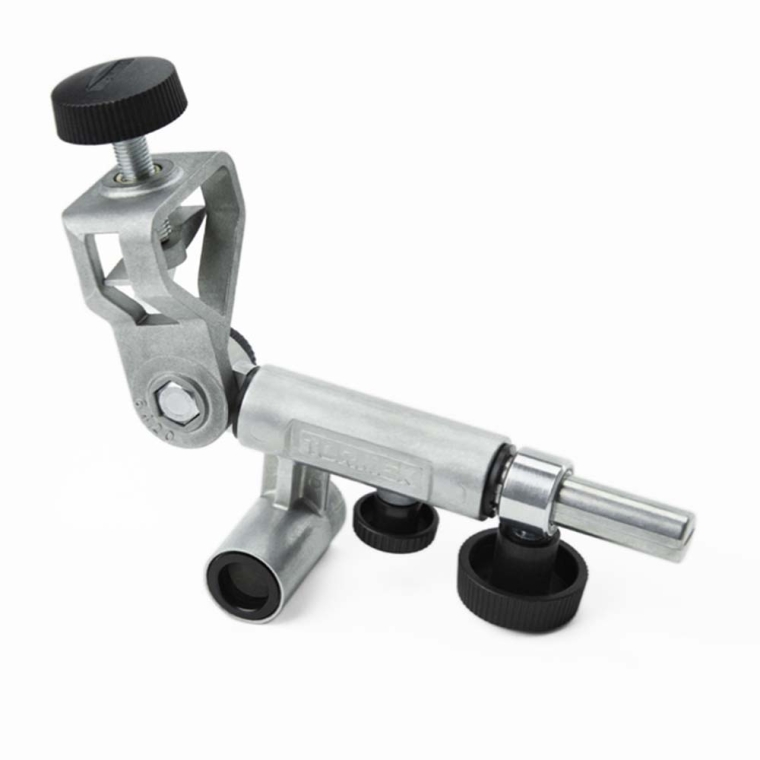

Tormek SVD-186 Gouge Jig

Item #: 52083
Sharpen turning gouges, carving gouges and straight or curved V-tools with stunning precision and repeatability.
In Stock (online only)
Sign up for price alert Add to Wishlist Find in Store

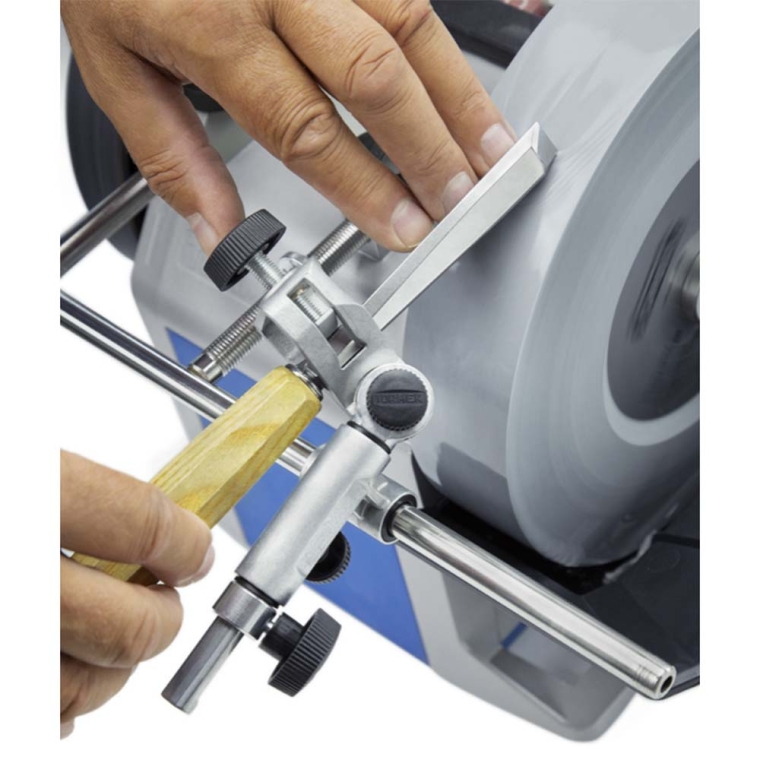

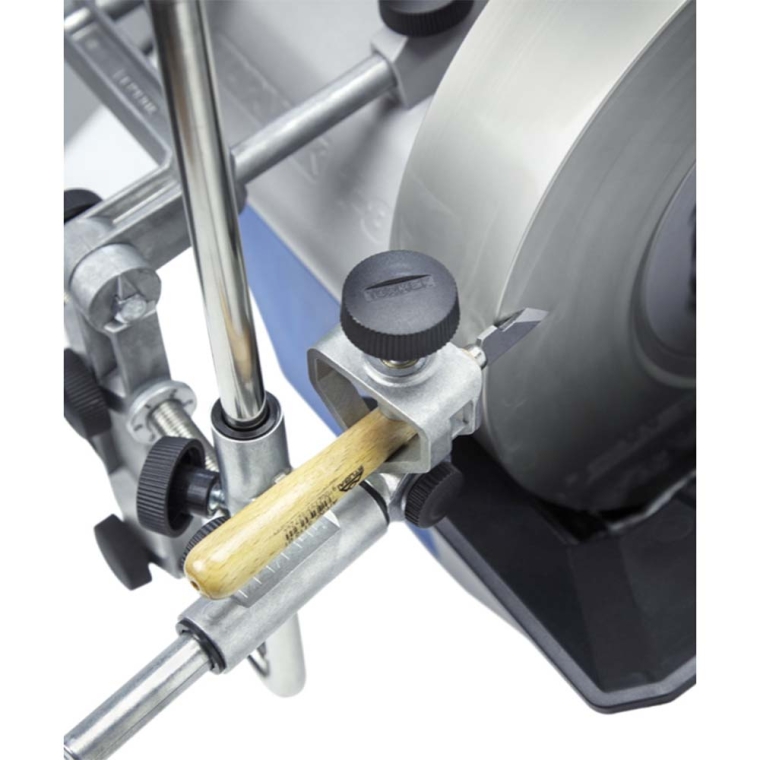

Designed to be used with Tormek's water-cooled sharpening systems, the patented Tormek SVD-186 is capable of shaping and sharpening a wide range of fingernail-shaped turning gouges and woodcarving tools, including curved gouges, V-tools, back bent and down bent gouges. Thanks to easy, repeatable settings, you get full control over the shape and angle of the grind. The end result is a finely honed and polished edge that cuts with little effort, and requires little sanding. And thanks to the indexed markings on the sharpening jig and an included pen and set of ''recipe labels'' that you can adhere to your tools, it's easy to reproduce the exact same settings when the time comes to sharpen again. With such precision, you need only remove a tiny fraction of the steel, resulting in far greater life for your tools.


  • Sharpens bowl and fingernail gouges up to 1-3/8'' (36mm)
  • Replicates complex gouge profiles
  • Sharpens removable insert cutters
  • Shapes and sharpens Ellsworth grinds

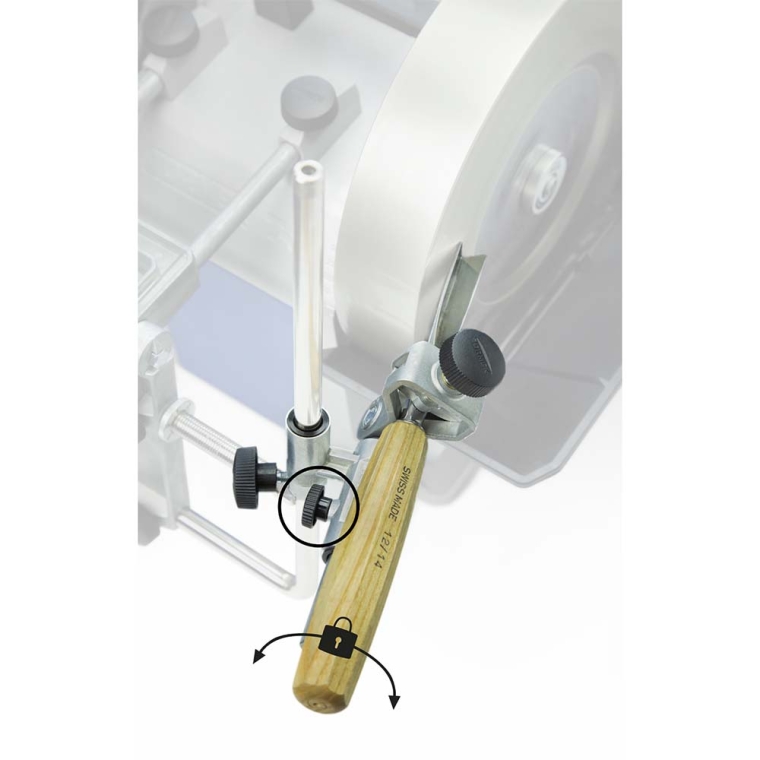

  • Includes a locking disc which greatly simplifies the fixing of gouges of all sizes

What's included

(1) Tormek SVD-186 Gouge Jig
(2) Hex Wrenches
(1) Pack of Self-Adhesive Labels (for recording jig settings)
(1) Pen (for use with labels)
(1) Shaft for Insert Cutters

Technical Details

  • Maximum Blade Width: 1-3/8'' (36mm)
  • Brand: Tormek
  • Manufacturer Part Number: TOR-SVD186
  • Weight (lbs): 1.1000
