Please Note: If shipping to a residential address OR a lift gate is needed, there will be an additional $75 fee. If shipping to a residential address AND a lift gate is needed a $105 fee will be added.
- Maximum Crosscut Length: 50" (1270mm)
- Maximum Rip Cut Length: 96" (2540mm)
- Maximum Cut Thickness: 1-3/4" (45mm)
- Cut Accuracy, Straight and Square: 1/32" (0.8mm)
- Saw Blade Diameter: 8" (200mm)
- Frame Length: 60" (1525mm)
- Shipping Weight: 189 lbs. (86 kg)
- 3-1/4 HP, 15 Amp industrial duty saw motor
- Zinc plated 1-3/4" steel guide tubes
- 4 Nylatron roller bearing systems
- Adjustable vertical and horizontal rulers
- Thin material pressure guard
- Spring loaded counter balance system
- Injection-molded plastic material rollers
- Quick change from vertical to horizontal cutting
- Saw blade NOT included
- 1 Year Parts Warranty from Manufacturer
- Lifetime Frame Warranty from Manufacturer
Optional Accessories (Sold Separately):

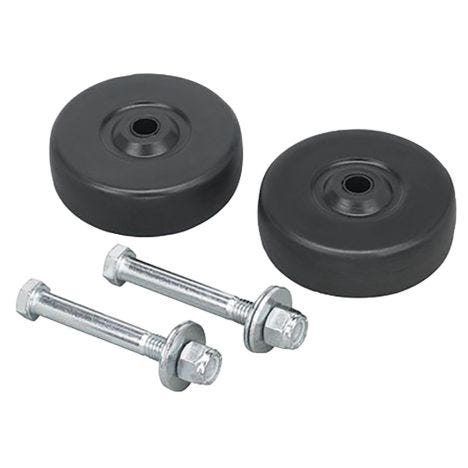

- Wheels (#25639): Allow the machine to be moved easily when in the completely upright position. When the machine is resting on either stand, wheels are disengaged and the machine will not move independently.
- Folding Stand: (#25648) Allows the panel saw to be free standing, without needing to lean the unit against a wall.
- Extensions: (#25657) Come as a pair and add 20" to each side of the material handling roller fence allowing for easy processing of larger panels. Extensions enable full sized machines to easily cut panels larger than 10' in length quickly, accurately, and safely with just a single operator.
|Manufacturer Part Number||H10|
(1) Safety Speed Cut C4 Vertical Panel Saw
