Dust Right® Lathe Dust Collection System with Lathe Tool Holder

Adjustable scoop capture dust at the source—tool holder keeps up to 12 turning tools close at hand.
Item #
BMX52722
$114.98
In stock
NEW LOWER PRICE!
#31107 Was $44.99, Now $34.99!
$34.99   Lathe Tool Holder (31107)
$79.99   Dust Right® Lathe Dust Collection System (52981)

$114.98

Summary

    Get Expert Advice

    Return Policy

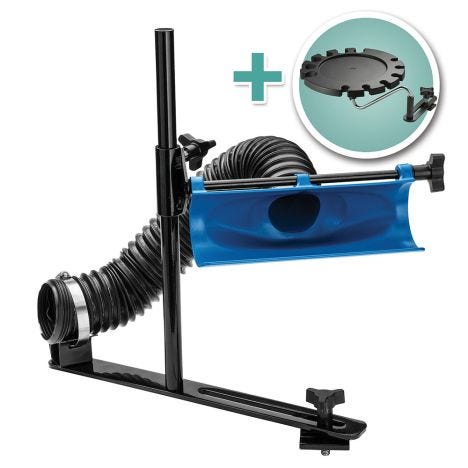

    This package includes two easy attachments to make turning at the lathe more comfortable and convenient. The first is a scoop that adjusts to capture wood dust right at the source. The scoop is mounted to an adjustable steel boom arm that can be easily slid along the bed of your lathe, and is height adjustable within a 15'' range. It can also be adjusted in and out along the slot in the plate, and pivoted at three points for an incredible variety of positioning options. A length of flex-form hose is included to connect to your dust collection system. Compatible with most lathes.


    The second is a rotating tool holder that provides convenient access while working at the lathe. The tray features a total of 12 slots—six for standard size tools, six for miniature tools—and spins for convenient tool selection. At 12'' in diameter, there is plenty of room at the center of the tray for sandpaper, glue, calipers and additional supplies. The holder mounts to the bed of most flatbed lathes and pivots to bring tools exactly where you want them.

    (1) 9'' Dust Scoop
    (1) Port Boom Arm
    (1) 15'' Vertical Mounting Post
    (1) 15'' Adjustable Connection Plate
    (1) 19-1/2'' Section of FlexForm Hose
    (1) Hose Clamp
    (1) Hardware Pack (includes all necessary hardware for connection and adjustment)
    (1) Lathe Tool Holder

    More Information
    Brand Rockler Dust Right
    Tech Spec Dust Collection System:
    • Dust Scoop Overall Dimensions: 3'' dia. x 9''L
    • Dust Scoop Inside Diameter: 2-3/4''
    • Mounting Post Dimensions: 3/4'' dia. x 15''H
    • Mounting Plate Length: 15'' x 1/4'' thick
    • In-Out Adjustment Range (Slot): 6-1/2''
    • Dust Scoop Material: ABS plastic
    • Boom Arm Material: Steel
    • Flex Form Hose I.D.: 2-1/2''

    Lathe Tool Holder:
    • Holder Diameter: 12''
    • Slots: 12
    • Material: Steel arm with polymer tray
