$69.99 Each
In stock

Kreg Jig® HD Heavy-Duty Pocket Hole System

Item #
46791
Rating:
98% of 100
Kreg Jig® HD Heavy-Duty Pocket Hole System Kreg Jig HD
Kreg Jig® HD Heavy-Duty Pocket Hole System

Go BIG with the Kreg Jig® HD Heavy-Duty Pocket Hole Jig-a supersized, industrial-strength Kreg Jig® optimized for working with 2x4 stock and larger. With all of the famed speed of the original Kreg Jig®, along with robust joints that are 50% stronger, and big 2-1/2" weather coated #14 screws, the Kreg Jig® HD makes a simple, strong joinery system for wall framing, deck railing, outdoor furniture, gazebos, swings, fences, trellises and anything else that will need to stand the test of time and the elements. The Kreg Jig HD is extremely portable for job-site use, simply slip your Kreg Face Clamp (#26613, sold separately), into the jig and lock it into place for a one-piece system. Or, if you'd like to use it in the shop, you can also slip it into the benchtop base of the Kreg K3 and K4 jigs (#27204, sold separately) for upright drilling.

Features:

  • Designed with the same tried-and-true efficient design and hardened steel drill guides as the original Kreg Jig®
  • The Kreg Jig® HD lets you drills holes which are 25% larger, and joints that are an amazing 50% stronger than traditional Kreg joints
  • The Kreg Jig® HD is optimized for working with 2x4s and larger stock - anything 1-1/2" thick or thicker
  • Utilizes #14 industrial-quality, heavy-duty, hardened-steel screws, which provide incredible shear resistance as well as 3 anti-corrosion layers for incredible long-term moisture resistance
  • The Kreg Jig® HD works great as a stand-alone jig; simply connect it to your Kreg Face Clamp (#26613, sold separately), lock it into place, and take it wherever you need to go
  • Depending on the project, the Kreg Jig® HD can also connect directly to your model K3 or K4 Kreg Jig® benchtop base (#27204, sold separately) for upright drilling

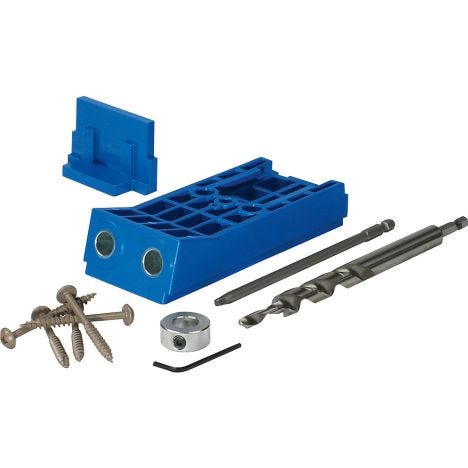

(1) Kreg HD Pocket Hole Drill Guide
(1) Stop Block
(1) 1/2" Diameter HD Stepped Drill Bit
(1) HD Stop Collar and Allen Wrench
(1) 6" HD Driver Bit
(1) Starter Screw Set
More Information
Brand Kreg
Manufacturer Part Number KJHD
Weight 1.3500
Type Concealed
4.9 / 5.0
38 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
35
3
0
0
0
Easy and strong.
Used to install a bannister newell. Couldn't find extra long screws so had to find alternatives. The combo of the regular HD screws and longer lag screws worked well. Rock solid
Alternated screws and tested first.  Sleeve covers all so no plugs needed
Alternated screws and tested first. Sleeve covers all so no plugs needed
June 29, 2019
Purchased
1 month ago
Woodworking Experience:
Intermediate
Works great!
Easy to use and makes a very strong joint. Will be using it on many projects I plan on making.
May 22, 2019
Purchased
2 months ago
Woodworking Experience:
Beginner
Comes in handy
Good for my application
March 19, 2019
Purchased
4 months ago
Woodworking Experience:
Advanced
Great HEAVY DUTY connection system
Decided to purchase this product to build a farm table for my daughter. I considered using a "standard" Kreg pocket hole system, but due to the 2x* lumber I intended to use, the project begged for a more substantial connector system. This Kreg HD system was just the ticket. I have gone on to use it to build aquarium stands for large volume aquarium (125 gallons and larger) which at 8.3 pounds for gallon they offer great strength. Got a large project? This system is for you.
February 25, 2019
Purchased
5 months ago
Woodworking Experience:
Intermediate
Works well, would highly recommend to others and the price is comparable.
February 25, 2019
Purchased
5 months ago
Woodworking Experience:
Advanced
Excellent tool
August 11, 2018
Purchased
1 year ago
Woodworking Experience:
Advanced
Must have Tool
These tools are must haves! I used them for building a outdoor table and bench seats, and this tool worked great joining 4x4's and also the table top to 4x4 base.
July 16, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Farmhouse Bench
The Kreg Jig HD works great.
User submitted image
User submitted image
User submitted image
June 28, 2018
Purchased
1 year ago
Woodworking Experience:
Advanced
Awesome!
Just what it takes to do some of my home projects.
Thanks!
June 24, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
A great addition to the Kreg product line
Kreg's HD system is a great way to assemble projects made with two by material. Easy, quick, secure.
2x6 redwood bench.  Assembled with Kreg's HD system.
Screw access filled with 1/2 inch cherry dowel, cut off flush and sanded.
June 6, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 8 questions Browse 8 questions and 46 answers
Why did you choose this?
Rockler Store
For 2x4 projects.
GLEB L on Jul 4, 2019
Needed to build outdoor furniture with 1 1/2" material
Todd B on May 23, 2019
For 2x4 projects.
GLEB L on Jul 4, 2019
I have a Kreg Foreman for up to 1.5" material but need to make pocket holes in 4" material.
Philip A on Jun 14, 2019
Needed to build outdoor furniture with 1 1/2" material
Todd B on May 23, 2019
to use on 2 x 4 studs for wall
Lester T on May 19, 2019
building some outdoor planters
Michael Y on Jan 26, 2019
using 2x6 lumber for rafters extending the ridge line.
Thomas W on Jul 3, 2018
Saw it advertised in Family Handyman magazine.
William M on Mar 17, 2018
I have other Kreg Jigs and I like using them.
Larry T on Mar 9, 2018
To make holes in Pressure Treated lumber 4x4s and 2x4s for an outdoor table.
mauricio g on Sep 16, 2017
Not sold locally by the big box stores
John M M on May 24, 2017
learned about it on a DIY website instructions to build a coffee table
Donald Joseph M on Mar 25, 2017
2 by 4's
ken b on Mar 9, 2017
I needed to add a heavy duty unit to my Kreg system to accomplish some balcony upgrades.
Robert R on Feb 17, 2017
My son wanted one.
Patricia C on Dec 12, 2016
Working with 2 by 4 stock
JOSE U on Nov 15, 2016
This is perfect for 2x4 and 4x4 furniture building.
Todd W on Sep 16, 2016
This system provides easy, strong joints with 2X4 stock.
John B on Sep 5, 2016
I have some 2x4 framing projects coming up. Going to add these to my K4 system.
Larry M on Aug 9, 2016
Will be using pocket screws on a 4x4 board
Alan G on Jul 16, 2016
Building a table with 4 x 4 legs so I needed extra enforcement. I have had vey good luck with other Kreg products in the past.
David C on Mar 27, 2016
I have been using standard pocket hole screws and glue to install blocking between joists in tight situations and I worry that the screws aren't really strong enough, then I saw these in the catalog! And it fits in my K4 jig! So I ordered them right away.
JOHN D on Dec 27, 2015
good product
Ova L on Dec 6, 2015
It's for larger wood like 2x4s
MICHAEL K on Nov 8, 2015
To use for fence and car port
Thomas B on Oct 30, 2015
Christmas
Bernita B on Oct 20, 2015
The shop asked for it
Peter V on Oct 7, 2015
do lots of outdoor furniture
Arland J on Sep 2, 2015
Based on previous experience with Kreg tools, I thought this would be a good addition to my tool collection, and help with some upgrades to my deck.
Charles W on Aug 21, 2015
special price
John W on Jul 27, 2015
To build a fence
DAVID A on Apr 24, 2015
I have a Kreg Foreman for up to 1.5" material but need to make pocket holes in 4" material.
Philip A on Jun 14, 2019
to use on 2 x 4 studs for wall
Lester T on May 19, 2019
Will this work with 1x stock also?
Jon H on May 11, 2015
BEST ANSWER: No, the Kreg Jig® HD is optimized for working with 2x4s and larger stock - anything 1-1/2" thick or thicker.
It's not clear from the picture but how is it held in place on the workpiece?
A shopper on Jun 15, 2015
BEST ANSWER: I use the kreg face clamp when making furniture. With the combination you can't beat it.
I am building a farmhouse table out of 2X6s for top and aprons. Is the HD unit better for this or the smaller unit?
Chip S on Nov 6, 2016
BEST ANSWER: I would use the HD with 2x6s. I have built several Cedar above ground garden boxes using the HD system. They are 3 years old and have been outside for a few years and show no signs of any issues with the HD screws. Your table should be fine and the additional size and strength of the HD system should work well with the table since I expect you will be using it inside. Let me know if you have any additional questions

--Danny
how do you use the jig in wood more narrow than 2x4. I need to join 2x2 to 2x4 and can't figure how to use the jig on this narrow a board.
HARRY R on Feb 11, 2016
BEST ANSWER: Try clamping 2 2X2s together the use the jig as if it was a 2X4. Just ensure the jig is center over the 2X2 the 2X2 you need.
what about using hd kreg screws to attach breadboard on outdoor table ?
Ken D on Jul 18, 2015
BEST ANSWER: Kreg HD screws are very aggressive, especially in softwoods. Is breadbod sotwood or hardwood?
So, depending on the density/tjickness of your breadboard, Kreg screws should work for you.

Ken Anderson
I thought I had seen in another dealer's ad that the HD system would work in the K3, K4, and K5 systems, but in this description the K5 is not listed. Will the HD unit work in the K5 or not?
Norman H on Dec 8, 2016
BEST ANSWER: Hey Norman,

Yes, this will work with the K3, K4, and K5 systems. The drill guide block on all three are the same so the HD System can slide into the drill guide blocks place.

Thank You,
Josh
does anyone sell the pocket plugs for the XD size holes?
Ed J on Apr 4, 2016
BEST ANSWER: I haven't had a need for them, so I never looked. But I would think if anyone would know it would be Kreg
