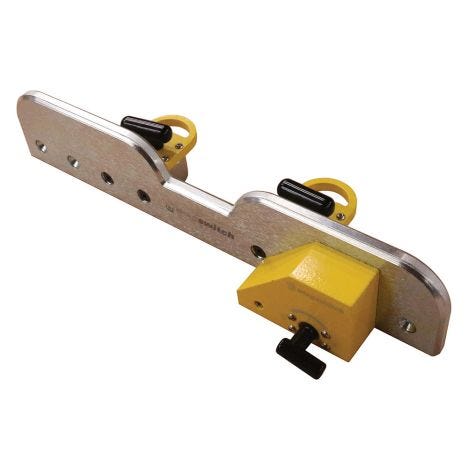

Magswitch Drill Press Fence

Powerful switchable magnets allow easy positioning and removal of both fence and stop—fits small- to medium-sized drill presses.

Item #
70809
$208.00 Each
In stock

Get Expert Advice

Return Policy

With the Magswitch Drill Press Fence, you get easy positioning of the fence with a quick turn of one or both magnetic switches. Best of all, if you need to remove the fence, a common requirement for large work, it's every bit as easy. Just rotate the magnetic switches and remove the fence—there is no need to unscrew any lengthy bolts. The fence includes a magnetic stop block that can be positioned anywhere along the face. Fence face measures 13'' long x 2-1/2'' high—a perfect fit for small- to medium-sized drill presses.

Features:

  • Powerful magnets allow quick positioning, fine adjustments, and make it easy to remove and store when not needed
  • Mounting magnets can be positioned at different points on the fence for optimal placement on various small drill press tables
  • Sturdy vertical plate will not interfere with the drill chuck, even when drilling close to the fence
  • Stop block can be quickly positioned flush with the drill press table or sacrificial material under the workpiece, and stores on the back when not needed
  • Fence face measure 13'' long by 2-1/2'' high

Magswitch Drill Press Fence
(1) Fence plate
(2) Fence plate magnets
(1) Magnetic stop block
(1) Replacement rubber gasket for fence magnets

More Information
Brand Magswitch
Manufacturer Part Number 81101375
Weight 5.000000
Tech Spec Tech Specs:
  • Brand: Magswitch
  • Manufacturer Part Number: 81101375
  • Fence Face Dimensions: 13'' long x 2-1/2'' high
  • Maximum Breakaway Force: 291.01 lbs / 132 kg
  • Maximum Shear: 41.89 lbs / 19 kg
  • Full Saturation Thickness: 0.24'' / 6 mm
  • Overall Height (Max): 2.50'' / 63.50 mm
  • Overall Length: 12.99'' / 330 mm
  • Overall Width: 2.72'' / 69.15 mm
  • Net Weight: 4.41 lbs / 2 kg
  • Magnetic Pole Footprint: 1.57 x 1.22 (2x)'' / 40 x 31 (2x) mm
