Next Wave 20 Watt Laser Kit for HD500 Series CNC Shark

Powerful 20-watt laser is capable of engraving and cutting a variety of materials—compatible with all HD500, HD510, and HD520 machines.

Item #

As low as $1,199.00

Direct Ship
$1,199.00   Next Wave 20 Watt Laser Kit for HD500 Series CNC Shark (76027)



    Get Expert Advice

    Return Policy

    Next Wave's 20-Watt Laser System is a powerful laser attachment that is compatible with all CNC Shark HD500, HD510, and HD520 machines. It is capable of both engraving and cutting through a variety of materials, including cutting solid wood up to 12mm (about 1/2'') in a single pass. Using the included mounting bracket and the latest firmware, the 20-Watt Laser System allows you to carve and engrave with only a simple toolpath change. The 20-Watt Laser System is fully compatible with V-Carve and Ready2Raster.

    Next Wave 21220 20 Watt Laser Kit Details:

    • Cuts solid wood up to 12mm thick in one pass
    • Cuts acrylic up to 8m thick in one pass
    • Engraving with 1024 points of gray scale
    • Quad-core 20W diode laser and fully integrated controller
    • Automatic offset allows CNC carving & laser combinations
    • Built-in powerful air assist kit

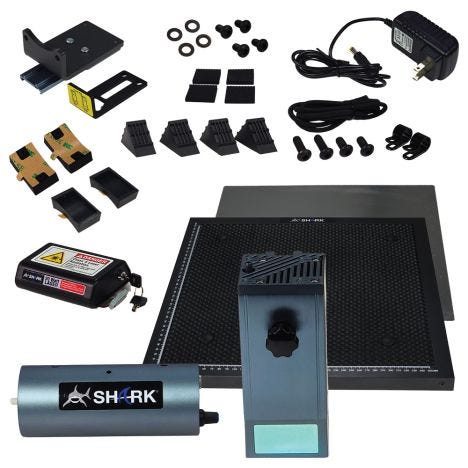

    Next Wave 20 Watt Laser Kit for HD500 Series CNC Shark
    (1) Laser Assembly
    (1) Air Assist Pump
    (1) Laser Cutting Bed
    (1) CNC mounting kit
    (1) Hardware Pack

    Rockler Protection Plan

    With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.

    Standard Manufacturer's Warranty: 12 months

    More Information
    Brand Next Wave
    Manufacturer Part Number 21220
    Tech Spec
    • Brand: Next Wave
    • Manufacturer Part Number: 21220
    • Laser Wattage: 20W
    • Compatible CNC Machines: HD500, HD510, and HD520
