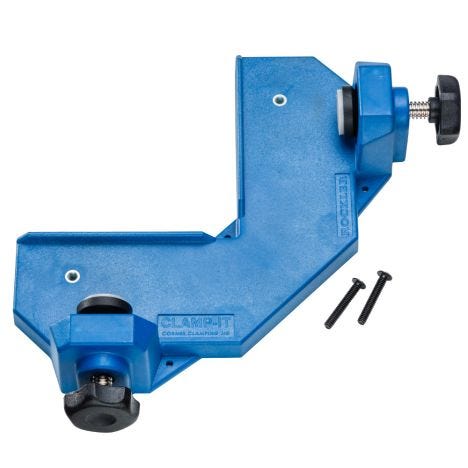

Rockler Clamp-It Corner Clamping Jig

Firmly holds panels at a precise right angle, freeing up your hands so you can drive fasteners.

Item #
$24.99 ea
In stock
Save More
save 10% When you buy 4 or more ( $22.49 ea )
save 15% When you buy 8 or more ( $21.24 ea )

Get Expert Advice

Return Policy

Struggling to hold cabinet parts in alignment while driving fasteners can be an exercise in frustration, and if you're using a nail gun, downright dangerous. The Rockler Clamp-It Corner Clamping Jig eliminates that frustration by providing another set of ''hands'' to hold your parts together. It's used with the enormously popular Clamp-It® (#29190, sold separately) to hold panels at a precise right angle for fastening. Used in sets of four, the jigs are supportive enough to hold an entire case assembly as it is being assembled. The clamps have soft pads to prevent workpiece marring. Mounting holes in the jig allow for attachment to your work surface.


  • Extra-wide base, high walls and strong Acme threaded clamp screw hold panels securely
  • Thick cushioned pads to prevent marring
  • Durable glass-filled polycarbonate construction
  • Mounting holes allow for attachment to work surface for creating assembly jigs
  • Jig holds panels exactly 3/4'' off the work surface so you can use scrap boards to support other corners if using only one jig at a time
  • Requires Clamp-It for 90° assembly (#29190, sold separately)
  • Clamp-It is screwed to jig with included screws

(1) Rockler Clamp-It Corner Clamping Jig
(2) 1'' Screws for Attaching Clamp-It (#29190, sold separately)

More Information
Brand Rockler
Weight 1.500000
Tech Spec
  • Material: Glass-filled polycarbonate
  • Required Accessory: #29190 Clamp-It (sold separately)
  • Max Panel Thickness: 1''
