Blum® Aventos HK-XS Door Lift/Stay for Face Frame Cabinets

Keeps upward swinging doors from slamming shut—stays open in any position so both hands are free.
Item #
GRP40486
Grouped product items
Product Price Qty
Blum® Aventos HK-XS Door Lift/Stay for Face Frame Cabinets, Low-Strength Item #59545
In stock
$25.99 Each
Save More
save 10% When you buy 10 or more ( $23.38 Each )
Blum® Aventos HK-XS Door Lift/Stay for Face Frame Cabinets, Medium-Strength Item #53665
In stock
$25.99 Each
Save More
save 10% When you buy 10 or more ( $23.38 Each )
Blum® Aventos HK-XS Door Lift/Stay for Face Frame Cabinets, High-Strength Item #55064
In stock
$25.99 Each
Save More
save 10% When you buy 10 or more ( $23.38 Each )

Get Expert Advice

Return Policy

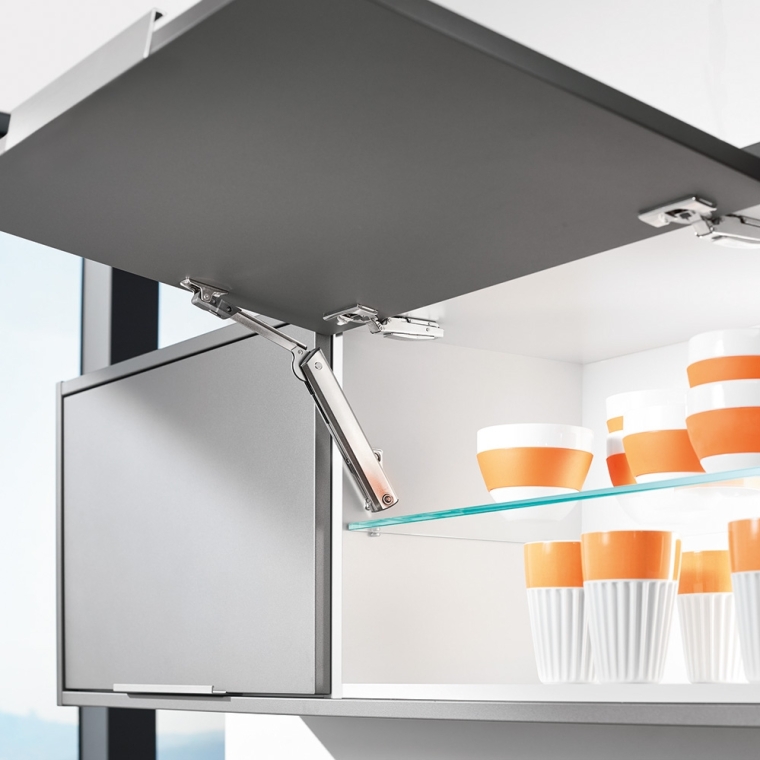

With Aventos HK-XS, opening upward swinging cabinet doors couldn't be any simpler. Just open the door, and it stays open at any angle so you can use both hands to lift out the items you need. With the door up and out of the way, you get an unobstructed view and full access to the cabinet interior. The lift mechanism is easily fine-tuned to the weight of your door with just a screwdriver (see Technical Details for how to select the proper lift strength). Once adjusted, it will hold any position, every time. These convenience packs from Rockler include everything you need for installation: lift mechanism, mounting brackets and screws. They are intended for face frame cabinets, and include the appropriate brackets for attachment to the face frame. The lifts are sold singly, and each can be mounted on either the left or the right. Hinges are sold separately; we recommend either CLIP top BLUMotion or Compact BLUMotion hinges.


Features:

  • Ideal for short upper cabinets and cabinets with low internal depth, e.g. above the oven hood
  • Door stays open at any position, ensuring that it won't rise up out of reach
  • Allows full access to the inside of the cabinet
  • Easy assembly; simple fine tuning
  • Symmetrical design can be used on one or both sides of the cabinet, depending on your needs
  • Use with CLIP top BLUMOTION or COMPACT BLUMOTION hinges (sold separately) for silent and effortless closing

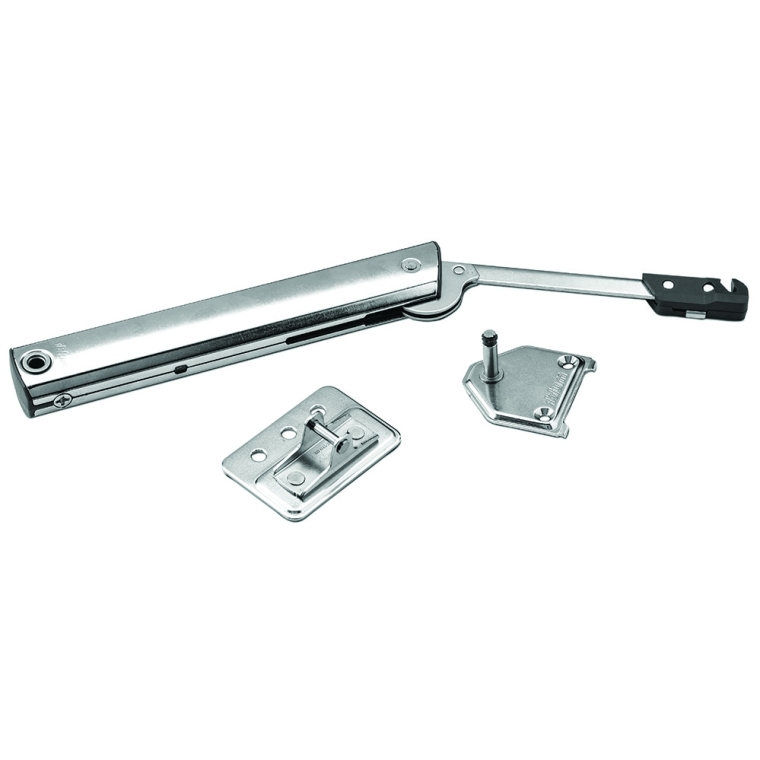

(1) Aventos HK-XS Door Lift/Stay for Face Frame Cabinets
(1) Face frame mounting bracket
(1) Door mounting bracket
(1) Pack of mounting screws

More Information
Tech Spec
  • Compatible Cabinet Type: Face frame
  • Door Height Range: 9-3/8'' to 24'' high
  • Maximum Door Width: 72'' wide
  • Minimum Interior Cabinet Depth: 5'' deep
  • Compatible Hinges: CLIP top BLUMotion or Compact BLUMotion

Which lift strength should I choose?
To select the correct lift strength for your door size, calculate your ''Power Factor'' using the formula and example below. Power Factor = Door height x Door weight (door weight must include twice the handle weight) Example:
  • Door height = 15'' (must be within compatible range of 9-3/8'' to 24'')
  • Door weight plus twice the handle weight = 9.9 pounds
  • 15 x 9.9 = 148.5, this is your ''Power Factor''
  • Using the guide below, a Power Factor of 148.5 requires one High-Strength lift, or two Medium-Strength lifts

Power Factor (1 lift):
  • 17 to 60 — Low-Strength lift
  • 61 to 112 — Medium-Strength lift
  • 113 to 156 — High-Strength lift

Power Factor (2 lifts):
  • 34 to 120 — Two Low-Strength lifts
  • 121 to 224 — Two Medium-Strength lifts
  • 225 to 312 — Two High-Strength lifts
