Blum 95° Face Frame Thick Door Hinges, 5/8'' Overlay

Item #
56118
These hinges are built to handle doors up to 1-3/16'' thick—ideal for doors with added molding around the edges. More details
$22.99
Buy 10 or More, Receive 10% Off Each
Discount automatically applies in cart.
How do you want your item?
Delivery
Check In-Store Availability
As soon as today
As soon as today
Check availability in your nearest store

Expert Advice

Mastering woodwork: Expert insights revealed

Contact Us

Satisfaction Guarantee

Enhance your product’s protection and durability

Click Here

Family Run

Passion passed down through generations

Read More

Crafting with Wood: Turn Your Ideas into Reality

Create with wood! Our premium materials make your projects come to life...Read More

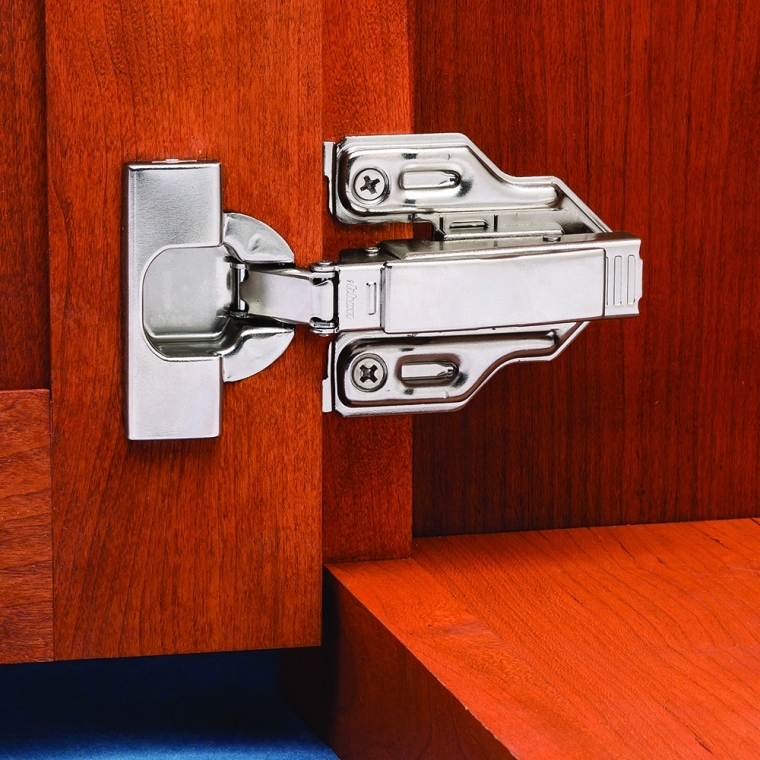

If your doors are thicker than the standard 3/4'', these are the hinges for you. They can handle doors from 3/4'' up to 1-3/16'' thick. The hinge travel is specifically designed to prevent the binding that would otherwise result from the additional thickness. In addition, they feature convenient three-way adjustability with easy height adjustments thanks to the parallel-movement mounting plate. Simply turn one screw for easy parallel height adjustments. No tools are required to mount and dismount the cabinet doors, and your adjustments remain in place even when you remove the door. Clip Top hinges include sleek metal caps to cover both the hinge arm and the cup mounting screws.

See the optional Blumotion Soft Close System for silent, cushioned door closure.

  • Snap close feature self-closes at the end of the door's travel—no need for catches
  • 3-way cam adjustability for consistent reveals and perfect alignment
  • Clip-on mounting and demounting—remove and reinstall the doors in seconds without tools
  • Nickel finish

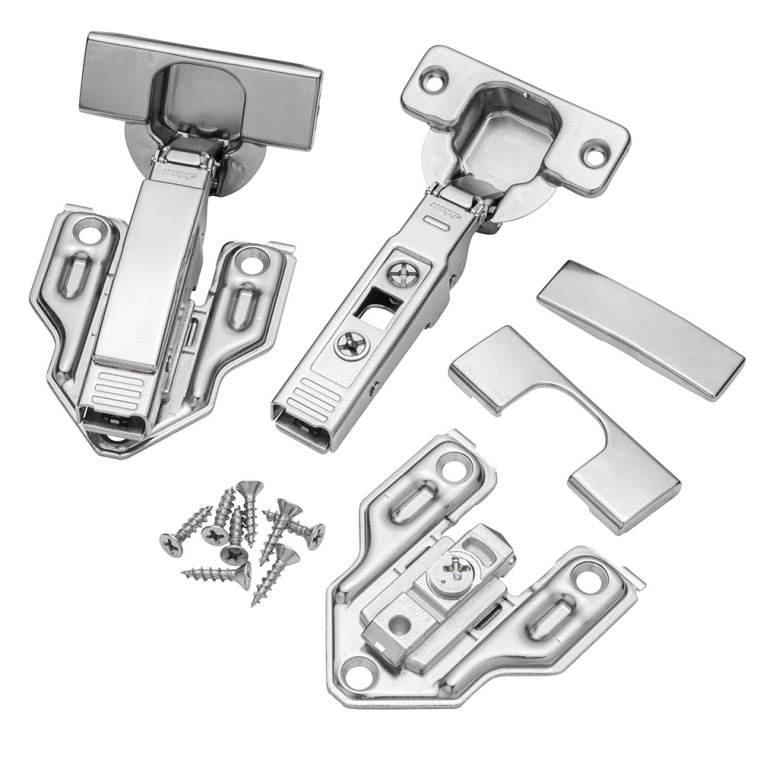

(2) Blum 95° Face Frame Thick Door Hinges with Mounting Plates, 5/8'' Overlay

More Information
Brand Blum
Weight 0.60
Tech Spec
  • Cabinet Type: Face Frame
  • Opening Angle: 95°
  • Overlay: Choose from 1/2'', 5/8'' or Inset
  • Movement: Snap Close
  • Finish: Nickel
  • Tab: 5mm
  • Cup Diameter: 35mm
  • Cup Depth: 12.7mm
  • Min. Door Thickness: 19mm
  • Max. Door Thickness: 30mm
  • Adjustments: 3-way cam
  • Gap: 1mm
  • Demountable: With clip
  • Min. Reveal: 0.4mm
Unit of Measure Pair
Opening 90 - 120 Degree
