$27.99 Pair
In stock

Cedar Chest Hinge and Lid Support

Item #
28217
Rating:
70% of 100
Cedar Chest Hinge and Lid Support Cedar Chest Hinge and Lid Support
Cedar Chest Hinge and Lid Support
Frequently bought together
  1. Cedar Chest Hinge and Lid Support
  2. +
  3. Half Mortise Heavy Duty Chest Lock
Total price: $0.00

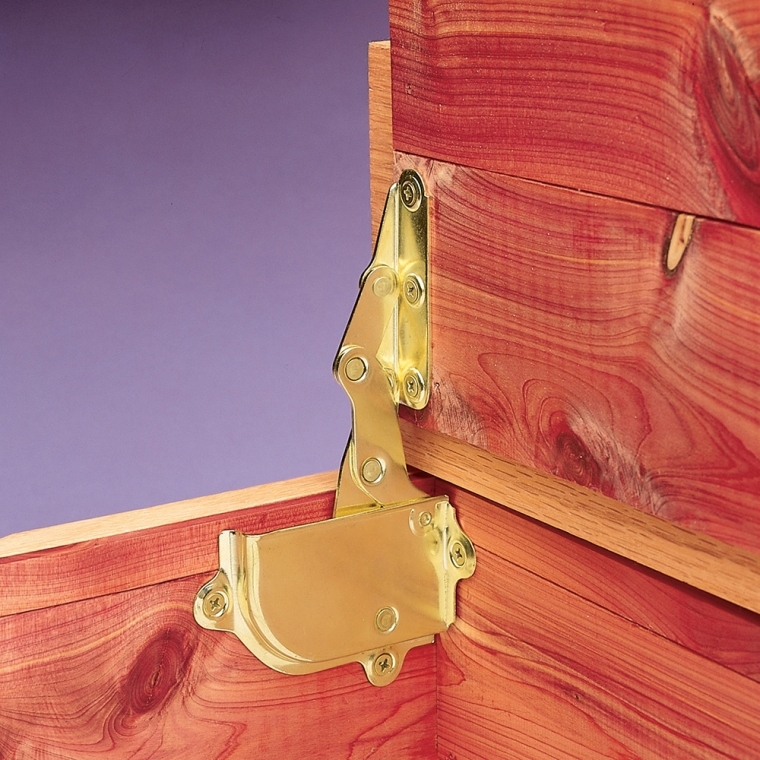

This classic chest hinge integrates a lid support, making it the ideal choice for a lid hinge on cedar chests, blanket chests or hope chests. Lid stays engaged at approximately 95°. Hinge is sturdily constructed from brass plated steel. Mounts to side of case and underside of flat lid. Includes one left and one right hinge, plus matching screws.

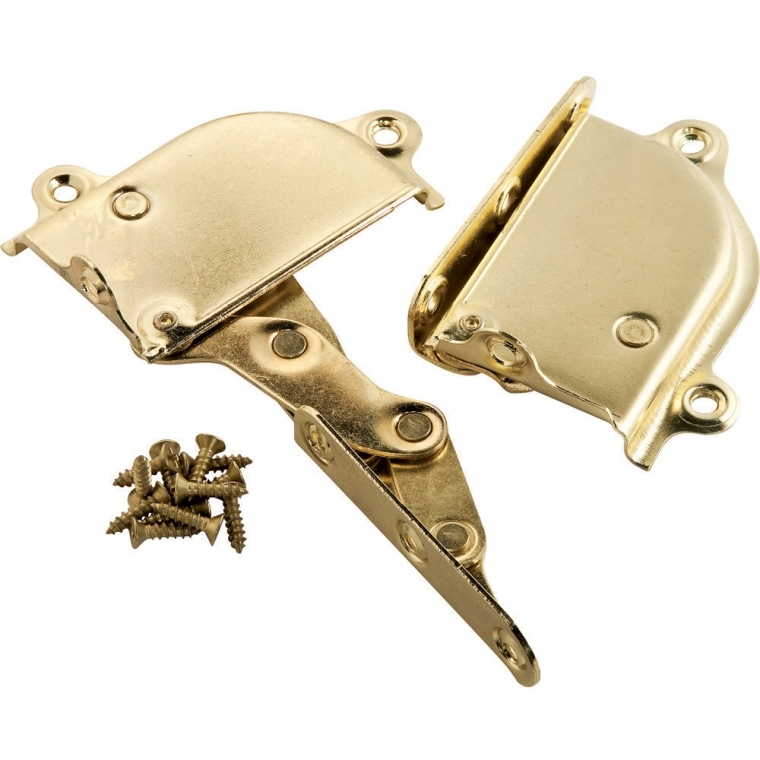

(1) Left-hand chest hinge
(1) Right-hand chest hinge
(1) Package of 1/2" x #7 flat-head brass screws
More Information
Brand Rockler
Weight 0.5500
Tech Spec
  • Combines hinge with lid support – saves you the expense of lid stays
  • Top stays open at 95 degrees
  • Includes one left and one right hinge and screws
  • Compound action pushes lid up and rearward
  • Stamped from brass-plated steel
  • For use on flat-top lids only
  • Not a soft-down support, not approved for toy boxes
  • Measures 3-1/4"W x 2-3/4"H x 3/8" thick
Technical Documents
Finish Brass
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

3.6 / 5.0
38 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
12
11
7
3
5
Built Cedar chests for my daughters, these hinges are sturdy the best I’ve found for this kind of chest. I would definitely recommend these Hinges and will use again when I build another chest for our house..
December 15, 2018
Purchased
3 weeks ago
Perfect hinge
This dual purpose hinge is the perfect item to use for a small utility box (cat litter holder, plastic bags, cat litter scoop,etc.
November 2, 2018
Purchased
2 months ago
Woodworking Experience:
Intermediate
Rock Steady!
They were just what the builder needed!
August 15, 2018
Purchased
1 year ago
Woodworking Experience:
Advanced
They worked great. Will order more as I need them. Used for a cedar chest box.
June 19, 2018
Purchased
6 months ago
Support hinge
These are very nice hinges. Easy to install and very solid
February 8, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
Great product
Great product, look great and work fantastic, but that is what I have come to expect from Rockler products.
September 11, 2016
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
hinges were easy to install and worked great!
August 4, 2016
Purchased
over 2 years ago
Woodworking Experience:
Advanced
Rockler's cedar chest hinge and lid support is the only one I have used over the last 35 years. They are durable and easy to apply.
July 29, 2016
Purchased
over 3 years ago
Holds my lid great with no other attachment. A pair of these is the only support for a 51 x 18 lid of solid Kentucky-bean wood
March 2, 2016
Purchased
over 3 years ago
Hinges arrived promptly and in good condition, easy to install and worked well.
April 30, 2015
Purchased
over 3 years ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 12 questions Browse 12 questions and 77 answers
Why did you choose this?
Rockler Store
They will work the best and give chest a better closing fit
Dennis R on Dec 12, 2018
Replacement for refinishing project
Paul H on Nov 28, 2018
They will work the best and give chest a better closing fit
Dennis R on Dec 12, 2018
Original hinge broke same hinge hopefully this ones better
Brian M on Dec 10, 2018
Replacement for refinishing project
Paul H on Nov 28, 2018
redoing a antique mahogany chest
Raymond S on Oct 29, 2018
My grandfather built me a cedar chest 32 years ago and the hinges have failed - lid too heavy. My Uncle Kevin ... recommended this type of hinge to me. So here I am!
Karen B on Jul 22, 2018
making a hope chest
WILEY RANSOM J on Jun 9, 2018
Rebuilding family cedar chest
tom m on May 16, 2018
The original was not sturdy and could bend. This looks like what I need
Frank J B on Apr 8, 2018
NEED A NEW HINGE FOR A CEDAR CHEST. AND LOOKS NICE.
Jim P on Mar 6, 2018
easy to install,, best if chest is big enough so person can be inside chest and mark lid for screws while lid is in correct position. hinges will hold lid in full open position..
DALE h on Feb 10, 2018
I make cedar chests and have used these before and prefer them for my projects
Ward F on Feb 10, 2018
I am making a cedar hope chest. I hope these will work with my design for the top lid.
Anthony C on Jan 10, 2018
I am building a blanket chest.
Larry B on Dec 1, 2017
Taking a woodworking class and instructor suggested looking at Rockler.
Timothy H on Nov 18, 2017
am building a cedar chaest
Peter R on Nov 12, 2017
I am repairing an old chest
Abraham R on Nov 3, 2017
needed to finish hope chest for a friends daughter. wasn't sure I could find the same hinges that were on a similar chest that was made 40 years ago. they are almost a perfect match. thanks
charles j on Sep 28, 2017
building grand daughters cedar hope chest
donald b on Aug 15, 2017
This is what I chose to use on the blanket chest I am making. I didn't want the chain hinge so I purchased this!
Donna M S on Aug 7, 2017
Need them for the 80 inch chest I'm building.
Wayne W on Jul 24, 2017
Looks like what I need
LEROY J on May 28, 2017
used them before worked great
Dennis C on Apr 10, 2017
I am making a cedar chest for my daughter and this hinges work great I have used them before.
Mark N on Apr 8, 2017
I needed it
Florence O on Mar 28, 2017
constructing a cedar chest for donation
Jack L on Mar 2, 2017
Just what I was looking for on a hope chest
Dennis M on Feb 26, 2017
Repairing a chest for my friend and they have the wrong hinge style in place. Want it fixed correctly.
Scott E on Feb 23, 2017
traditional
James B on Feb 11, 2017
This hinge serves the purpose of hingeing the top of the chest and also holds it open, no need for additional lid supports.
Garland W on Jan 23, 2017
Looks like it's what I need, appears to be simple, cost effective and has other positive reviews.
Paul Z on Jan 19, 2017
I needed them for a project
Michael W on Nov 28, 2016
Exact match to 80 + year old chest hinges.
Charles R on Oct 30, 2016
They work well.
Maryann H on Oct 30, 2016
I have used these hinges before.
Vergil D on Oct 16, 2016
My previous experience with Rockler has been good. Also I have used this item(s) in the past.
Wayne B on Oct 7, 2016
they work great I have made three chest
Dale K on Oct 6, 2016
This is a replacement for the original hinge on my cedar chest. The original hinge never kept the lid open reliably. This should solve the problem once and for all.
Kathleen C on Oct 4, 2016
Looks easy to install.
Robert O on Aug 30, 2016
I have built a chest and hope this hinge will work with my design for the lid.
Brad B on Mar 14, 2016
Wanted to insure that lid will not slam shut
Jeffrey R on Mar 3, 2016
Combined hinge and lid support, looks to be the easy way to mount lid. Hope it works as well as expected.
Dale M on Feb 19, 2016
To replace missing hinges
Tracy O on Feb 9, 2016
Building cedar chest for my daughter for Christmas and a friend suggested these.
Matthew H on Dec 11, 2015
I already used this hinge on a blanket chest I made for my wife and she loves it.
Brian K on Nov 19, 2015
trunk
KEITH R on Nov 1, 2015
I am building a cedar chest and these hinges will work just fine
Patrick A on Jun 27, 2015
To replace hinghe on old cedar chest.
Patricia C on Jun 20, 2015
I've been searching for this hinge for quite some time
Leslie T on Jun 9, 2015
I'm gearing up to make several cedar chests and decided to try this in lieu of my traditional piano hinges. Appears to solve two problem at one time. Hinges and lid support. I'll keep you posted on how it goes.
Leo F on May 9, 2015
they had what I needed !
Orlando V on Apr 26, 2015
Original hinge broke same hinge hopefully this ones better
Brian M on Dec 10, 2018
redoing a antique mahogany chest
Raymond S on Oct 29, 2018
The technical manual shows the open position to be slightly forward. I thought 95 degrees of movement would have the lid leaning slightly past straight up so the lid would not be prone to slamming shut. So does the lid lean to the front or back when fully opened?
TimBo266 on Dec 9, 2015
BEST ANSWER: The hinge holds the lid firmly in the open position at 90 degrees. I have used this hinge on four cedar chest with no problems. It must be installed properly however.
What is the maximum thickness of the lid? Can I get away with these with a 1.25" thick lid and 3/4" back to a bench?
Jeff McCrum on Dec 9, 2016
BEST ANSWER: yes you can. Thickness is not a factor. Be sure to position them so no gap is between the lid and back of the bench when closed.
what is the maximum amount of weight that these can support safely?
Robert on Mar 10, 2016
BEST ANSWER: The amount of weight should not exceed more than the screws in the lid can hold.
there should not be any problem with the side screws holding the weight of the lid
and a box shelf loaded.
I have a Roos cedar chest with no inside hinges. Do you have them?
Ketrena G on Feb 9, 2016
BEST ANSWER: Yes I have them. What do you need to know about this type of hinges?
Do you need to use hinges with these lid supports?
Bob L on Oct 9, 2015
BEST ANSWER: No Bob, the work as both the hinge and the support. I used a pair on a heavy solid oak hope chest lid and they work just fine.
Can these hinges be used by themselves on a chest or are other hinges needed?
Aaron E on Nov 4, 2018
BEST ANSWER: Aaron E. sorry about the late reply. No this is the only hinge you will need. they come in a pair . Left and right . very easy to install. Roscoe S. the manufacture does have problems with them on occasion but i really like them.
The lid of the chest extends 1/2" all around from the chest. Can not get the hinge to fit?
Martin R on Apr 17, 2017
BEST ANSWER: The answer is no. The back of the lid must be flush with the back. the lid can extend to either side and front. Bob
Is the cedar chest hinge also a friction hing?
Hugh R on Apr 4, 2018
BEST ANSWER: If you mean by friction hinge that the hinge stays open at any position like the rockler torsion hinges meant for toy chests/blanket chests, the answer is no. This hinge has a stop somewhere past ninety degrees where it stays in the completely open position, but once it is on its way back down, there is nothing stopping it from closing. Hope this helps.
how wide is this hinge from the side of the chest to the inside of the hinge?
Dennis M on Feb 25, 2017
BEST ANSWER: 1 1/8''. If I understand your question correctly.
is the hinge sturdy enough to support someone sitting on top of the chest?
Richard S on Apr 28, 2017
BEST ANSWER: When the lid on my chest is closed, there is no pressure on the support at all. The lid rests on the sides of the chest on small rubber bumpers so it can support a person sitting on it just fine.
when I tried to fix the lid to the box when the lid closes there is a frontward movement of the top. Leaves an uncovered .5 inch gap on the back so the back wall of the box does not match up. When I try to move the lid and reposition then it hits the upper back wall. Why?
Steven M on Apr 9, 2018
