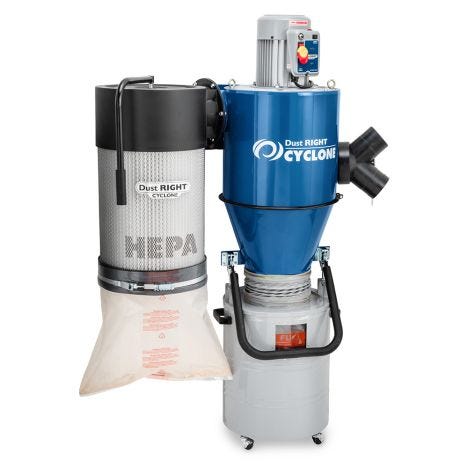

Dust Right Wall-Mount HEPA Cyclone Dust Collector, 1250 CFM

Enjoy powerful dust collection, HEPA filtration and two-stage cyclonic dust separation, all in a space-saving wall-mount configuration!

Item #
BMX00007
$1,699.99
Additional Shipping and Handling Charge: $100
In stock
$1,699.99   Cyclone Box 1 (67182)
$0.00   Cyclone Box 2 (65054)

$1,699.99

Summary

    Get Expert Advice

    Return Policy

    If you're short on floor space, but want all the features of a top-of-the-line dust collector, our 1250 CFM Cyclone Dust Collector is the perfect fit. Thanks to its wall-mount design, it consumes a minimum area of floor space. HEPA filtration ensures that the air in your shop is clean, and 2-stage dust separation keeps the filter clean for longer, and minimizes the need to empty the drum. Filter is easily accomplished by rotating the top handle. When the time comes to empty the drum, simply raise the lower handle and roll the drum away on its casters. An included remote makes it easy to activate the collector from anywhere in your shop.

    Details:

    • Powerful 1-1/2HP motor generates 1250 CFM of suction and plugs into a standard 120V outlet
    • Premium HEPA canister filter captures 99.97% of dust particles down to 0.3 microns in size
    • Built-in cyclone provides two-stage dust collection, separating fine dust from larger particles to prevent loss of airflow caused by a prematurely full bag
    • Debris captured by cyclone falls into 20-gallon drum that engages and disengages with large lever handle
    • Y-adapter inlet lets you connect two 4'' hoses—for example, one for a plumbed line to your tools and another for a flexible hose for shop cleanup
    • Included remote provides easy on/off from anywhere in your shop (battery not included)
    • Wall-mount design conserves floor space, and anti-vibration pads reduce noise and vibration
    • Canister filter features crank-style handle to clear dust off the pleats, and a removable, reusable plastic bag for easy emptying
    • Drum rolls on casters for easy access; interior bag is supported by interior frame and empties easily

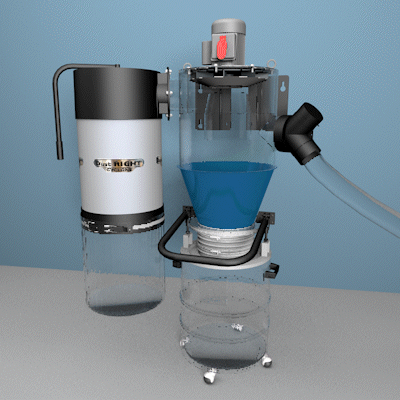

    HEPA Cyclone Gif

    Dust Right Wall-Mount HEPA Cyclone Dust Collector, 1250 CFM
    (1) 1250 CFM Dust Collector
    (1) Canister Filter
    (1) Inlet Y-Adapter
    (2) Hose Clamps
    (1) 20 Gallon Drum
    (4) Drum Casters
    (2) Vibration Dampeners
    (1) Canister Filter Plastic Bag
    (1) Drum Plastic Bag
    (1) Remote Control

    More Information
    Brand Rockler Dust Right
    Tech Spec
    • Brand: Dust Right
    • Manufacturer Part Number: TA69982
    • Overall Assembled Dimensions: Approximately 42''W x 19''D x 61''H
    • Motor: 1-1/2HP; 12A; 115V
    • Motor Speed: 3,420 RPM
    • Suction Capacity: 1,250 CFM
    • Static Pressure: 8'' H2O
    • Impeller Size: 13''
    • Inlet Size: 6''; includes 6'' Y-Fitting with two 4'' openings
    • Net Weight (box 1): 100 lbs.
    • Net Weight (box 2): 23 lbs.
    • Gross Weight (box 1): 111 lbs.
    • Gross Weight (box 2): 31 lbs.
    • Drum Capacity: 20 gallons
