In stock
Grouped product items
Product Name Price Qty
 D x H x 1/4" Shank Freud #89-660 3-Pc. Undersized Plywood Set Bit
D x H x 1/4" Shank Freud #89-660 3-Pc. Undersized Plywood Set Bit Item #: 48923
In stock
$53.97
Each
 D x H x 1/2" Shank Freud #89-670 3-Pc. Undersized Plywood Set Bit
D x H x 1/2" Shank Freud #89-670 3-Pc. Undersized Plywood Set Bit Item #: 45083
In stock
$61.47
Each

Freud® 3-Pc. Undersized Plywood Router Bit Set

Item #
GRP31857
Rating:
96% of 100
Freud's undersized plywood bits are specifically sized to match the actual thickness of 1/4'', 1/2"'' and 3/4'' plywood (7/32'', 15/32'' and 23/32'') for perfect gap-free dados. The down shear design on the 23/32'' bit virtually eliminates splintering, and all bits feature Freud's TiCo Hi-Density Carbide to withstand the rigors of routing plywood containing high glue content, which rapidly dulls standard bits. The Non-Stick Perma Shield Coating also protects bits from heat and pitch build up. Set comes in Freud's new case with bit mount to keep bits handy and safe. All bits have 1/4'' shanks. Cuts all composition materials, plywoods, hardwoods and softwoods. Use on hand-held and table mounted portable routers.

  • These Freud bits are designed specifically for superior performance in plywood joinery for perfectly fitted grooves and dados.
  • Freud's undersized plywood bits deliver perfect gap-free joints compared to standard bits that make sloppy joints. Create tight joints for shelving, bookcases, cabinets and more.
  • Down shear design on the 23/32'' bit virtually eliminates splintering.
  • The bits feature Freud's TiCo Hi-Density Carbide to withstand the rigors of routing plywood containing high glue content.
  • Non-Stick Perma Shield Coating protects bits from heat and pitch build up.
  • These bits match the actual thickness of 1/4'', 1/2'' and 3/4'' plywood (7/32'', 15/32'' and 23/32'').
  • Set comes in Freud's new case with bit mount to keep bits handy and safe.
  • All bits have 1/4'' shanks.
  • Cuts all composition materials, plywoods, hardwoods and softwoods.

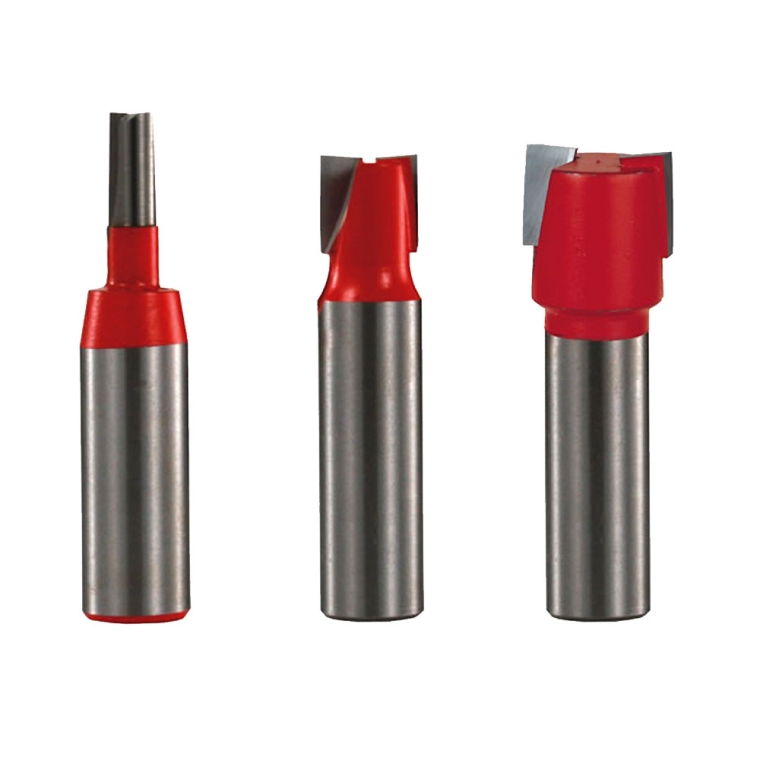

Freud #89-670 3-Pc. Undersized Plywood Set Bit - #45083 Includes:

  • (1) 16-094 Mortising Bit
  • (1) 16-109 Mortising Bit
  • (1) 16-116 Mortising Bit

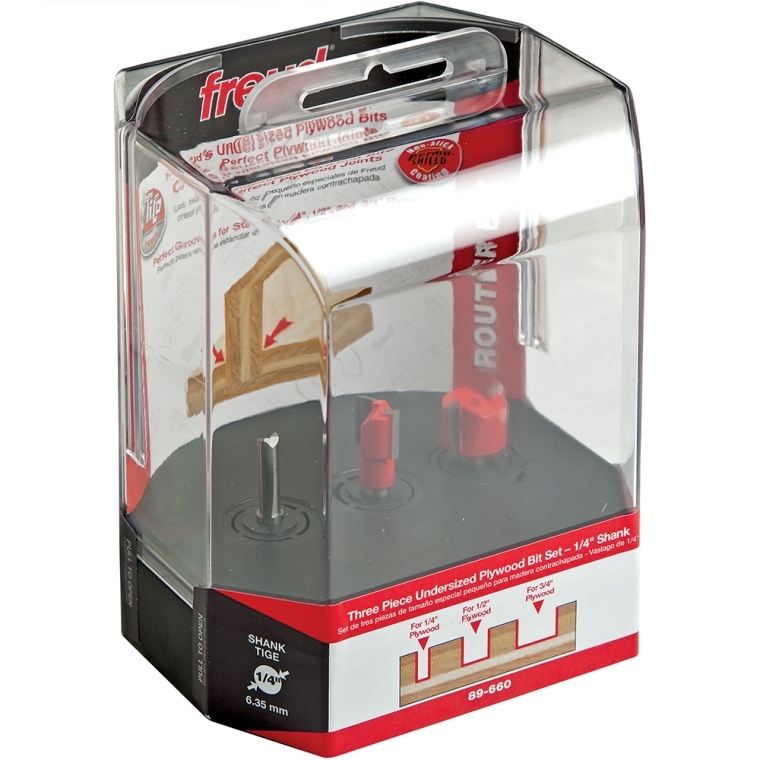

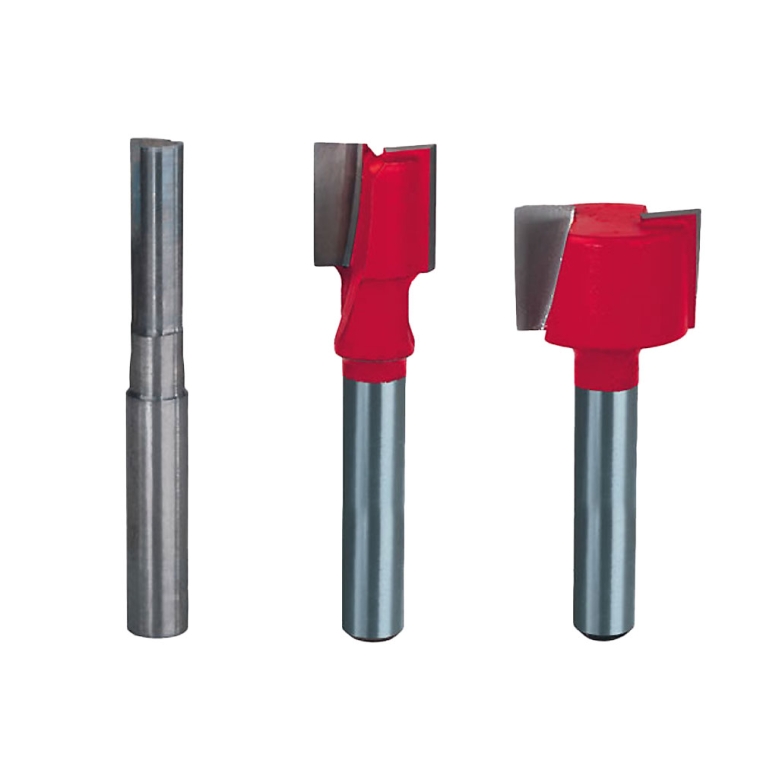

Freud #89-660 3-Pc. Undersized Plywood Set Bit - #48923 Includes:

  • (1) 04-111 Double Flute Straight Bit
  • (1) 16-098 Mortising Bit
  • (1) 16-103 Mortising Bit
More Information
Brand Freud
Weight 0.7800
Tech Spec

Freud #89-670 3-Pc. Undersized Plywood Set Bit - #45083

16-094 Mortising Bit

  • Overall Diameter: 7/32''
  • Carbide Height: 1/2''
  • Overall Length: 2-1/4''



16-109 Mortising Bit

  • Overall Diameter: 15/32''
  • Carbide Height: 1/2''
  • Overall Length: 2-1/4''



16-116 Mortising Bit

  • Overall Diameter: 23/32''
  • Carbide Height: 1/2''
  • Overall Length: 2-1/8''



Freud #89-660 3-Pc. Undersized Plywood Set Bit - #48923

04-111 Double Flute Straight Bit

  • Overall Diameter: 7/32''
  • Carbide Height: 3/4''
  • Overall Length: 2''



16-098 Mortising Bit

  • Overall Diameter: 15/32''
  • Carbide Height: 1/2''
  • Overall Length: 2''



16-103 Mortising Bit

  • Overall Diameter: 23/32''
  • Carbide Height: 1/4''
  • Overall Length: 1-3/4''
Bit Type Straight
4.8 / 5.0
6 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
5
1
0
0
0
Very nice
Just what was needed for actual size of plywood, a great router bit case also.
November 22, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
They are great. Just as advertised. Couldn't be happier with the items I've received or with your delivery. You can expect more orders from me in the future.
October 8, 2016
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Beats fooling with shims and a dado blade. Nice clean cut.
March 31, 2016
Purchased
over 4 years ago
Woodworking Experience:
Advanced
Very nice set
I am in the process of constructing six built-in closet shelving units for a new home and I have to say that these router bits are of high quality and is exactly how I like my dadoes to fit when assembling panels.
November 16, 2014
Freud 3-Pc Undersized Plywood Router Bit Set
Awesome set of router bits. I am using these router bits to construct two toy boxes for my grandchildren. Exactly what I needed to construct the boxes
October 13, 2014
Undersized should have tipped me off
I have used many Freud tablesaw and router bits before and have always had good experiences with them. Working on a current project that involved 5 different plywood bookcase carcasses with fixed shelves I bought this figuring that with one pass I could make my dadoes for the fixed shelves and be done with it, not so. Using the 23/32 bit I checked the fit after my first shallow pass and found I couldn't get the plywood scrap into the dado. After applying 6 pieces of masking tape to my router base edge and running another pass everything fit perfectly. If I knew I would have to shim for another pass I maybe would have opted for a singular bit rather than a set promising perfect fit. I will say the down shear design on the bit held true to its claim and left almost no fur or tear out along the edges. The non-stick coating also left little to no dust or pitch on the bit, so that was really nice.
September 3, 2015
Purchased
over 4 years ago
Woodworking Experience:
Advanced
