$99.97 Each
Temporarily Oversold
Designed for intricate detail carving, relief carving and rough carving in wood, wood composites, plastics and aluminum.

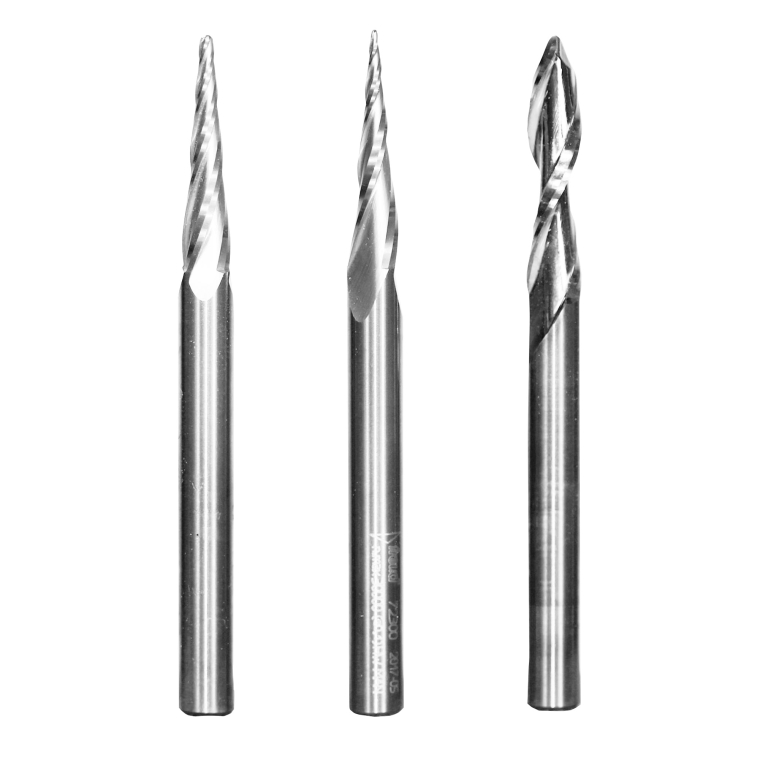

Freud 87-308 3-Piece Fine Detail CNC Router Bit Set

Item #
55315
Rating:
80% of 100

The Freud 87-308 3-Piece Fine Detail set is designed for intricate two- and three-dimensional carving, relief carving, rough carving and finish work on finely detailed projects in wood, wood composites, hard and soft plastics and aluminum. Each bit is made from Freud's solid super density Carbide, which provides up to 2x the cutting life. The cutter geometries are designed for superior chip evacuation, yielding smoother cuts with less burning.


Features:

  • 1/32'' Tapered Ball Tip Solid Carbide Bit features 3 flutes and an extremely fine 1/32'' diameter tip for ultra-detailed cuts
  • 1/16'' Tapered Ball Tip Solid Carbide Bit features 4 flutes and 1/16'' diameter tip—great for general-purpose carving
  • 1/4'' diameter Up Cut Spiral Ball Nose Solid Carbide Bit has 2 flutes—ideal for deep grooving and edge work
(1) Tapered Ball-Tip Solid Carbide CNC Router Bit (72-300)
(1) Tapered Ball-Tip Solid Carbide CNC Router Bit (72-400)
(1) Ball-Nose Up-Cut Spiral Solid Carbide CNC Router Bit (72-202)
More Information
Brand Freud
Manufacturer Part Number 87-308
Weight 0.6400

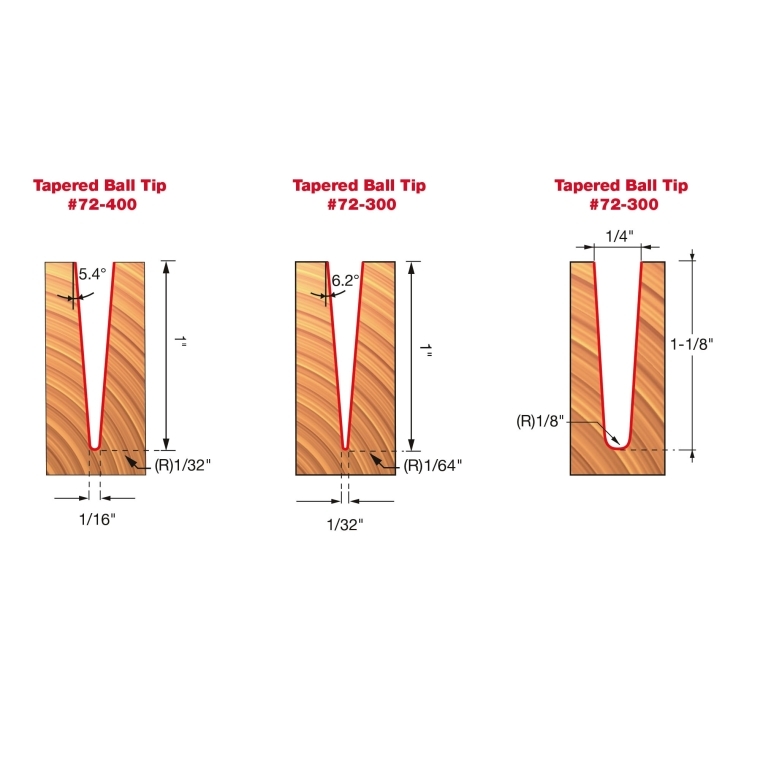

Tech Spec Tapered Ball-Tip Solid Carbide CNC Router Bit (72-300):
  • Cutting Diameter: 1/32'' (at tip)
  • Cutting Height: 1''
  • Angle: 6.2°
  • Shank Diameter: 1/4''
  • Material: Solid Carbide

Tapered Ball-Tip Solid Carbide CNC Router Bit (72-400):
  • Cutting Diameter: 1/16'' (at tip)
  • Cutting Height: 1''
  • Angle: 5.4°
  • Shank Diameter: 1/4''
  • Material: Solid Carbide

Ball-Nose Up-Cut Spiral Solid Carbide CNC Router Bit (72-202):
  • Cutting Diameter: 1/4''
  • Cutting Height: 1-1/8''
  • Shank Diameter: 1/4''
  • Flutes: 2
  • Material: Solid Carbide
4.0 / 5.0
3 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
3
0
0
0
Fine detailing CNCRouter but set
Great tool! Does everything Rockler claims it does. Highly recommended.
August 14, 2018
Purchased
1 year ago
Woodworking Experience:
Advanced
These bits work very well
I am very impressed with the tapered bits. The straight bits are not nearly as well built. You have to be careful about which Freud bits you get for a CNC. All the bits need more information about chip loading, feed rates and depth of cut.
July 3, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Really good bit set for making professional looking signs. Have produced several so far and bits still performing like new.
December 24, 2017
Purchased
1 year ago
Woodworking Experience:
Beginner
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 2 answers
Why did you choose this?
Rockler Store
Make Name Plates
Clark K on Feb 10, 2019
Needed smaller bits for detail work on plaques and jewelery
Nomad Larry on Dec 3, 2018
Make Name Plates
Clark K on Feb 10, 2019
Because I bought a CNC machine and this is my first set of bits.
Virgilio Adolfo A on Dec 24, 2018
Needed smaller bits for detail work on plaques and jewelery
Nomad Larry on Dec 3, 2018
My son is getting into wood working
RayAnn H on Nov 16, 2018
To make fine detail with CNC router
Beth S on Apr 4, 2018
Needed for my new CNC
Bruce A on Mar 16, 2018
Quality
RON W on Mar 2, 2018
Because I wanted a complete system when it was delivered and didn't want to place second order to be able to start using my new CNC Shark HD4 extended bed.
Andy M on Feb 28, 2018
I have a CNC Shark and I am learning how to use it, not easy I don't know anyone that has a CNC.
Ronald T on Feb 5, 2018
I have a CNC
Mehran R on Dec 21, 2017
Have a need to do 'fine' pitch engraving work
Lawrence N on Dec 20, 2017
I'm new to cnc woodworking, and I wanted some bits for fine details.
Beau R on Nov 28, 2017
Needed a bit set that could do fine work.
Rustin B on Nov 17, 2017
Because I bought a CNC machine and this is my first set of bits.
Virgilio Adolfo A on Dec 24, 2018
My son is getting into wood working
RayAnn H on Nov 16, 2018
Can these be used in hand held router?
George Michael P on Mar 8, 2018
BEST ANSWER: Yes they can. I uses them with my DeWalt trim router for fine detail hand router work.
