Freud® 99-760 Quarter- Round Premier Adjustable Rail and Stile Router Bit Set - 1-11/16" Dia x 1-1/4" H x 1/2" Shank

Create "rattle-free" flat panel doors and mill tenons of any length with this quarter-round rail and stile bit set.
Item #
35392
Rating:
80% of 100

Produce perfect-fitting beaded stile and rail doors from 5/8" to 1-1/4" thick! Adjustable shims enable a tight fit when using plywood as thin as 7/32" (5.5mm), and also allow use with thick panels. To produce the front of a longer tenon profile for blind tenons, through tenons or bridle joints, remove the top portion of the cutter (including bearing and spindle). High-density carbide composition and Perma-Shield coating lengthen bit life and protect against heat and pitch buildup. 1/2" shanks.

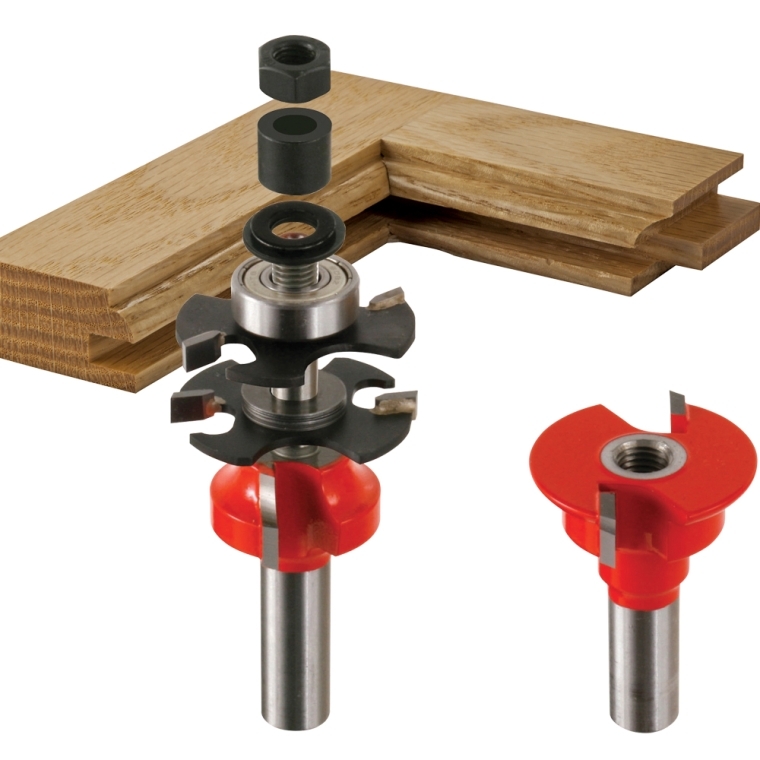

  • Create extended tenons for extra door joint strength (patented solution) - Top portion of cutter, including bearing and spindle, is removed to produce the front of the long tenon profile.
  • Choose from a variety of material thicknesses (5/8" to 1-1/4").
  • Adjustable shims adjust panel groove down to 7/32" (5.5mm) and up to 3/8" (9.5mm) thick, ideal for plywood panels.
  • Unique cutter geometry to eliminate tear-out.
  • TiCo™ Hi-Density Carbide to maximize bit life and material finish.
  • Perma-SHIELD® coating reduces heat & pitch build-up from rust.

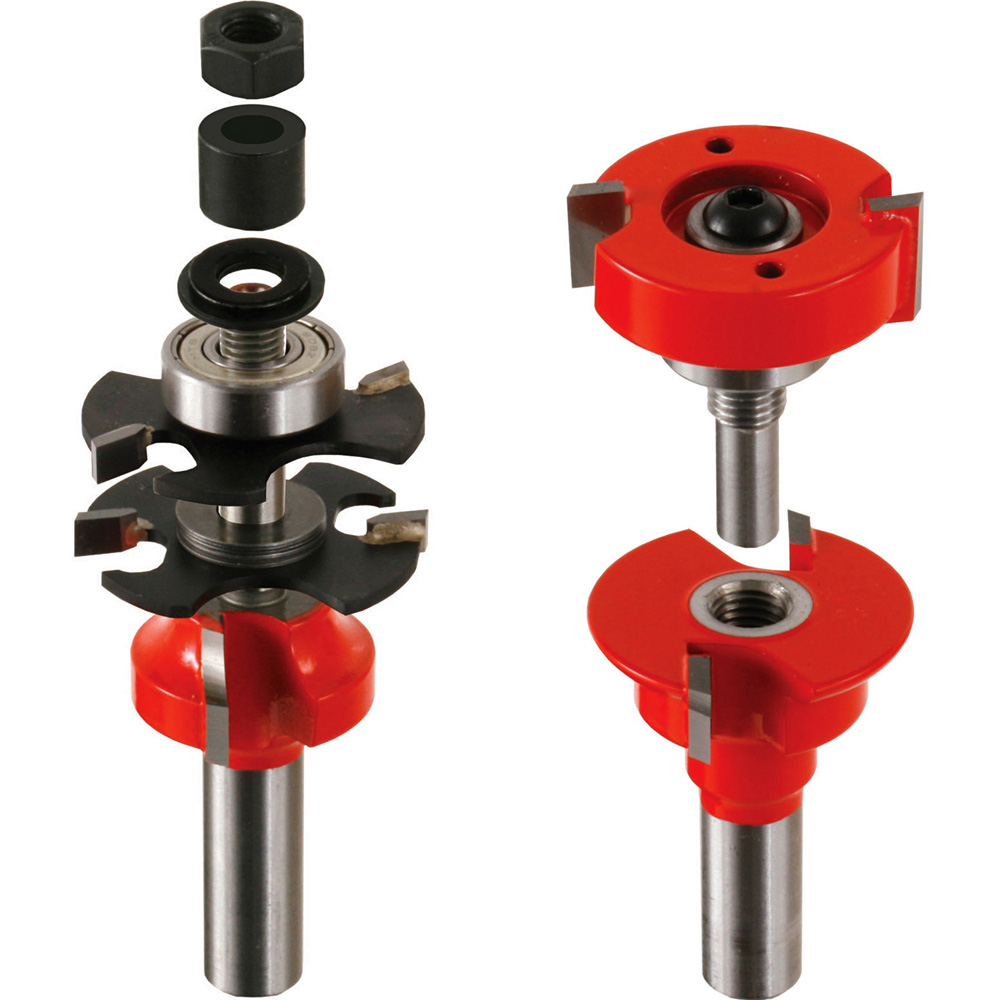

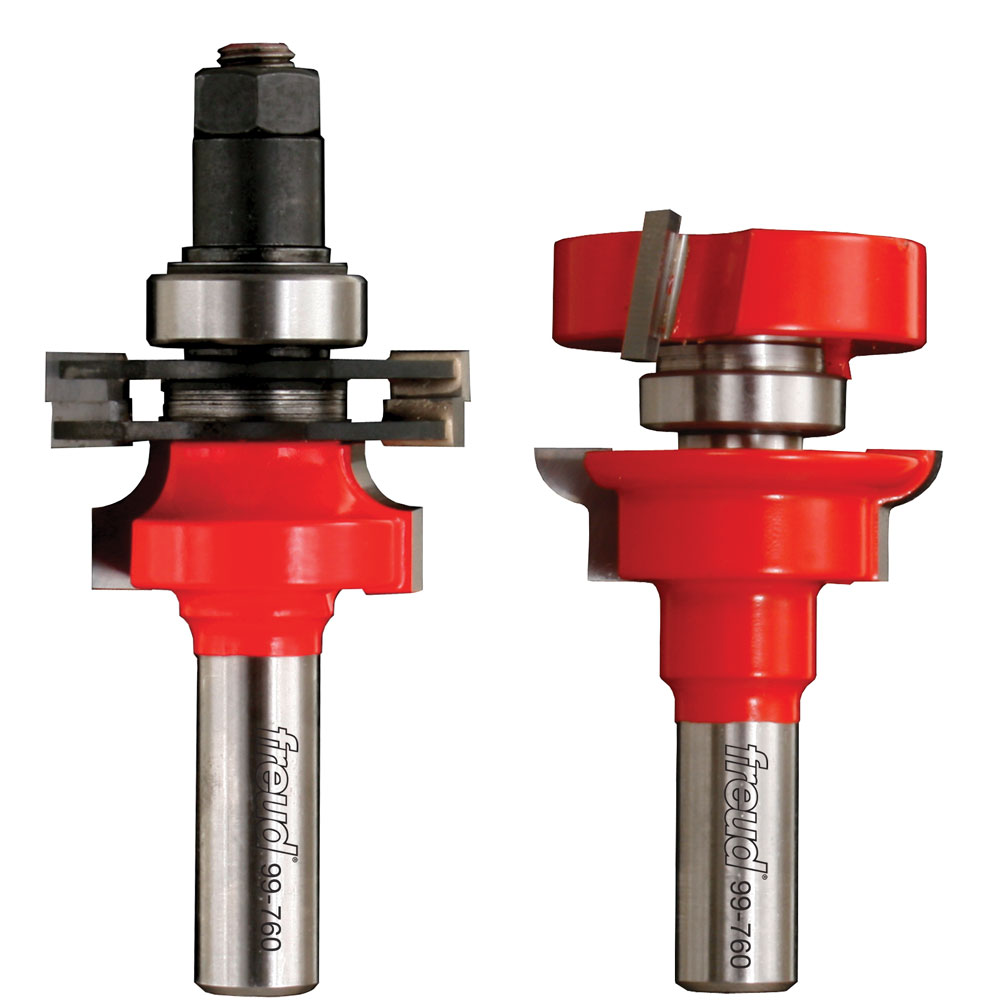

(1) Freud 99-760 Premier Adjustable Rail and Stile Bit Set
More Information
Brand Freud
Manufacturer Part Number 99-760
Weight 1.4000
Bit Type Stile & Rail
Diameter 1-11/16"
Cutter Height 1-1/4"
Shank Size 1/2"
Flutes 2
4.0 / 5.0
6 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
4
0
1
0
1
Great item
June 30, 2016
Purchased
over 3 years ago
so far so good on new cabinetry
Just started a trial cabinet project to prep for new cabinets in our kitchen. Created 3 flat panel frames to far and they turned out good. Some work to adjust the bit heights exactly where I wanted them but it worked out well. No problem with the bits cutting ability.
June 24, 2016
Purchased
over 3 years ago
So far I have just used...
So far I have just used this to make a pair of raised panel cabinet doors but they performed flawlessly. Will be using this on some sinker cypress for a gun cabinet and making some glass doors with the extra cutter . Very positive experience with these bits. Thanks Freud and Rockler!
May 26, 2013
The previous review is somewhat accurate,...
The previous review is somewhat accurate, but the manufacturers of wood products are literally "shaving" products to save money. If you use space balls there are no rattles. I highly recommend this set for your rail and stile projects. If making glass doors as well get the glass door kit. it makes life much easier.
December 15, 2010
I'm not sure what the previous...
I'm not sure what the previous poster meant by "somewhat correct", Ben IS correct. I too was a little disappointed by the fact I could not get a PERFECT fit using this set and the 5.2mm plywood panels that seem to be the norm these days. The solution would have been painfully simple for Freud as well..thinner bearing and allow me to shim up, which is the intended purpose and main selling point, too bad. A Why would you use spaceballs with thin ply or MDF core panels? BEven if you prevent "rattling" you still would have unsightly gaps.This set is the best i've seen otherwise, meaning for thicker than 5.6 mm stock
April 18, 2011
I rate this poor simply because...
I rate this poor simply because I bought it on the premise that I could get rattle free doors using plywood panels. Well guess what, most plywood these days is 5.2mm and this set only goes down to 5.6mm. Result, panel still rattles. If you use thicker stock, product performs well. Just be aware.
September 30, 2010
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
Why did you choose this?
Rockler Store
I am building a cabinet to match an existing one, & this bit set matches the profile of the doors on the existing cabinet
Lawrence J on Jun 23, 2018
I needed it
Tom F on Feb 24, 2017
I am building a cabinet to match an existing one, & this bit set matches the profile of the doors on the existing cabinet
Lawrence J on Jun 23, 2018
To make the doors for a cabinet I'm building and more in the future.
Larry L on Aug 4, 2017
I needed it
Tom F on Feb 24, 2017
Expensive but needed ability to reduce slot width to account for plywood thickness less than 1/4".
Stephen K on Jan 22, 2017
because needed
William F on Apr 21, 2016
Perfect to adjust for plywood panels thinner than 0.25" Freud quality speaks for itself.
Jeff B on Mar 29, 2016
To make the doors for a cabinet I'm building and more in the future.
Larry L on Aug 4, 2017
Expensive but needed ability to reduce slot width to account for plywood thickness less than 1/4".
Stephen K on Jan 22, 2017
What is the radius on the quarter round section?
Bob K on May 9, 2016
