InvisiDoor Pivot Bookcase Hinge Kit

Item #
88% of 100

InvisiDoor Pivot Bookcase Hinge Kit allows you to create an attractive hidden door bookcase that can be used to conceal a safe room, wine cellar, or man cave.

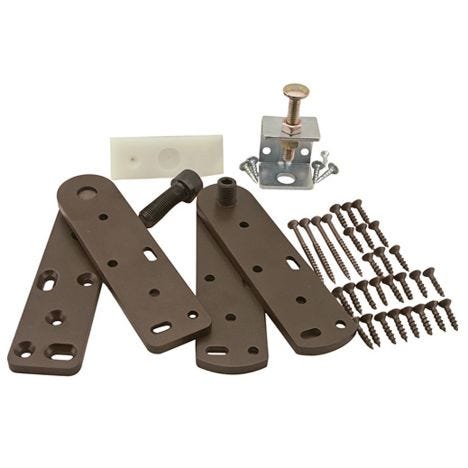

(1) Hinge Kit
(1) Support Foot/Stop
More Information
Manufacturer Part Number ID.HINGEKIT
Weight 2.9200
Tech Spec
  • Dimensions of each hinge plate: 5-7/8" x 1-1/2" x 1/4"
  • InvisiDoor Pivot Bookcase Hinge Kit Weight Rating: Up to 500 pounds
4.4 / 5.0
22 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
InvisiDoor hinges Make Invisibility an Easy Reality
As in the photo captions, the bookcase door exceeds the std 36” door. However, leaving 1/2” clearance all around, I didn’t have to modify the manufacturer’s directions at all. The 2 side doors work in the 7 1/2” cabinet space. The stacked drawers are dummies; however we concealed the opening from the back to be even more secretive. Great product for DIY’ers. Thanks.
This bookcase door is in the a client’s garage. It’s 47”wide x 110” high.
Closed, it hides a large storage area where he keeps his motorcycles. No problems installing. Works!
April 3, 2020
3 months ago
My dream bookcase!
The hinge works perfectly. We had two of these built from leftover white oak flooring with black walnut accents. Fortunately, our carpenter is a genius and figured out how to fit the cases inside the existing molding on the closets.
Bookcase moves easily and holds the weight well.
Built with leftover white oak flooring and black walnut accents.  Hinge is great!!
February 10, 2020
5 months ago
Woodworking Experience:
InvisiDoor Pivot
Designed and built a shelf/door for customer for an existing opening in a renovation. Worked great easy to install. I would strongly suggest building a complete jamb assembly including the threshold and do not try to install this on an existing threshold. The pivot must be plumb to work properly.
February 5, 2019
1 year ago
Woodworking Experience:
Awesome Product
Terrific high quality product, excellent instruction. Door works perfectly.
January 17, 2019
1 year ago
Woodworking Experience:
Under stairs organizer using these hinges for the wine rack
I used these for the first time ever for a under stairs storage area. The wine rack was the hide a door. A lot of adjusting though. I'm sure it will get better with more experience with the product. The home owner loves it!
User submitted image
Added Sep 2, 2018
September 2, 2018
Woodworking Experience:
They worked great and I did a great job building the Bookcase
August 14, 2017
over 2 years ago
Woodworking Experience:
Hinges work great. It was my first time using them. They have easy instructions to follow and it turned out great.
User submitted image
User submitted image
May 30, 2017
over 3 years ago
Woodworking Experience:
Good quality and ease of installation
February 21, 2017
over 3 years ago
Woodworking Experience:
Worked great
June 22, 2016
over 4 years ago
Great Product
The instructions have enough information that the installation can be relatively easily modified for custom door size applications. We created hinged bookshelves to conceal two sump pump locations.
November 10, 2015
over 4 years ago
Woodworking Experience:
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 25 questions Browse 25 questions and 78 answers
Why did you choose this?
Rockler Store
Have been wanting this for years in our living room where a closet was, but it is so pricey, finally with a 15% off I did it of course we needed 2 can’t wait to see results.
CHERYL on May 27, 2020
Rockler quality, hallway cubby storage area needed clever disguise
Elizabeth C on May 15, 2020
Have been wanting this for years in our living room where a closet was, but it is so pricey, finally with a 15% off I did it of course we needed 2 can’t wait to see results.
CHERYL on May 27, 2020
needed a clever door for a closet of a bathroom/powder room
Michael O on May 24, 2020
Rockler quality, hallway cubby storage area needed clever disguise
Elizabeth C on May 15, 2020
Saw these in the magazine. Have a project that is needing a hidden door. Easier than trying to come up with own option/design.
Chris W on Apr 17, 2020
Recommended by a friend.
Casey Duncan H on May 7, 2019
Saw an online video of the product and how easy to install.
Ravinder M on Apr 7, 2019
Whenever I'm looking for good quality hardware Rockler is my first choice. I hope these work just as good as the hardware we purchased for the Murphy bed
Denise Smith E on Feb 16, 2019
I wanted to conceal a stairway. This seems like the best solution.
June L on Jan 29, 2019
nice hardware
marc h on Jan 8, 2019
building concealed bookcases
Glen W on Jan 6, 2019
For its specific design to be used with bookcases and creating a hidden room
Luis M on Dec 27, 2018
Researched other products. I trust rockler to carry quality products. These look like they'll work for what I need to do.
Keith c on Dec 10, 2018
It was expensive, must be good then right?
Lucas G on Mar 1, 2018
I have a bookcase that I need to replace the hidden hinges on. Current hinge is not a heavy duty hinge.
Mark H on Feb 18, 2018
Lucille M B on Feb 2, 2018
Looks to have same benefits of other pivot hinges but with easier installation
William G on Jan 28, 2018
Glenda B on Aug 18, 2017
Building a hidden door bookcase
William B on Jul 27, 2017
Used before , worked good
Terry R on Jul 13, 2017
for access to attic space that would be unusable other wise.
Dana on Mar 3, 2017
To make a door and this appears to be the most useful.
Larry P on Jan 15, 2017
Hinges for hidden bookshelf french doors - very smooth and easy to install!
Kevin G on Jul 2, 2016
Easier than fabricating a set of pivots
Donnie McLean on Apr 25, 2016
Looks like the best hinge for the job. I am building a 48" bookcase to use them on
Tim S on Apr 21, 2016
Anthony E on Apr 2, 2016
best hardware for the project
Robert W on Feb 9, 2016
Jonathan C on Jan 26, 2016
suggested by an architect
Jeffrey G on Jan 1, 2016
Recommended hinge for the project
Jared H on Dec 16, 2015
It was the only place I could find it. Plus I have had good luck ordering from Rockler before
Steven B on Nov 22, 2015
Needed for a kitchen remodel.
John B on Aug 25, 2015
saw it in handyman mag just what i was looking for<br />thank you
Jeffrey P on Aug 25, 2015
I'm installing a book case/door as an access location for a basement sump
Joshua G on Aug 24, 2015
Hope these work
James R on Aug 22, 2015
Customer wanted a hidden room
Aaron L on Aug 13, 2015
I want to do my project properly
Gunnar H on May 3, 2015
Best Price, Like Hidden door concept
Graham C W on Apr 16, 2015
needed a clever door for a closet of a bathroom/powder room
Michael O on May 24, 2020
Saw these in the magazine. Have a project that is needing a hidden door. Easier than trying to come up with own option/design.
Chris W on Apr 17, 2020
I need an out swing that is NOT a flush shelving. It will also be part of a larger wall bookcase unit. Which hinge should I use?
Sue S on Feb 24, 2016
BEST ANSWER: Your bookcase unit will be the opening, so this hinge would be just fine.
How much clearance do you need so the door will actually open?
Brandon C on Jan 25, 2018
I downloaded the Instructions and Assembly. My question is for an left hand in-swing door. The diagram shows the location of the bottom threshold hinge pivot point off the bookcase, can I relocate this pivot point under the bookcase, assuming everything swings openly, or am I missing something? I am using a solid core door for the back of the bookcase and I want the hinge pivot point under that door.
Scottie on Aug 1, 2015
BEST ANSWER: It may be too late but, providing your door and shelves if any do not bind on the hinge side when you open it you should be fine putting the hinge under the door.
Is there a mechanism that allows the book case to close and latch like a door knob on a normal door?
Josh F on May 18, 2015
BEST ANSWER: There is a catch that mounts on the bottom of the door but it's not a handle. You could adapt a handle but that would defeat the process of the door being an invisible door.
building a hidden bookcase 42 inches in width and 84 inches in height and 12 inches in depth will these hinges accommodate this size cabinet?
Cliff H on May 26, 2015
BEST ANSWER: Hi, I just built one about that size with a mirror on the back and yes they can handle it!! They are super duty and smooth. as long as your door is built well and doesn't "rack". Follow directions closely though!
What is the load rating for the hindge?
A shopper on Apr 10, 2015
BEST ANSWER: I have not build my door yet but, Rockler says it will hold 300 pounds in addition to the weight of the door. From the looks of the hardware it should do just that.
i built a bookcase 32" width 72" height ,12" depth . Inswing. my framing is 2x6. will this hinge work for me?
Tony C on Mar 30, 2019
BEST ANSWER: I've built a couple of bookcase/large doors with these.Really those dimensions are not the concern. What will be is that you have full swing clearance. Read the instructions carefully regarding the mounting position. I have created a simple jig so that I get it right. note you will want to have access above the door down to put in the pivot screw to set it in. The hinge has worked great for me. Just really read the mounting and placement instructions 2-3 times. Good luck.
If you use the 36"x80 drawings, what will be the actual opening when the bookcase is open. Will you get 36" of opening or will some be instructed by the bookcase?
Leslie H on Mar 25, 2019
BEST ANSWER: Some of the opening will be obstructed by the bookcase. It has been a while since I have done one of those,and I did those for a customer and can’t measure it. When I first started using this hinge I used a cardboard template and followed hinge placement instructions, this method would let you know. Sorry I couldn’t be of more assistance!
I have a closet that has a traditional inswing door and facing on it. I like to keep the existing framing. However, can I remove the door, build a bookcase to replace it with and still use thefacing and fram?
Slider on Jul 24, 2017
BEST ANSWER: Yes, but it will be a little complicated. You'll likely need to remove the door "stops" from the middle of the door jamb, and also add additional trim to the edges of the book case once it is in place as there will be a wide gap (the deeper the bookshelf the wider the gap) between the edge of the bookshelf and the existing door jamb. Hope this helps...
Do this hinge kit have to used with the invisidoor bookshelf or can I use a custom made bookshelf?
Richard L on Feb 12, 2017
BEST ANSWER: This hardware can be used on a bookcase of your own design. That is what I did.
is there a drawing on how to install the pivot hinge?
A shopper on Sep 2, 2015
BEST ANSWER: I purchased an InvisiDoor Pivot Door hardware kit, but I have not installed the hardware yet (finish framing must be installed first). The hardware does include installation instructions. I wouldn't describe the instructions as a drawing. The instructions are photos with inserted text. The entire instruction set comprises most of 3-1/2 pages of text and photos.
Can i swing the Bookcase in?
Chad P on Aug 9, 2019
BEST ANSWER: You can swing it in or out. I had to swing mine out which is more difficult. Swinging in is much easier when it comes to the framing.
I have a 13 inch bookcase I want to make into a door. It is 4 foot wide by 3 feet high. Is the pivot hinge strong another to hold the door?
Chris M on Apr 12, 2018
BEST ANSWER: It for sure is strong enough!
Am I correct in saying that this would work for French doors?
Mario S on Mar 14, 2018
BEST ANSWER: Yes. You would be wise to custom design the application and all of its operating components prior to getting started though. The hinge kits only come with instructions for single door installation.
The door I want to replace swings inward. Can you use this for an inward swinging door or do I have to change it? I'm pretty sure code says bedroom doors have to open inward.
Godfollower on Aug 9, 2016
BEST ANSWER: The InvisiDoor hdwr can be configured to swing inward or outward. The installation instructions are easy to read and follow. The instructions call for making a mock-up of the intended installation and I would second that recommendation (cabinet swing clearance issues are identified and or verified).
What size do I make the rough opening?
Mitch M on Jan 3, 2019
BEST ANSWER: Instructions given are for a standard 36" door, but you can modify and make it literally any width, depth and height you want it to be by changing the hinge mounting location
can this be installed in a room with a slate floor?
Thomas C on Oct 12, 2018
BEST ANSWER: It is designed for installation in a wood floor. However, if you have a way to safely drill through the slate you could possibly use the provided screws - if there is a wood subfloor and the screws are long enough. Alternatively, you could carefully grind out a section of tile and patch in a wooden piece that the hardware can mount to. The bottom piece is well concealed under the bookcase so you would likely never see it. Last option would be to epoxy the hardware to the slate which I would only recommend if you are making a smallish bookcase
I don’t see anything on top and bottom clearance?
King John on May 9, 2018
BEST ANSWER: We installed this bookcase door with 1/4" clearance at top and 3/8" at bottom; it was on a hardwood floor; with carpet you might need to make adjustments.
is invisidoor hinge suitable for trap door application ?
Nelson D on Apr 22, 2017
BEST ANSWER: Not really... The hinge relies on gravity to keep the pin in, if your tolerance is tight you could possibly get away using it. I have used this hinge to build secret bookcase doors and have found the quality is great.
how far will the door swing in or out? 90 degrees 180 degrees
Bob B on Dec 18, 2015
BEST ANSWER: The rotation of the bookcase door on its pivot hinge is not limited by the hardware itself. The thickness of the bookcase door and the clearance provided between the bookcase door and the adjacent door frame/wall will dictate how far the bookcase door will swing open.

I also have purchased the bi-fold version of the invisi-door. It of course is limited by its bi-fold door configuration, but the same constraints apply to the bi-fold component nearest the door frame.
How much weight will the hinge handle ?
A shopper on May 14, 2015
BEST ANSWER: 250 lbs.
I am making a mirror I switched g door. What type of pivot hinge would I need?
Kevin P on Mar 6, 2017
Want to install inswing bookcase door into four and one-half inch thick wall and still have it protrude seven and one-half inches into adjoining room. Will this work? Bookcase would only 30 inches wide.
Roland A on Aug 20, 2016
I'd like to use these to create a double door for a large opening closet. The closet opening is 70 inches so ideally, I'd like to create two 34.5 inch wide cabinets with one that has a center trim piece to conceal the space between them. Has anyone had experience doing this or does this seem like a reasonable application based on other peoples attempts?
Joseph R on Feb 8, 2016
