24281 Kerf Mount Bracket Zoom

Kerf Mount Corner Brackets for Table Aprons-Kerf Mount

product name price quantity total
1-1/2" x 3" Kerf Mount Corner Bracket, Set of 4 Item #: 24281
In Stock

$3.49

Pack 		$3.49
Find in Store
2" x 4-1/2" Kerf Mount Corner Bracket, Set of 4 Item #: 24299
In Stock

$4.49

Pack 		$4.49
Find in Store
3" X 4-3/4" Kerf Mount Corner Bracket, Set of 4 Item #: 34303
In Stock

$5.99

Pack 		$5.99
Find in Store
1-1/2" x 3" Kerf Mount Corner Bracket, Set of 4 Item #: 24281
In Stock

Price:
$3.49
Pack
Quantity:
Total: $3.49

Find in Store
2" x 4-1/2" Kerf Mount Corner Bracket, Set of 4 Item #: 24299
In Stock

Price:
$4.49
Pack
Quantity:
Total: $4.49

Find in Store
3" X 4-3/4" Kerf Mount Corner Bracket, Set of 4 Item #: 34303
In Stock

Price:
$5.99
Pack
Quantity:
Total: $5.99

Find in Store

Overview

This set of 4 Corner braces will make your table stronger.

What's included

(4) Kerf Mount Corner Brackets for Table Aprons-Kerf Mount

Technical Details

Kerf mounted brackets:

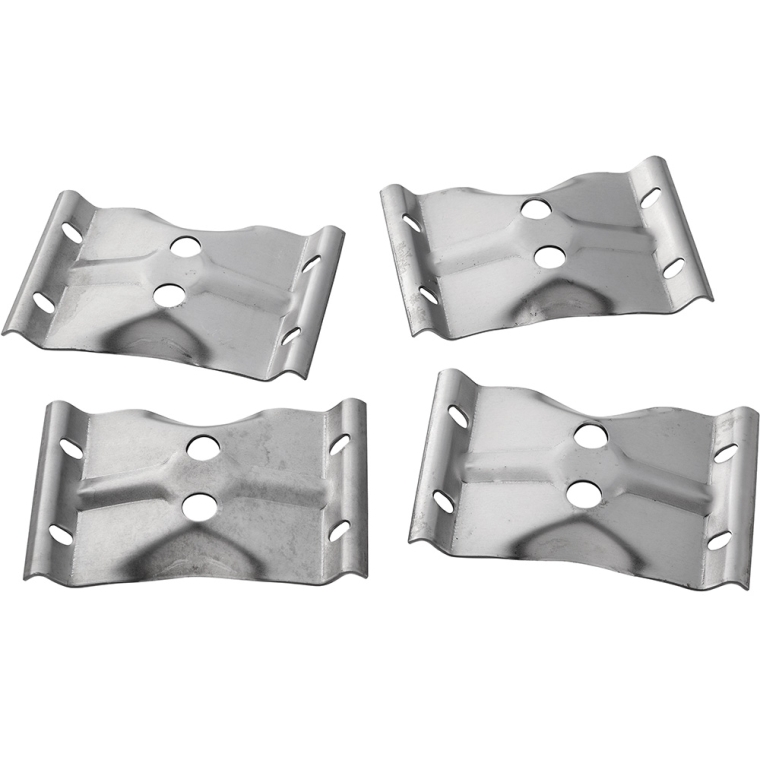

  • #24281 is kerf mounted and made of 18 gauge steel and is 1 1/2" X 3".
  • #24299 is kerf mounted and made of 18 gauge steel and is 2" X 4 1/2".
  • #34303 is kerf mounted and made of 14 gauge steel and is 3" x 4 3/4" and includes two holes for hanger bolts.
  • Hardware Type: Corner Brackets

Technical Downloads

Frequently Bought Together

Questions and Answers

Powered by TurnTo
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 10 questions Browse 10 questions and 62 answers
Why did you choose this?
Rockler Store
Stronger than surface mounted
Rob L on Jul 19, 2017
Needed to repair a leg on an outside table. Old leg hardware had rusted.
Frances D on Jun 23, 2017
Stronger than surface mounted
Rob L on Jul 19, 2017
I am building a child's play table.
Linda L on Jul 18, 2017
Needed to repair a leg on an outside table. Old leg hardware had rusted.
Frances D on Jun 23, 2017
Has worked well on previously built tables
scott k on Apr 30, 2017
Used them before and they worked well.
Ronald W on Apr 25, 2017
quality of product
Jim L on Mar 23, 2017
Couldn't find them in the local hardware store
Dave R on Mar 21, 2017
TO MOUNT THE LEGS --DUH
timothy l on Mar 14, 2017
Temporary sold out so evidently a very desired bracket, plus I need two holes for more stability on table legs.
Dennis S on Mar 7, 2017
also for table
paul r on Feb 4, 2017
Eliminates wood joinery hassles
Michael J M on Jan 31, 2017
I returned them
STEVE L on Jan 13, 2017
I had to order these because no lumber yard or hardware store stocks these. I have ordered from Rockler before and I was pleased with the product I ordered and it arrived in a timely matter.
David C on Jan 8, 2017
Rockler carries products others do not.
Robert F on Dec 30, 2016
to fix a chair
Jim M on Dec 5, 2016
Coffee table
Larry B on Nov 1, 2016
Seems to be right size
Bruce J on Oct 30, 2016
feeling lazy this time around and don't want to mortise and tenon the apron into the legs, and for 5 bucks I'll give these a try and see how they do
Ralph C on Oct 5, 2016
great product good strength.
STEPHEN M on Sep 22, 2016
Availability
James M on Sep 1, 2016
Table
Bob R on Aug 31, 2016
I have used these leg supports many times before, Rockler has the best deal (with shipping as well) and I can depend on Rockler for their Customer service
Daniel S on Aug 29, 2016
To make a rustic patio bar out of salvaged wood.
CURT A on Aug 26, 2016
fits perfectly as did the original
Cabinetman on Aug 24, 2016
I thought these brackets were strong enough for a large dining table. They were light metal and flimsy. I would not use these brackets for a standard size dining room table. I used custom wood brackets and was more satisfied with the construction.
Andrew M. S on Aug 24, 2016
repairing/replacing bent brackets on kids table and piano bench
Christopher R on Aug 13, 2016
Because it would fit my piano bench
Alexander S on Apr 16, 2016
It is the size and style of the existing braces on the table I am repairing and refinishing.
B I on Apr 11, 2016
ease of assembly
Philip y on Apr 9, 2016
I am hoping these are a heavy enough gauge for 3" square legs and 1 1/2" thick aprons.
Eileen C. P on Mar 27, 2016
More convenient to buy online
Paul B on Mar 17, 2016
It's the right size I need for the new table I built for my wife with 2 1/2 inch skirt.
Robert C on Mar 5, 2016
Self explanatory.
Harry on Mar 3, 2016
It was the biggest ones I found have a heavy table top
Dusty R on Mar 2, 2016
Make a simple leg mount for a small bedside table.
Donald S on Feb 21, 2016
Strong, flexible, and fast
Rich D on Jan 25, 2016
Rebuilding tables and current braces are made out of wood
Randall S on Jan 22, 2016
replacing old brackets that have been bent beyond reusing for four different tables.
Joseph K on Jan 18, 2016
I am building a table that needs to be broken down at times
Norb W on Jan 14, 2016
I Have used this type of brackets for years. How when I try to buy some more they are too small an the wrong ones. I came across your catalog, found that you have this type,so I ordered one set to see if they are the right size.Hopefully they are. I use these Brackets to make table Aprons for Modal Rail road which is my hobby I've been doing this ever since I retired from the Army in 1989.
Richard W on Jan 9, 2016
looked to be heavy duty from others I had looked at
dennis h on Dec 25, 2015
building a table
Kirk B on Dec 21, 2015
Needed them for a dinning table project.
Johnna S on Dec 5, 2015
A hard-to-find item. It looks like just what I need to finish up my table project!!
George L on Dec 1, 2015
Did not have good results with this product.
Lynn J on Nov 30, 2015
Have used before with good results
Jim S on Nov 8, 2015
Needed to replace stock
Scott M on Nov 5, 2015
I built a small writing desk for a new surgeon joining the dental practice where I contract maintenance/light construction. It worked great and she was thrilled with her custom desk.
Jerry S on Oct 31, 2015
I'm making several end tables, and Rockler has a good variety of sizes, and i trust the quality.
Philip J B on Sep 17, 2015
Hoping it will work as a replacement for a damaged bracket
Carise S on Sep 2, 2015
I am building a child's play table.
Linda L on Jul 18, 2017
Has worked well on previously built tables
scott k on Apr 30, 2017
I bought the 4.5 inch corner table brackets. How do you determine the distance from end of apron stringers to kerf. Dimension from table leg would be nice?
A shopper on Apr 27, 2015
BEST ANSWER: I just lined up the apron pieces with the leg on a flat surface and held the bracket in place then marked where the slot needed to be cut. For the table I made, I was using just 2" x 2" legs so there was some clearance for the bracket. The slot was about 1 3/8" from the end of the apron.

Hope that this helps.
How far apart are the holes (for the legs) on the 3 x 4 3/4 brackets?
katja s on May 8, 2015
BEST ANSWER: On 34303 the leg holes are 1" center to center.
Is there a specific size for the legs?
A shopper on Apr 18, 2015
BEST ANSWER: see this document http://go.rockler.com/tech/24281-299.pdf
any size larger than 1/4 inch smaller than recommended would work
Can these be used to stabilize chair legs?
PML123 on Jan 2, 2016
BEST ANSWER: Of course, it depends on how the interior corner of your chair is constructed. I used them on a stool to stabilize the legs and they did a great job. But you do need a chair where the legs are fitted inside some rails that border the seat of the chair in order to make this work. If they are just wooden legs that fit up into holes in the bottom of the seat, and there is no supporting rail around the outside, these will not work.
I bought the 3" x 4 3/4" brackets. Is there a standard leg size for these, and do you have the technical data available like you have for the two smaller sizes?
Chad C on Jun 12, 2015
BEST ANSWER: There is no standard leg size, however this is a large braket. I am using this size bracket on legs 3 1/2 by 3 1/2 or larger.
I bought 3" brackets to replace 2 damaged ones, but the edges that fit into the apron slots are shorter than original ones and I don't think will anchor the leg. Would surface mount ones have the bolt holes in same place where kerf ones would slot?
Susan B on Aug 21, 2015
BEST ANSWER: I would be happy to answer, except I have not yet used the brackets I bought.
how to determin were the apron meets the leg ?
butch on Jan 18, 2017
BEST ANSWER: The instructions say to put the leg upright upside down on a flat surface, position the apron pieces where you want them to attach to the leg. Next place the bracket on top of the apron to see where the kerf lines up. You can then mark both apron pieces for the kerf cuts. As the where they fit on the leg, I usually center the bracket to the side aprons. If you go to the Rocklers Website the technical instructions are listed with the product. http://www.rockler.com/kerf-mount-corner-brackets-for-table-aprons-kerf-mount
I am using 2 3/4 legs, need at least 1 1/8 space from the inside of the leg. What size bracket would I need? The 34303 or the 24299 bracket?
Norb W on Jan 13, 2016
BEST ANSWER: I'm not sure if I understand your question, but you should be able to look at the linked technical documents for each. I think either could work but you should pick the largest one that will fit with the "height" of your apron. You might need to cut a larger chamfer in the top of the leg for clearance.
What size corner brackets do I need for a 4 x 4 table Leg?
Steve T on Apr 11, 2016

Reviews

Powered by TurnTo
4.6 / 5.0
39 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Stars
27
10
1
1
0
Great product
Bought the 3" X 4 3/4" bracket to build a butcher block top kitchen work table, with some heavy duty pine legs. Perfect brackets for the job. Heavy duty and solid.
September 9, 2014
I used this to make a...
I used this to make a homework desk for the kids. Setup is easy, and the resulting table stability is rock steady. I will make another desk shortly, and will use these brackets again. For both desks, the ability to remove the legs was crucial. If this is not a feature you desire, a traditional joint may be more desirable. (Go ahead and get a driver for the hanging anchor bolts when you order the bolts.)
March 23, 2009
I used the 3" brackets for...
I used the 3" brackets for a large table with 3.5" rails and they worked just fine. The quality and strength of the brackets is quite good, and the price was very good. I compared to my local supplier who charged twice the price for the same size, quality and strength.
October 9, 2008
2x4 corner brackets
These Kerf Corner Brackets work very good for me. I make tables and stools using the Kerf Corners. They are very sturdy and will not work loose with lots of use.
The down side is freight when ordering, making the cost increase. Volume discount would be desirable plus free freight.
I WOULD HIGHLY RECOMMEND THESE ANYONE BUILDING GOOD PRODUCTS.
June 7, 2015
Purchased
 over 2 years ago
Woodworking Experience:
Advanced
Corner Brackets filled the bill. Customer...
Corner Brackets filled the bill. Customer requested removable legs. This product produced strong right angled corners with little effort. Much quicker than the sliding dove tail or mortise/tendon I normally use.
September 23, 2008
Stronger than I expected
1-1/2" x 3" model: I was nervous when I stood up the table that it would sway when pushed. It is a large 40" x 57" (with extensions) and solid, so therefore pretty heavy (around 50-75 lbs I'll ballpark). It is actually very stiff - you can push on the side and it rocks almost nil. I weigh 230 lbs and climbed on it as well - did not sway much at all. The skirt that I made is 3-3/4" inch, which is acceptable, but if I did it again, I'd go maybe a flat 3".
February 1, 2016
Purchased
 1 year ago
Woodworking Experience:
Intermediate
Just as described
I had an old child's table and have bee looking for a replacement bracket for along time. I'm glad they are still available. It fit perfectly.
May 20, 2015
Purchased
 over 2 years ago
I have used this piece of...
I have used this piece of hardware on a line of coffee/end tables with great success. The dimensions of the hardware remain consistant from order to order.
December 3, 2007
Kerf Mount Corner Bracket
Excellent product, easy to install, makes a sturdy table-to-leg joint. I will continue to use this method for installing table legs. Instructions are quite simple to understand.
July 15, 2015
Purchased
 over 2 years ago
Woodworking Experience:
Intermediate
Corner braces worked great. I did...
Corner braces worked great. I did have to go get the screws I needed to attach them. I was working with white oak lumber. I suggest using a very high grade screw for this because the wood is so hard.
December 1, 2007
