$159.99 Set
In stock
  • Buy 10 for $143.99 each and save 10%

Lateral Opening Door Hinge Set

Item #
29689
Rating:
40% of 100
Lateral Opening Door Hinge Set Lateral Opening Door Hinge Set Lateral Opening Door Hinge Set Lateral Opening Door Hinge Set Lateral Opening Door Hinge Set Lateral Opening Door Hinge Set Lateral Opening Door Hinge Set Lateral Opening Door Hinge Set Lateral Opening Door Hinge Set
Lateral Opening Door Hinge Set

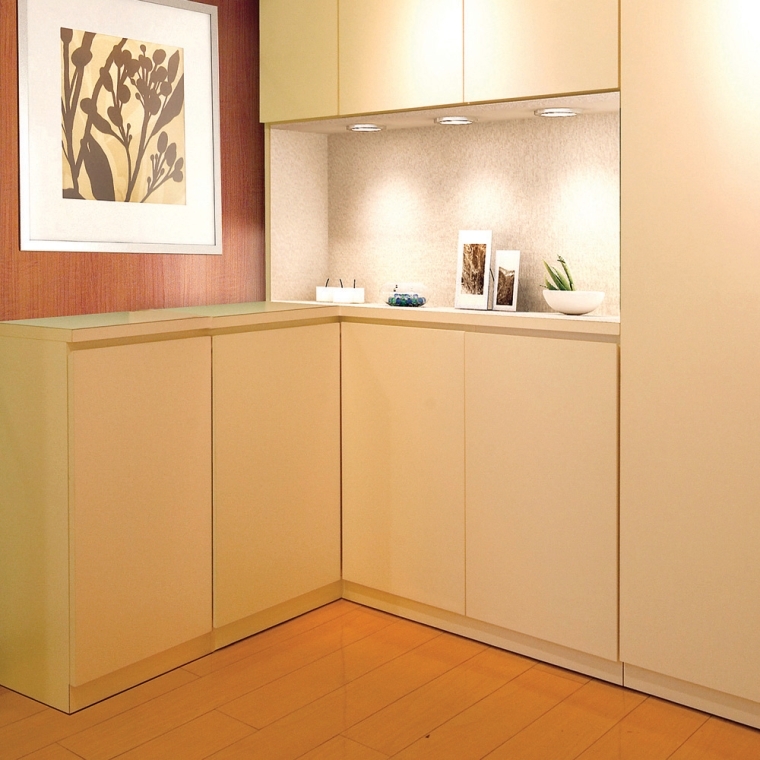

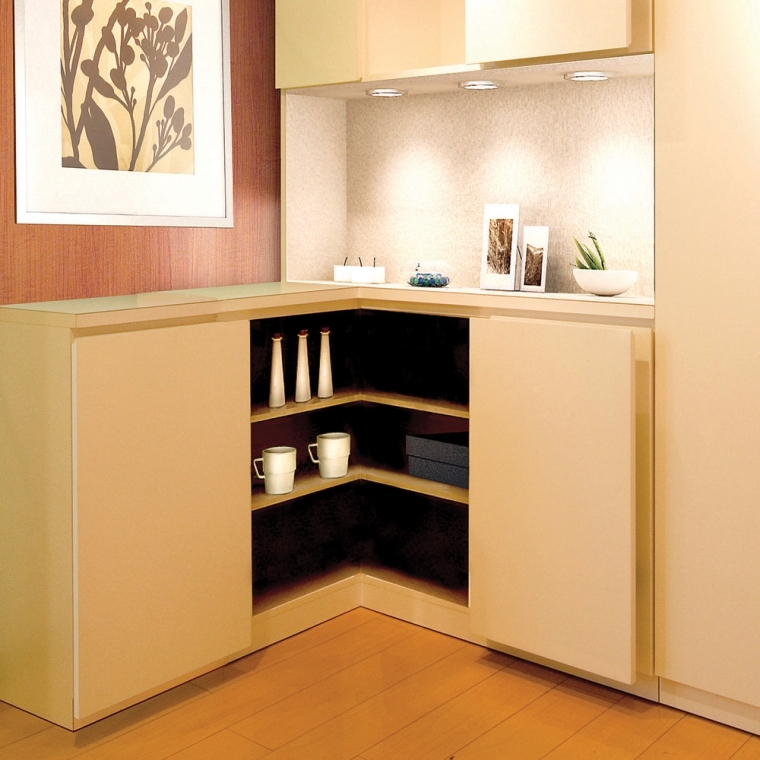

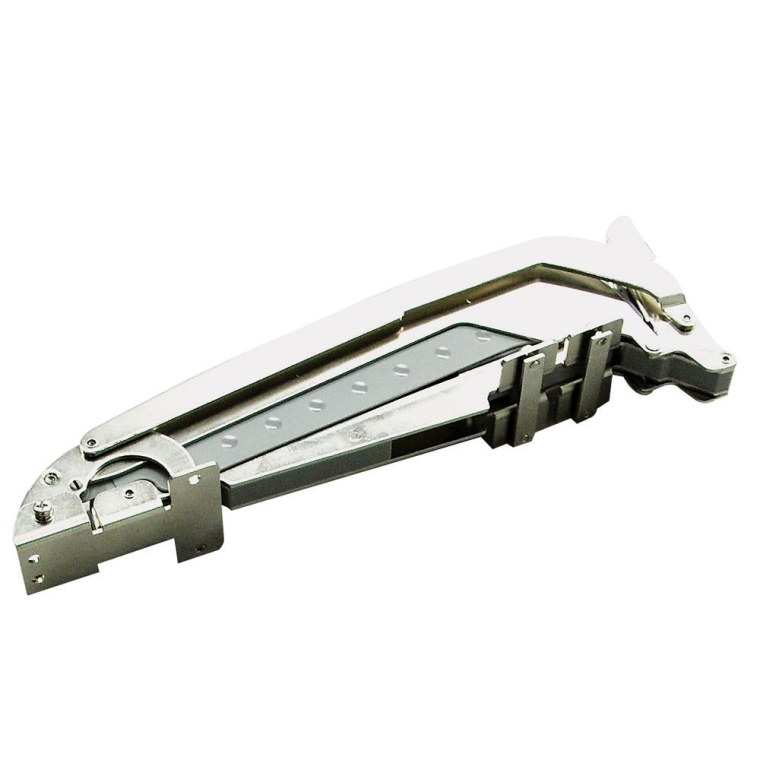

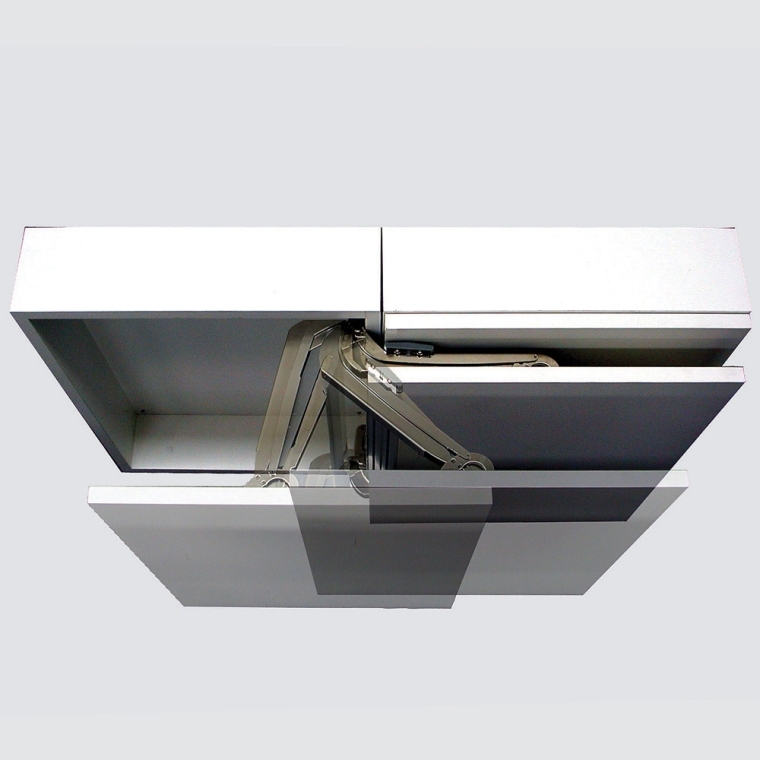

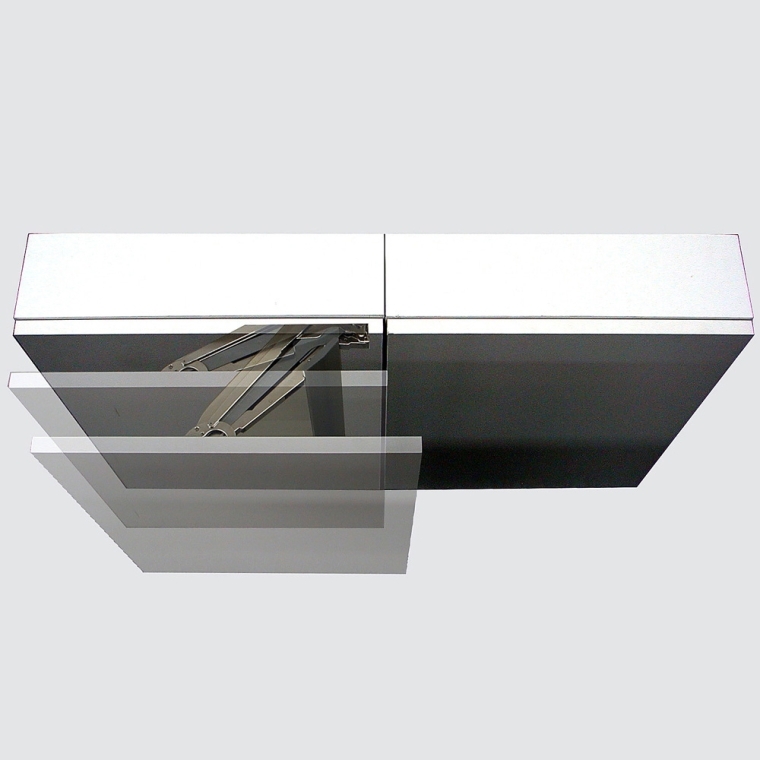

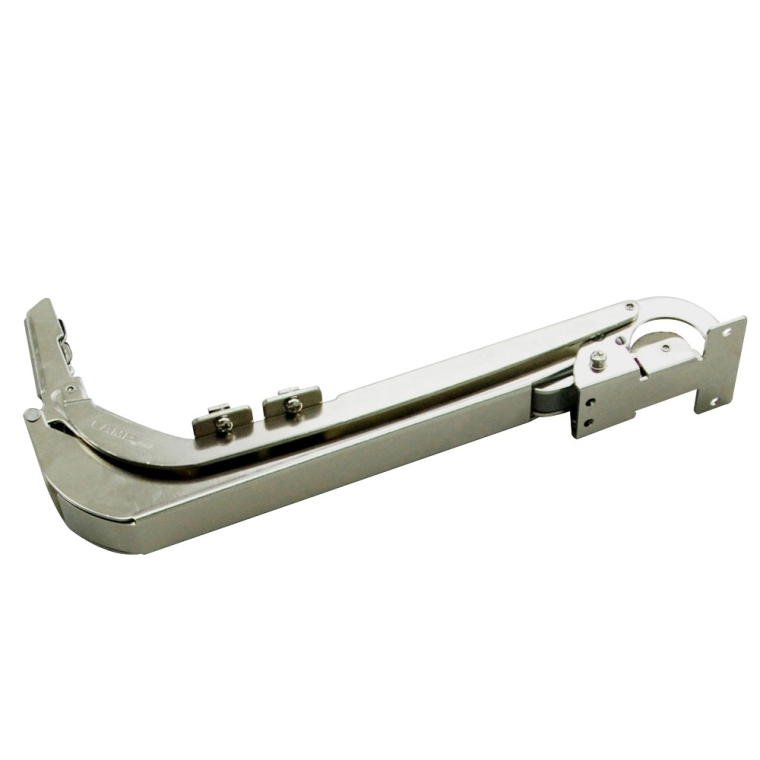

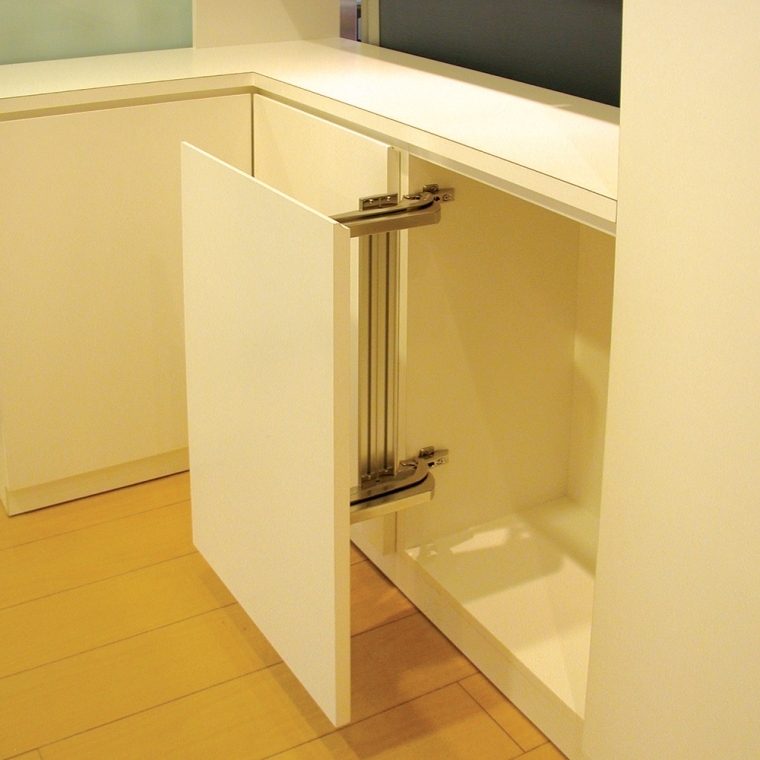

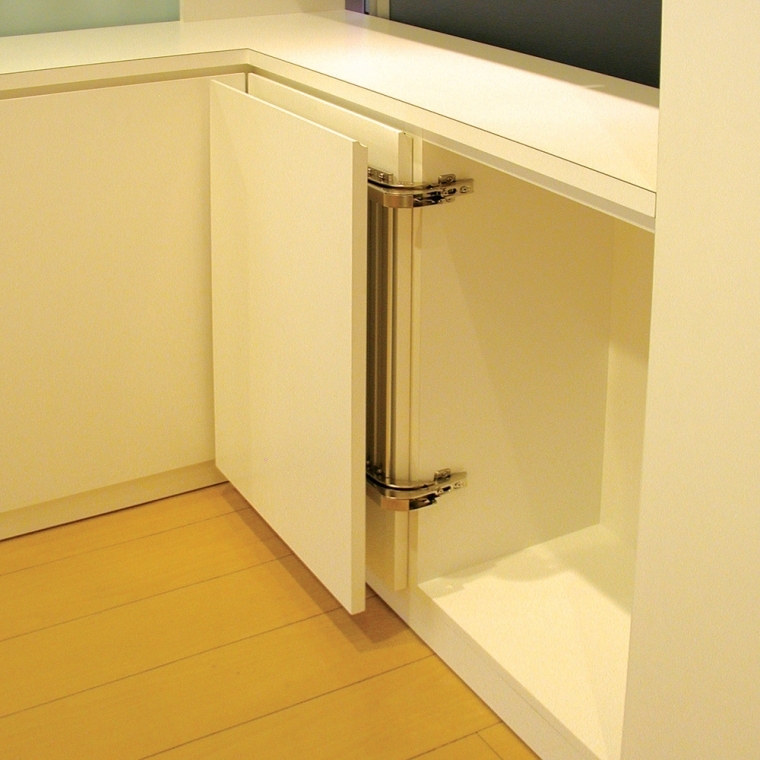

Having problems opening large cabinet doors in tight corners and with limited front space? Solved! These hinges are built with a unique lateral swing mechanism that trims the opening radius of cabinet doors dramatically, requiring less than 10" of front space to open doors from 15-3/4" to 19-11/16" wide. A single hinge set opens one cabinet door. Doors pull out slightly and then swing out to the side. Soft-closing dampers eliminate door slamming, yet your doors will close flush and have a clean look with no external hardware. Easy to set up in single or double door configurations for corners, side-by-sides and kitchen islands. Set contains all hardware needed for one door.

Additional features:

  • Hinge stops in any position
  • Designed for standard 32 system mounting



Specifications:

  • door height range: 23-5/8" to 35-7/16"
  • door width range: 15-3/4" to 19-11/16"
  • door thickness range: 19/32"to 61/64"
  • Maximum door weight: 15.4 lbs
More Information
Brand Sugatsune
Manufacturer Part Number LIN-X450
Weight 4.7000
Technical Documents
2.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
0
0
1
0
Didn't like it at all. The hinges feel forced, it doesn't feel that it will last a long time.
August 30, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 6 questions Browse 6 questions and 4 answers
Why did you choose this?
Rockler Store
I needed to have a swing flat door. This worked well.
Chris D on Jan 19, 2017
I needed to have a swing flat door. This worked well.
Chris D on Jan 19, 2017
Do you make this product for a slightly larger door? 24 Inch wide?
Todd M on Sep 4, 2017
Will these work for Inset doors?
Josh K on Feb 16, 2016
Hi, will the work downward? They just need to be fully up or fully down but clear the opening completely when down. Its for a high cupboard with a sloping ceiling right in front of it so no other way of clearing a door
Andy P on Jun 26, 2016
BEST ANSWER: Hi I am about to install my in the next week or so I had some mirrors put on the face of my doors I let you know if they would work down , They do not have a gas shock or spring so I do not know how fast they come down .
Can the door be mounted to swing upward rather than to the side?
John G on Jul 30, 2015
BEST ANSWER: No, the door will not stay in open position if installed in this manner.
I have a hidden cabinet i made and i need these type of hinges but my cabinet is only 13.5 inches wide. Will these work?
Josh L on Sep 12, 2018
I am looking for a hinge similar to this. I'm looking for hardware that can push out from the wall. Is there a mechanism where I can clear a lighting fixture that projects out 6 inches? It's a recessed medicine cabinet. Can you use Richelieu WEBKIT10916 for Parallel Doors for a lateral application?
stacey m on Feb 1, 2016
