Makita 18V X2 Brushless Cordless 6-1/2'' Plunge-Cut Circular Saw Kit with 55'' Guide Rail

All the precision of a corded Plunge-Cut Saw, with the convenience of cordless—includes batteries, charger, and a 55" track!
Item #

As low as $728.00

In stock
Must be shipped within 48 Contiguous United States.
$629.00   Makita XPS01PTJ 18V X2 Brushless Cordless 6-1/2'' Plunge-Cut Circular Saw Kit (57201)
$99.00   55'' Guide Rail for Makita Plunge-Cut Track Saw (58596)



    Get Expert Advice

    Return Policy

    Makita’s XPS01PTJ 18V X2 (36V) LXT Cordless 6-1/2'' Plunge-Cut Circular Saw Kit delivers precise, accurate cutting without the hassle of a cord. It glides along the included guide rail to produce arrow-straight cuts with minimal tear-out. It combines a powerful brushless motor powered by two included 18V LXT® batteries with Automatic Speed Change™ Technology, which adjusts cutting speed and torque during the cut for optimum performance. The saw has a variable speed control dial (2,500 to 6,300 RPM), with soft start and an electric brake. It has a large 2-3/16'' depth of cut at 90°, with a bevel cut range of -1° to 48° and positive stops at 22.5° and 45°. Star Protection Computer Controls™ allow the tool and battery to exchange data to protect against overloading, over-discharging and overheating. Compatible with Makita 18V Lithium-Ion batteries with the star symbol on the battery.


    • Powered by two included LXT® batteries; X2 LXT® technology delivers more power, speed and run time without the hassles of a cord
    • Makita built electronically controlled BL™ Brushless Motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge
    • Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance
    • Close to the wall cutting (11/16'') for expanded cutting applications
    • Ideal for cutting large wood panels, other wood materials including melamine and MDF, aluminum, and Corian® with optional, material specific blades
    • Large cutting capacity (2-3/16'' at 90° and 1-9/16'' at 45°)
    • Bevel capability (-1° to 48°) with positive stops at 22.5° and 45°
    • Electronic speed control maintains constant speed under load for smooth cutting
    • Soft start feature for smooth start-ups
    • Smooth and convenient plunge release lever for operator comfort
    • Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
    • On-board hex wrench for fast and easy blade changes
    • Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
    • Built-in depth stop allows a preliminary first cut of 2 to 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting
    • Large 1-7/16'' rear dust port directs material away from the operator and easily connects to a vacuum system
    • Includes a premium 55-tooth ultra-thin kerf carbide-tipped saw blade (B-57071) ideal for cordless circular saws offering up to 66% more cuts per charge compared to our standard corded plunge saw blade (B-07353)
    • Slide lever on saw base is designed to engage the included guide rail for stability when bevel cutting
    • Electric brake brings the blade quickly to a stop
    • Compact and ergonomic design at 13-5/8'' long; weighs only 11.2 lbs. with batteries for reduced operator fatigue
    • Precise 90° and 45° bevel cuts as the position of the blade enters the material on the same sight line when using a guide rail
    • Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
    • Dual-Port Rapid Optimum Charger charges two batteries at the same time
    • Rapid Optimum Charger communicates with the batteries built-in chip to optimize battery life by controlling current, voltage and temperature
    • For more efficient charging, the Rapid Optimum Charger has built-in fans to cool the batteries faster
    • Two 18V LXT® Lithium-Ion 5.0Ah batteries (BL1850B) feature an integrated LED battery charge level indicator
    • 5.0Ah batteries (BL1850B) reach a full charge in 45 minutes or less

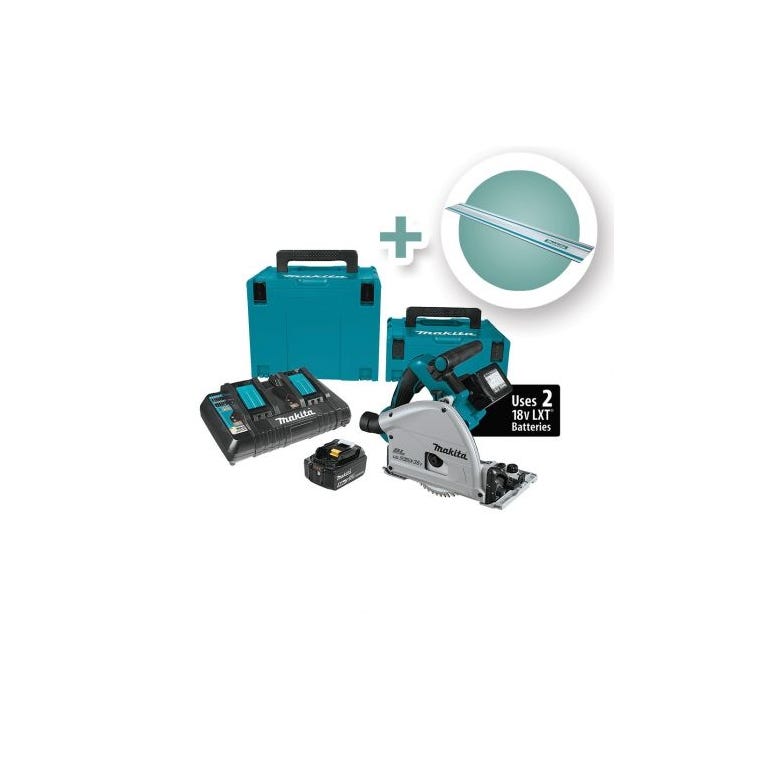

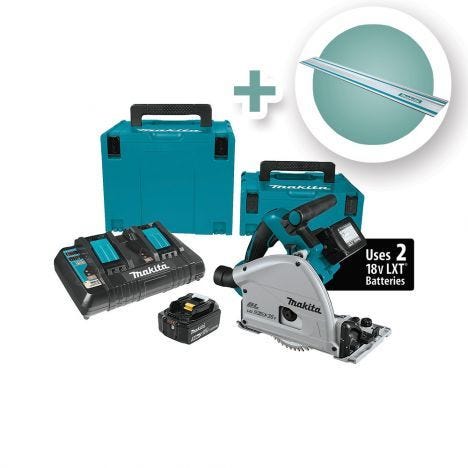

    (1) 18V X2 LXT® (36V) Brushless 6-1/2'' Plunge-Cut Circular Saw (XPS01Z)
    (2) 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
    (1) 18V LXT® Lithium-Ion Dual Port Charger (DC18RD)
    (1) 6-1/2'' 55T C.T. Cordless Plunge Saw Blade, Wood, MDF, Lam. (B-57071)
    (1) Hex Wrench (783203-8)
    (1) Interlocking Case, X-Large (197213-3)
    (1) Interlocking Case, Medium (197211-7)
    (1) 55'' Guide Rail (194368-5)

    Rockler Protection Plan

    With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.

    More Information
    Brand Makita
    Manufacturer Part Number XPS01PTJ + 194368-5
    Tech Spec
    • Blade Diameter: 6-1/2''
    • Arbor: 13/16''
    • Maximum Cut Depth (at 90°): 2-3/16''
    • Maximum Cut Depth (at 45°): 1-9/16''
    • No Load Speed (variable speed): 2,500 - 6,300 RPM
    • Compatible Battery: (2) 18V LXT® Lithium-Ion
    • Overall Saw Length: 13-5/8''
    • Guide Rail Length: 55''
    • Net Weight (with battery): 11.2 lbs.
    • Power Type: Cordless
