No-Mortise Bed Rail Brackets

Item #
46069
Rating:
80% of 100

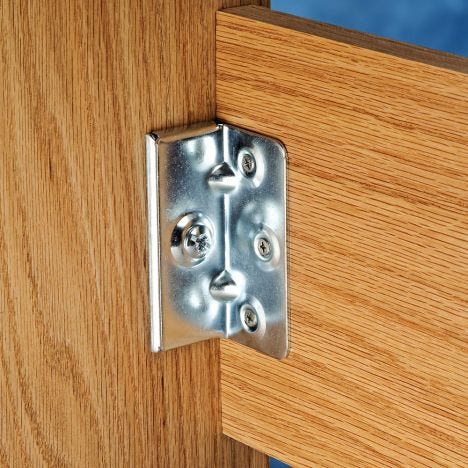

At first glance, these bed rail fasteners don't look like much, but once you cinch them down, you'll see how incredibly rigid the joint is. And with one bolt holding the joint together, assembly and disassembly is fast and fool-proof. The top and bottom tabs provide lateral rigidity, and prevent rotation, while the heavy corner gussets maintain a perfect 90° angle.The M8 (5/16'') connecting bolt is held captive in the bed rail bracket, so you never have to worry about losing it. Made from 0.072 gauge zinc-plated cold-rolled steel. Includes enough brackets for one bed.

(4) Male/Female Pairs of No-Mortise Bed Rail Brackets
(Screws not included, requires #10 screws for assembly)
More Information
Brand Rockler
Weight 1.2000
Tech Spec
  • Single-bolt connection allows fast assembly and disassembly
  • Heavy corner gussets maintain perpendicularity
  • Tabs on top and bottom lock into adjoining piece to prevent rotation, and provide rigidity
  • M8 (5/16'') captive connecting bolt won't get lost
  • 0.072 gauge cold rolled steel
  • Zinc plated
  • Assembled width: 1-3/8"W x 3-9/16"H
Hardware Type Bed Rail Brackets
4.0 / 5.0
16 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
9
2
2
2
1
Very Strong
I have used these on two different beds one gets jumped on by my kids on occasion and it is still rock solid. I would highly recommend these.
User submitted image
User submitted image
User submitted image
July 3, 2019
Purchased
over 2 years ago
Woodworking Experience:
Advanced
strong and simple
Easy to install, great structural integrity. Only suggestion is to offer in Stainless Steel.
June 16, 2019
Purchased
5 months ago
Woodworking Experience:
Intermediate
No-Mortise Bed Rail Bracket
Have used mortise bed rail brackets on several queen size beds that I built with good results. Thought I would try this no-mortise design to see how it compared. The installation was straight forward and fast compared to mortising. Once the brackets are positioned the rest of the installation just needs a drill and screw driver. Also used some double sided carpet taped to aid in the positioning of the brackets and make the drilling a bit easier.

The assembled bracket is quite strong and sturdy. We are pleased with the results. We recommend this rail bracket and would use this rail bracket again on the next bed project.
April 30, 2019
Purchased
7 months ago
Woodworking Experience:
Advanced
used them to build a three level bunk bed and they prove to be very strong and stable ..i would recommend them for any bed not just bunk beds
February 12, 2019
Purchased
9 months ago
Great!!
Worked great. Good Quality. Shipped fast.
February 16, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Very easy to use
March 12, 2017
Purchased
over 2 years ago
Woodworking Experience:
Beginner
very good articles I really liked very useful
October 18, 2015
Purchased
over 4 years ago
Woodworking Experience:
Intermediate
Perfect for my unique purpose
I did not use these for a bed rail. I built a couple of custom sized folding tables for craft shows. The tables needed to fold for transport, but be sturdy and stable when in use. These bed rails worked perfectly. Easy to install, they screw together quickly when on site, and disassemble quickly as well.
May 8, 2015
Purchased
over 4 years ago
Woodworking Experience:
Intermediate
Used to make a quickly removable upper and lower hand rail for steps
I wanted to retain the direct access to the deck from the front and side of the steps for the times when I needed a ramp to load large items into and out of my cabin. Because of this, I never put up a permanent hand rail on the outside of the steps. This bracket design allowed me to build an upper and lower hand rail which is easily and quickly removed or restored with 4 screws and 1 half-inch bolt at the front post base.
August 12, 2014
Works well, installation frustrating
After getting the set installed, they work really well. I would buy them again. However, installation was a little frustrating.
Absolutely no installation instructions came with the set. It is obvious how they should go together/be installed, but it is difficult to line up the two pieces in a corner so that the resulting boards are lined up exactly as you want it. Maybe there is a trick to make it easier but I haven't discovered it yet. With the cover plate on, the piece behind that gets screwed into the board is hidden so I can't put it exactly into place. There is just enough play when pulling it off after marking things with the cover plate in place that the alignment was off enough to really frustrate me.
March 29, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 30 answers
Why did you choose this?
Rockler Store
I have used these on several beds I've built, although I do mortise and tendon the joints these brackets assure a very sturdy structure.
Tony M on Sep 30, 2019
Used before with success
Charles C on Sep 12, 2019
I have used these on several beds I've built, although I do mortise and tendon the joints these brackets assure a very sturdy structure.
Tony M on Sep 30, 2019
I see they are easy to install
jose G on Sep 28, 2019
Used before with success
Charles C on Sep 12, 2019
looks easy to install
MATT C on May 27, 2019
looked easy and sturdy
R H on May 20, 2019
I've used these successfully before on a shop-made poster bed and they've proved quite sturdy. I need a system to build a non-permanent workbench that can be assembled in place in a room with smaller doorways. I think this is just the ticket.
B R on Apr 28, 2019
I decided on No-Mortise Bed Rail Brackets for their easy assembly and strong design.
Shawna J on Feb 21, 2019
easy and sufficient to meet my needs
John U on Sep 17, 2018
Have ordered from your company before - quality merchandise.
Pat S on May 12, 2018
Have purchased your products in the past and always had good luck!
Terry B on Apr 24, 2018
small side rails
Lynn K on Jan 29, 2018
easier mounding
Larry K on Nov 26, 2017
looked easy to use
Scott R on Dec 19, 2016
what I needed
murray r on Dec 5, 2016
no mortise
christine c on Dec 3, 2016
Converting antique wood head board and foot board to queen size
Dorian C on Nov 21, 2016
My bed brackets are broken and these appear to be sturdy enough to not wear and rotate.
Larry R. L on Oct 23, 2016
Strong recommendations, and looks like very basic installation
Thomas J G on Jun 26, 2016
because they are awesome.
Bob R on Mar 11, 2016
Purchased and did not use.
William M on Jan 20, 2016
Our bunk beds are becoming wobbly, and these may help.
Herc H on Dec 7, 2015
Looks easy and strong
Robert B on Nov 10, 2015
easy assembly
Raymond L on Oct 19, 2015
Easy for our customers to install
Kevin M on Sep 17, 2015
Used item before
Alice M on Jul 28, 2015
Looks like the perfect thing to attach rails to a headboard for my son.
Doug T on May 29, 2015
I see they are easy to install
jose G on Sep 28, 2019
looks easy to install
MATT C on May 27, 2019
Do you have installation instructions? Most brackets have them. This model does not.
Rich P on Jan 15, 2017
BEST ANSWER: I do not recall that there were any instructions. my wooden side rail fit into my headboard, and then i attached the brackets afterwards.
Will this fit a 2x4 rail?
Jennifer E on Dec 4, 2017
BEST ANSWER: Yes it fits on a 2x4.
Which part is connected to the rail?
Benjamin A on Oct 31, 2017
BEST ANSWER: The plate goes on the headboard and the L-shaped price goes on the rail and then hooks into the playe.
