Oneway Talon Chuck System Zoom

See it in action:

NewWoodworker Presents: Candy Dish Video Tutor
NewWoodworker Presents: Yarn Bowl Project (Excelsior Mini Lathe & Oneway Talon Chuck)
Oneway Talon Chuck System Review

Oneway Talon Chuck System

Item #: 20761
Perfect for mini and mid-size lathes.
In Stock
$213.50
Each
Sign up for price alert Add to Wishlist Find in Store

Overview

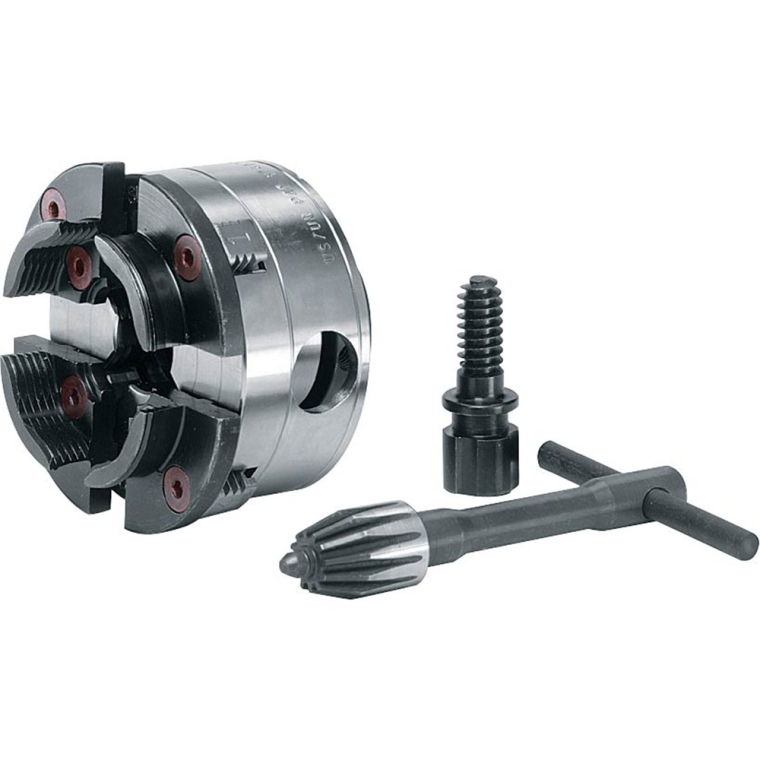

This is an ideal chuck for owners of mini and mid-size lathes who want a power-grip, key-operated chuck. It's perfect for lathes with a 16" swing or less! Features single-hand key operation, patented over-extension safety system, 4-jaw scroll chuck and smooth-glide base jaw design. The nickel-plated body of the Talon Chuck is 3-1/2'' in diameter, and it comes with standard #2 jaws (internal chucking capacity of 2" to 3-1/2" and external capacity of 1-5/8" to 2-7/8").


Requires one of the three inserts listed below (sold separately) for mounting on the lathe. The insert must fit the lathe's drive spindle.

  • 3/4" x 16 tpi Insert (#22733)
  • 1" x 8 tpi Insert (#22726)
  • 1-1/4" x 8 tpi Insert (#21358)

What's included

(1) Oneway Talon Chuck System

Technical Details

The following additional jaws (listed with chucking capacities) are compatible with the Talon Chuck and can be purchased separately.

#1 Jaws (22740)

  • External (compression): 3/8" minimum, 1-3/4" maximum
  • Internal (expansion): 7/8" minimum, 2-3/8" maximum

#3 Jaws (#22747)

  • External (compression): 2-7/8" minimum, 4" maximum
  • Internal (expansion): 3-3/8" minimum, 4-5/8" maximum

Mini Jumbo Jaws (#22761)

  • External (compression): 2" minimum, 8-1/8" maximum
  • Internal (expansion): 4" minimum, 10-1/8" maximum

Jumbo Jaws (#22754)

  • External (compression): 2-7/8" minimum, 11" maximum
  • Internal (expansion): 4-7/8" minimum, 12" maximum

  • Brand: Oneway
  • Manufacturer Part Number: 2985
  • Weight (lbs): 3.8500

Technical Downloads
