$32.99 Each
Direct Ship

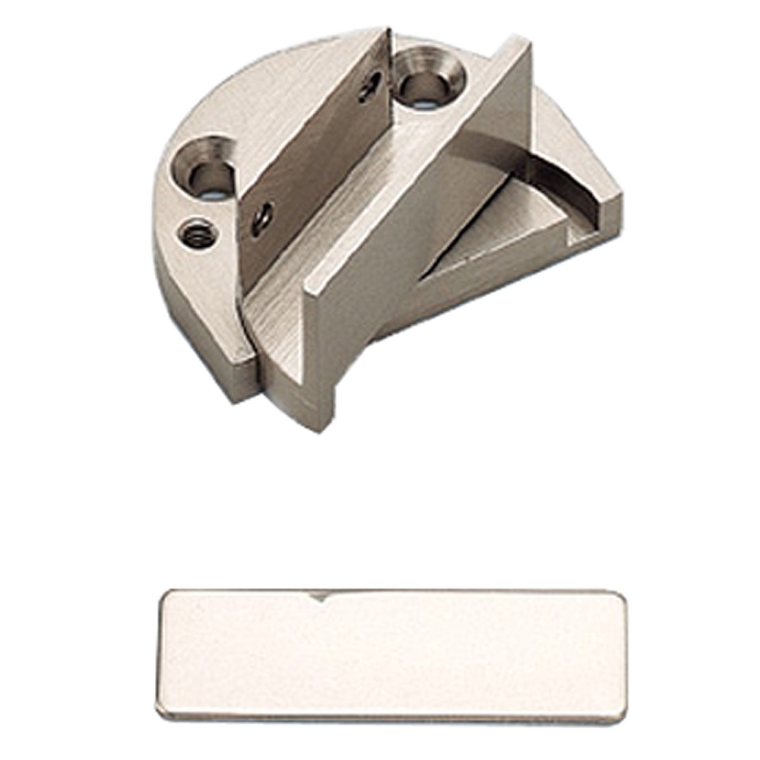

Pivot Type Inset Glass Door Hinge, GP-40 - Satin Nickel

Item #
1014181

Sold individually and does not require boring into the glass

  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 28 business days.
  • 15% restocking fee on all returned merchandise.
  • Please call customer service before returning product.
(1) Pivot Type Inset Glass Door Hinge, GP-40 - Satin Nickel
(No screws included)
More Information
Brand Sugatsune
Manufacturer Part Number GP-40
Weight 0.0000
Tech Spec
  • Fit Type: Pressure (no boring)
  • Maximum Glass Door Thickness: 5/16'' (8mm)
  • Maximum Door Weight: 8.8lbs/pr (4 kg/pr)
  • Maximum Door Width: 17-3/4''
  • Maximum Door Height: 27-9/16''
  • Material: Brass
  • Finish: Satin Nickel
Technical Documents
Prop 65 Warning WARNING This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product
There are no reviews for this item. Write Review
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
the tech detail state •Maximum Door Width: 17-3/4'' would this not depended on the pivot point?
Mike D on Apr 5, 2016
BEST ANSWER: Yes the placement of the "hinge" will modify the distance between the glass and the frame of the cabinet or other .application however the parameter is "max width" Glass is heavy ( depending on its thickness). I would even recommend a smaller dimension if using 1/4 inch glass plate. These are very well made appliances but even they have the load limits. JD
