In stock
With just a half-turn of a hex wrench, router bits pop in and out with absolute ease.
Grouped product items
Product Name Price Qty

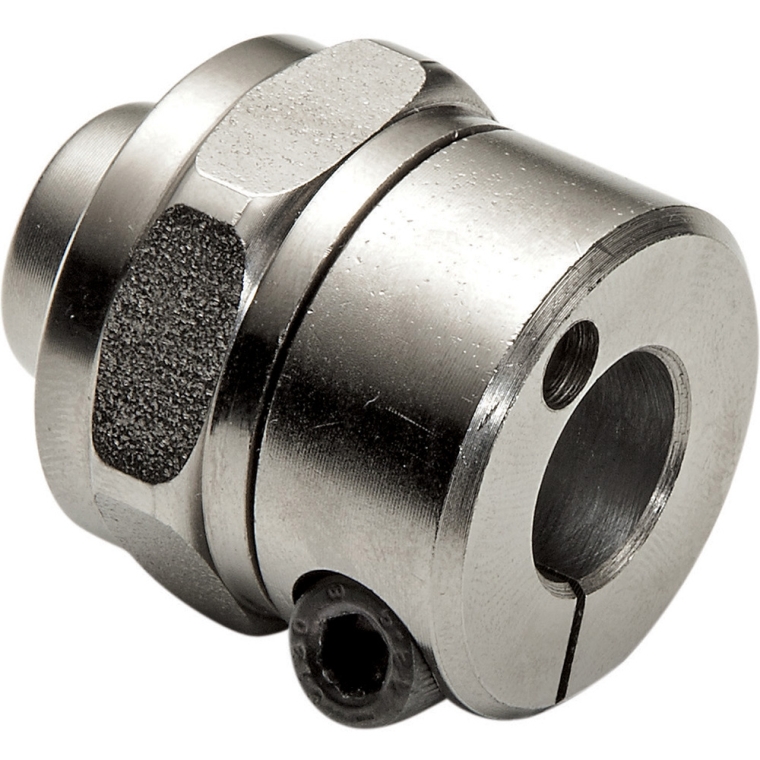

Musclechuck™ Quick-Change Router Chuck, Type 1
Musclechuck™ Quick-Change Router Chuck, Type 1 Item #: 43849
In stock
$69.99
Each
Musclechuck™ Quick-Change Router Chuck, Type 4
Musclechuck™ Quick-Change Router Chuck, Type 4 Item #: 47222
In stock
$69.99
Each

Quick-Change Musclechuck™

Item #
GRP32602_1
Rating:
88% of 100
Quick-Change Musclechuck™ Quick-Change Musclechuck™ Quick-Change Musclechuck™ Quick-Change Musclechuck Rockler Router Table Package with Accessories Review: NewWoodworker
Quick-Change Musclechuck™

One router bit change with the Musclechuck™ will have woodworkers wondering why this ingenious chuck wasn't invented along with the router. With just a half-turn of a hex wrench, router bits pop in and out with absolute ease. No more rummaging around for the right wrenches, or skinning your knuckles on the router housing. In fact, you don't even have to use the collet lock - ideal for table- or CNC-mounted routers. Not only that, but the extra reach afforded by the Musclechuck allows you to perform above-table router bit changes in seconds. Unlike many other quick-change router chucks, this one doesn't rely on a cam, so it won't damage the router bit shank, and there's no risk of loosening over time. Available in two types for different groups of routers.


Features:
  • Easy installation: Musclechuck threads directly onto your router's existing spindle
  • The Musclechuck accepts 1/2" shanks out of the box, and a 1/4" reducer (#44454, sold separately) is available for 1/4" shanks
  • Chuck adds approximately 1/2" to the length of your router spindle, which makes more cutting length available when the router is mounted in a table

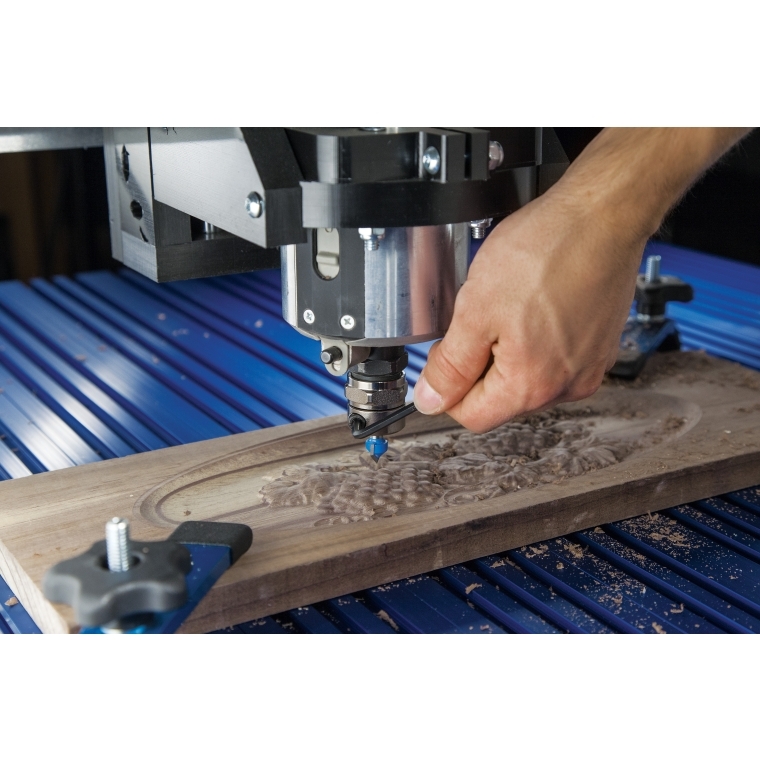

  • Use an ordinary 4mm or 5/32 in hex wrench (sold separately) to secure the bits. A ball-ended hex wrench makes for easy above-table bit changes, and a T-handled model is ideal

Which Musclechuck do I need?

Type 1 Musclechuck fits the following Porter-Cable routers:


  • 630
  • 690
  • 691
  • 693
  • 890
  • 7518
  • 7519
  • 7536
  • 7537
  • 7538
  • 7539

Type 4 Musclechuck fits the following routers:


  • Bosch 1613 AEVS
  • Bosch 1617 EVS
  • Bosch 1618 EVS
  • Bosch 1619 EVS
  • Bosch 1400E
  • Bosch GOF2000
  • Makita 3612C
(1) Quick-Change Musclechuck™
More Information
Weight 3.8000
Tech Spec Specifications:
  • Diameter: 1.1 inch
  • Length: 1.3 in (Approx)
  • Bore: .500 in (+.001/ -.000)
  • Weight: 2.5 oz
  • Concentricity: <.001 in
  • Material: High Quality Alloy Steel.
  • Corrosion Protection: Electroless Nickle
  • Cap Screw: 5mm Grade 8
  • Warranty: 30 day money back guarantee including shipping & handling.
  • Nut Torque Max: 12 ft-lbs.
  • Cap Screw Torque Max: 125 in-lbs.
  • Slip Torque: 435 in-lbs. (Approx)
  • Mechanical Advantage: 3.5/1 (Approx)
4.4 / 5.0
35 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
25
5
1
1
3
DeRosa Engineering (Musclechuck) is transparent
The owner, John DeRosa answers the phone and gives complete answers to your questions. My unit had a hitch and john offered to rework the chuck and the spindle on my router too. I shipped him everything and he made it right. Turns out the chuck was ok and I needed to be more exact in the way i mounted it. He also replaced my 1/4" collet as he had ones in stock that were of tighter tollerance. If I could give 6 stars I would.
August 8, 2018
Purchased
1 year ago
Woodworking Experience:
Beginner
I should have gotten this years ago. Above table changes make router use so much easier. Should include the 5/32 long handle hex though
September 27, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Easy to change out bits.
September 2, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
Rockler quick change routing chuck
Just wonderful, if you are into routing this piece is a must, changing bits is a wiz. Highly recommend.
July 10, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Muscle Chuck Review
This is a fantastic item. The muscle chuck is well balanced and I have yet to have an issue with runout or a loose bit in the 2 years I've used this chuck on my Porter Cable 890 (CNC Mounted) Router. I purchased this as I was used to an Allen Wrench and clamp type system for my smaller rotary engraver. The time saved changing bits is invaluable.
User submitted image
Added Apr 3, 2017
April 3, 2017
Purchased
over 4 years ago
Excellent Collet
I've only used this collet a couple of times. It worked great. The only issue that I had was in using the 1/4 inch adapter. I had to use a screwdriver to help pry the adapter out of the collet.

Fortunately, there is a lip on the adapter that prevents the collet from sliding through the collet and it is positioned in such a way that you can place a screwdriver point under the lip to pry it up in order to remove it. That was no big deal, just a slight inconvenience. Be careful when you insert a 1/2 inch bit as it will drop all the way through the collet if you don't hold on to it before tightening the hex bolt. Again, nothing to get excited over, just pay attention to what you are doing and you won't have any problems.
March 19, 2017
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
This is a great addition to my router table which makes changing router bits very easy.
February 19, 2017
Purchased
over 4 years ago
Woodworking Experience:
Advanced
Outstanding
Makes life so much easier when changing bits
February 13, 2017
Purchased
over 2 years ago
Nice features
Bought the Musclechuck during a "soft moment". Glad I did. Limited use so far but it works well.
February 3, 2017
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Terrific addition to your router
I liked the MuscleChuck so much that I ordered another one. I have one on a CNC router and wrangling with those wrenches (before I added the MuscleChuck) was terrible. Same thing with my router table. It was difficult to get a wrench on the shaft and hold down the lock at the same time. The MuscleChuck just made it really, really easy and convenient. I am also giving one as a gift to a very special woodworker who has helped me out along the way. He is going to love it!
November 29, 2016
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 20 questions Browse 20 questions and 75 answers
Why did you choose this?
Rockler Store
Very high quality. Really does save time and is easy to install and use.
Daryl H on May 24, 2018
I saw a video on youtube by fine working and he showed how these work. I busted my knuckles loosening my chuck so I am interested in making that not happen again. :)
Fernando L on Feb 22, 2018
Very high quality. Really does save time and is easy to install and use.
Daryl H on May 24, 2018
To make it easier to change router bits.
Gary M on Feb 27, 2018
I saw a video on youtube by fine working and he showed how these work. I busted my knuckles loosening my chuck so I am interested in making that not happen again. :)
Fernando L on Feb 22, 2018
Great Reviews. My old Jacobs quick change chuck quit working.
JJ on Jan 3, 2018
easy bit change on cnc router
John F on Dec 6, 2017
Ease of bit changing
Paul L on Nov 21, 2017
I like the idea of being able to make quick router bit changes and this seemed to get good reviews.
David S on Nov 16, 2017
Bought one for my Porter Cable router for my CNC and love it. Quick and easy and no runout
Wayne R on Aug 16, 2017
Anything that makes a router easier to use is worth the money.
Linda D on Jul 21, 2017
To make tool changes faster
Timothy N T on Feb 28, 2017
For an easier method of router bit changes
Roy B on Feb 13, 2017
Ease of use
Ray H on Feb 10, 2017
ease of use with table
Duane R on Jan 4, 2017
Make life easier
Michael A on Dec 4, 2016
Much quicker and easier to change bits with one of these.
Richard H on Jun 29, 2016
Because I though it'd be useful. (I was wrong.)
Mark C on Jun 13, 2016
I chose this adapter to make above-the-table bit changes easier. While the bit changes were easier, with just an Allen wrench, I could never eliminate the vibration this adapter caused, even after following the manufacturer's instructions. Sadly, an expensive piece of kit that sits in the drawer now.
Rob M on Jun 9, 2016
Product review
john c on May 9, 2016
Makes changing router bits on my router table a breeze!
Frank M on Apr 16, 2016
tired of messing with wrenches underneath table...
James C on Apr 5, 2016
Convenience
Christopher D on Mar 19, 2016
makes it easy to change bits
DON N on Mar 7, 2016
Highly recommended by several individuals and forums. I've got the Bosch 1617 and the Router Table Package. Looking forward to having the Collet in time to use on Christmas morning!
Peter M on Dec 17, 2015
Good reviews
Hopefully easy to work
Joe A on Dec 1, 2015
recommended for shark cnc. Have not needed it yet.
William B on Nov 30, 2015
Easier change of bits with table mounted router.
D Stephen M on Nov 5, 2015
Easy change of bits in table router
Carolyn Y on Oct 6, 2015
great chuck
Christopher on Sep 17, 2015
Tired of changing bits with 2 wrenches... thought I would give it a try. Love iT!
Ernest on Aug 23, 2015
makes changing router bits easy
Harold W on Aug 21, 2015
Use with router.
Mark J on Aug 20, 2015
To speed up CNC routing bit change process.
Darryl W on Aug 13, 2015
For easy bit changes on the cnc
Ken B on Jul 16, 2015
This was recommended after an incident with my router table.
Ken B on Jun 12, 2015
Changing bits in my router table is very cumbersome and time consuming
Fred W on Jun 2, 2015
Having issues with my hands & need a easier way to change bits on my router. This fills the bill.
Richard D on Jun 1, 2015
Excellent addition to my CNC router spinal! Have been using it for a couple of months now and it save me a lot of time in bit changes as well as recuses the ware and tare on the bits due to it's circular clamping system. Freeing up a hand to navigate the bit has also saved many a project from dropping the bit onto the work verses the old collet system I had to hold two wrenches with both hands.
Mark J on May 12, 2015
Good product
Javier U on Apr 22, 2015
Article in Fine Woodworking
CHARLES B on Apr 21, 2015
To use with 1/4 router bits
Ron F on Apr 18, 2015
My husband wants it for his birthday.
Elizabeth G on Apr 15, 2015
To make it easier to change router bits.
Gary M on Feb 27, 2018
Great Reviews. My old Jacobs quick change chuck quit working.
JJ on Jan 3, 2018
Do either one of these fit the Bosch Colt 1 hp router?
Mike R on Apr 6, 2018
Does the type 4 fit the Bosch MR 23 EVS?
Roger K on Nov 1, 2015
BEST ANSWER: Sorry, I can't help you, I am using it on my Porter Cable router.
Can the 1/4" adapter be use a Craftman router? If it does I could be interested in the quick change Musclechuck ?
Kenneth B on Oct 14, 2015
BEST ANSWER: Not entirely true... the Type 4 is for
Sears Craftsman 26620, 2768, 27666, 27680, 27669, 27683, 2767
Will this work on dewalt router?
kingsley s on Jul 11, 2017
BEST ANSWER: The two we sell only work on the Porter Cable, Bosch, and Makita. I believe that Musclechuck has chucks that fit many other brands. Check them out at http://www.musclechuck.com/
Do they fit on a hitachi plunge router ?
A shopper on Jul 6, 2015
BEST ANSWER: Rockler does not currently carry the version of Musclechuck that fits the Hitachi rouiter.
I want to use this on my Porter Cable router mounted in a table. what is the difference between a type 1 and a type 4 and which do I need?
Buddy on Apr 8, 2015
BEST ANSWER: As stated in the Technical details for the Musclechuck:
•Type 1 Musclechuck fits Porter Cable 630, 690, 691, 693, 890, 7518, 7519, 7536,7537, 7538, 7539 only.
•Type 4 Musclechuck fits Bosch 1613 AEVS, 1617 EVS, 1618 EVS, 1619 EVS,1400E, GOF2000, Makita 3612C.

Since you want to use in on your Porter Cable router, as long as it's one of the models listed, the type 1 Musclechuck would be the correct one to use. Also, unless all your router bits are 1/2" shafts, you'll also want the 1/4'' Collet Reducer for Musclechuck™ Quick-Change Router Chuck Item #: 44454.

Hope this answers the question.
Ron
Can I use the 1/4" adapter that came with my Bosch 1617 or do I have to use the one from Musclechuck?
Ted K on May 25, 2015
BEST ANSWER: If I'm not mistaken, the 1/4" adaptor for the Bosch 1617 screws on to the router's chuck. If so, It won't work with the Musclechuck. To use your adaptor on your router you would have to remove the musclechuck and install your adaptor. The 1/4" adaptor for the Musclechuck slides into the mounting hole for 1/2" bits. It is slotted in several places around it perimeter and is intended to compress along its full length as the tightening screw on the Musclechuck is turned. (A caution comes with the 1/4" adaptor that one of the slots in the 1/4" adaptor MUST align with the slot in the Musclechuck.) Hope this answers the question.
Will the quick chuck work with a Bosch 1613evs . It says it works with a 1613 aevs ?
Ranell W on Mar 9, 2017
BEST ANSWER: I have my muscle chuck on my CNC Shark using a Porter Cable Router. I know they make it for many different models.
What about the Porter Cable 892?
A shopper on Sep 3, 2015
BEST ANSWER: The Type 1 (one) works with PC Products. I found the chuck is a bit nosey, but work well. I think the 1/4" collet reducer is a must. I use it all the time with my standard 1/2' coliet.
Which one will work for hitachi tr-12 plunge router?
A shopper on Jul 21, 2015
BEST ANSWER: Sorry, we do not carry a version that is compatible with this model.
Would a Musclechuck Type 1 work with a Porter Cable 895PK router? I saw that a PC 890 would. Is that also true for the entire 890 series of PC routers?
Bradford T on Nov 2, 2018
BEST ANSWER: Can’t say for sure Musclechuck will fit your router or not. I have an 890 series router (instruction manual common for full 890 series) & have been throughly delighted with it.
Does it thread on a 1/2" shaft ?
Ronald S on Oct 14, 2018
BEST ANSWER: The Muscle Chuck is specific to your router make and model. They can hold a 1/2” shaft router bit and with the insert can hold a 1/4” bit. These are the best router upgrades ever and worth every penny!
What type musclechuck will fit a Craftsman combo router?
rusty h on Mar 10, 2019
BEST ANSWER: Musclechucks for additional makes and models of routers are available on the Musclechuck website.
Does this collect fit a 1611 evs Bosch router?
Bill jr on Feb 23, 2019
BEST ANSWER: I have a 1617evs that I installed the musclechuck on . This is a router that I have attached to my router table lift system. This system makes changing bits much easier without the use of wrenches.
Which one will fit the Next Wave Automation water cooled spindle?
Ollie on Jun 18, 2018
BEST ANSWER: According to the manufacturer, the CNC Shark Water-Cooled Spindle is not compatible with the Musclechuck.
will this fit Makita 3601B?
Simon on Feb 21, 2018
BEST ANSWER: I can’t say if it will, but mine lasted about 6 months and then wouldn’t tighten enough to hold the bit any longer. I went back to the stock collet.
I have a Task Force Model 1314 - will this work and if so - which model?
Jennifer on Sep 13, 2018
Is there one available for a Craftsman 27683 router?
Jimbo on May 18, 2018
Which type fits an ELU 3hp? Thanks for your help.
Steve on Dec 10, 2017
