$21.99 Each
In stock
Attaches to your compact plunge router to rout perfectly centered mortises in stock up to 4'' thick!

Rockler Compact Router Mortise Centering Base

Item #
57523
Rating:
76% of 100
Rockler Compact Router Mortise Centering Base Rockler Compact Router Mortise Centering Base Rockler Compact Router Mortise Centering Base Rockler Compact Router Mortise Centering Base Rockler Compact Router Mortise Centering Base Rockler Compact Router Mortise Centering Base
Rockler Compact Router Mortise Centering Base

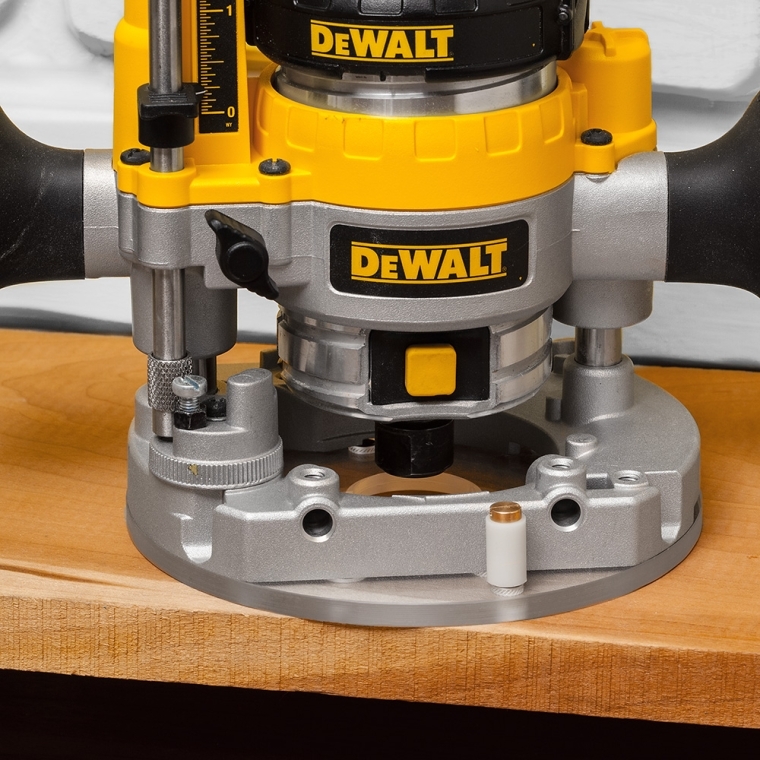

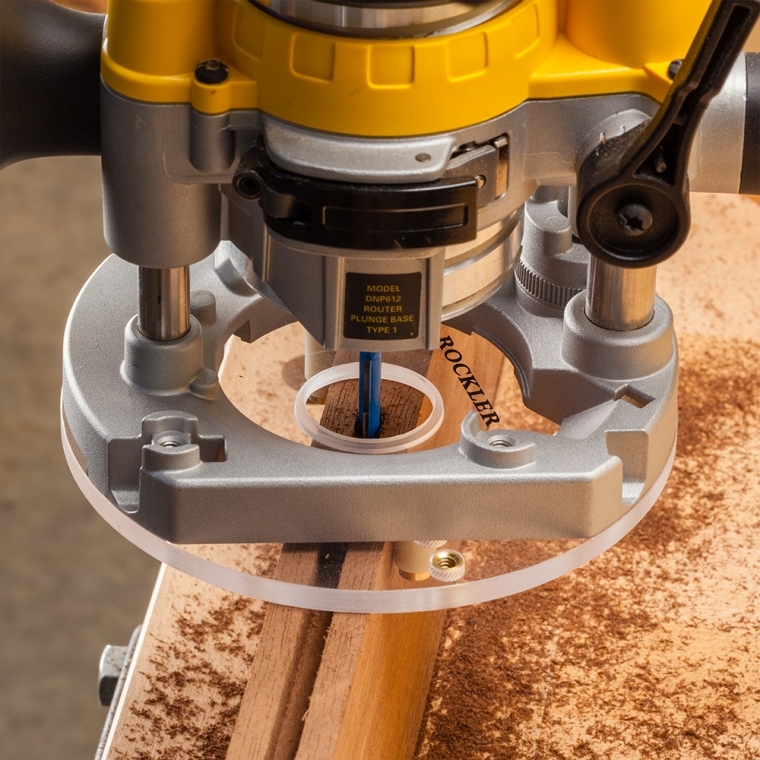

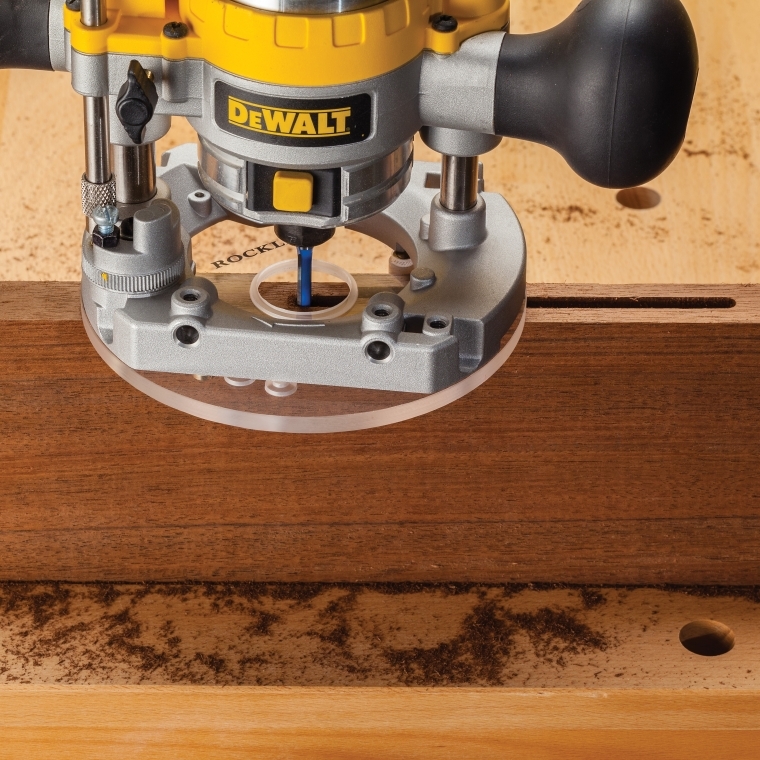

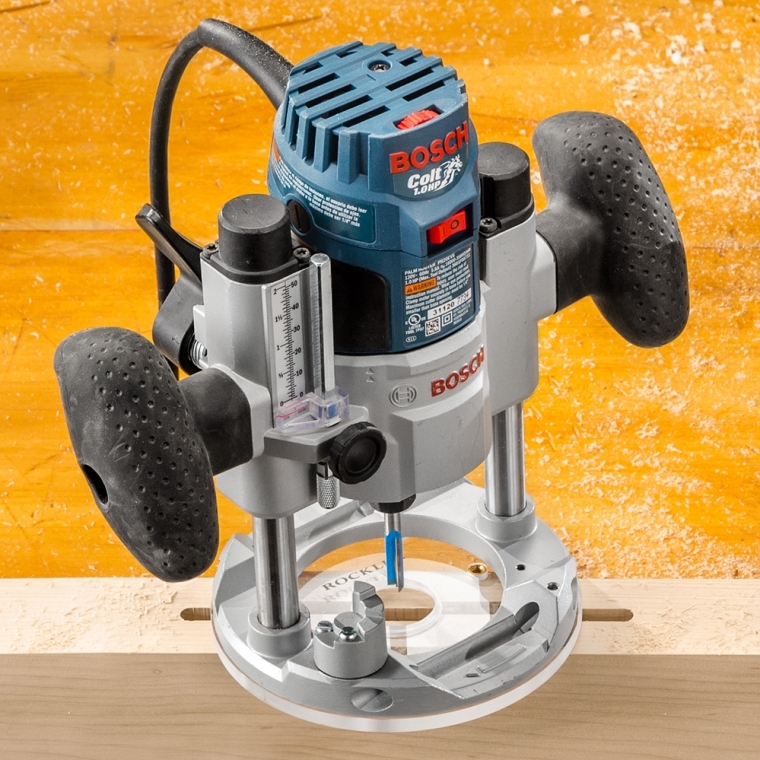

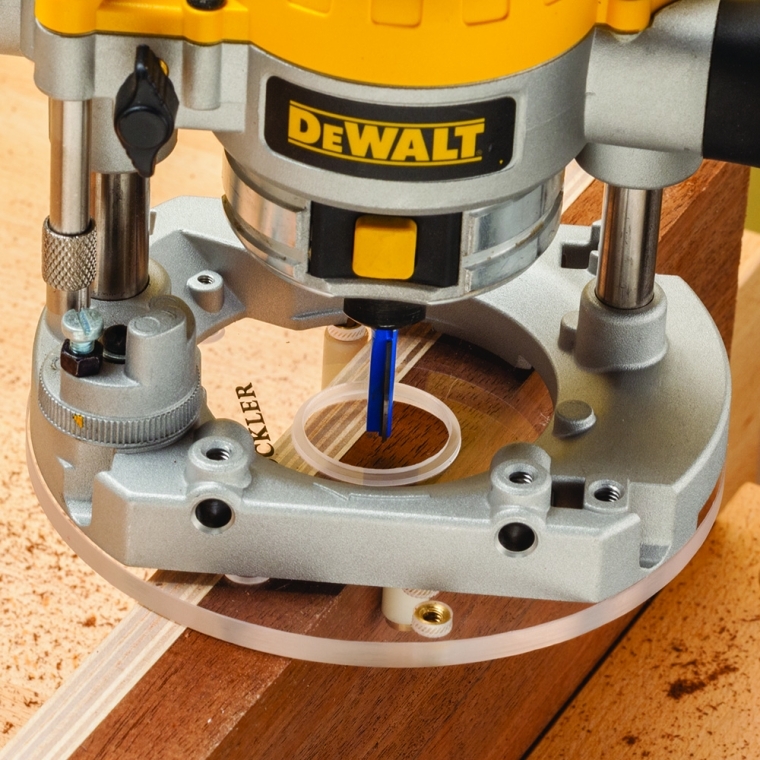

With this ingenious router baseplate installed on your compact plunge router, perfectly centered mortises on the edge of your workpiece couldn't be simpler to achieve. Just rotate your router until the included guide pins contact both faces of your workpiece, then plunge and rout. The pins are positioned in threaded inserts to adapt to a range of stock thicknesses up to a maximum of 4''. If you need to cut an offset mortise, simply clamp a board equal to the thickness of the offset to one side of your workpiece.  Base is pre-drilled for Bosch, Dewalt and Porter-Cable compact plunge routers (#41770 and #41462, sold separately).

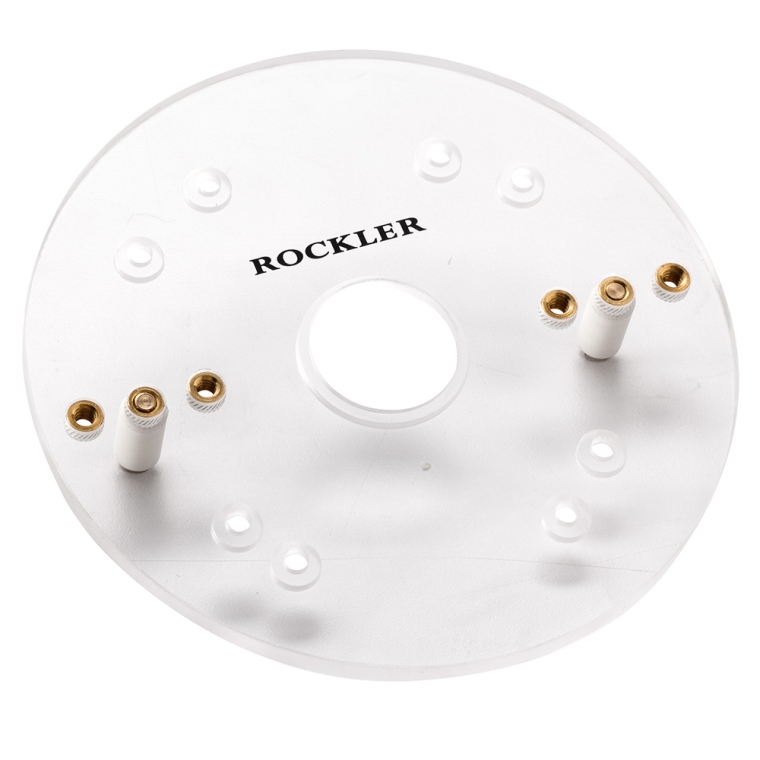

(1) Rockler Compact Router Mortise Centering Base
(2) Brass Pins with Nylon Guides
(1) Set of Mounting Hardware for Router
More Information
Brand Rockler
Manufacturer Part Number No
Weight 0.4500
Tech Spec
  • Material: 1/4'' acrylic base with brass pins and nylon guides
  • Base Diameter: 5''
  • Router Bit Opening: 1-1/4''. The base also has a center opening that is compatible with the standard guide bushings.
  • Maximum Stock Thickness: 4''

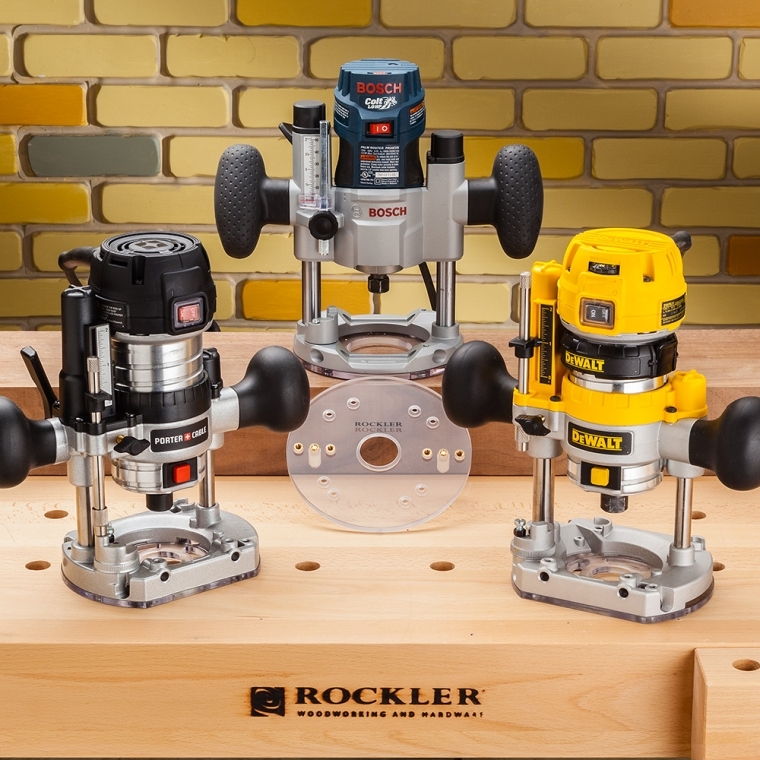

  • Pre-drilled to Accept: Bosch, Dewalt and Porter-Cable Compact Plunge Routers
Technical Documents No
Type Router Base
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

3.8 / 5.0
11 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
5
2
2
1
1
Needs work.
The base works well for sign making. I use it on my Dewalt router. The holes line up correctly for the guide bushings. The mortis pins need to be spaced differently. Hard to hold perpendicular to the end of a board.
September 22, 2018
Purchased
1 month ago
Woodworking Experience:
Advanced
Centering router base
I've found the clear, centering base to be very helpful for cutting mortises.
January 9, 2018
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Worked perfect
Could not have been more pleased. Checked against 3 scrap pieces and it was center every time. No more spending un-necessary time trying to find center line, I drew top and bottom lines for the mortise and cut. I used my Bosch Colt 20 EVS with the plunge attachment. To help some of you guys out, on the instruction sheet it has the Colt20EVSPK, Porter Cable 450PK and DeWalt DWP611PK.
November 23, 2017
Woodworking Experience:
Intermediate
Worked well
worked well, but would like to see the pins sleeve to be able to rotate to eliminate drag and unscrewing the pins.
August 3, 2017
Purchased
1 year ago
Great jig
I had previously used a shop made jig that was acceptable, however this far surpassed my shop made unit both inaccuracy and ease of use
April 27, 2016
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Great accessory!
The mortising plate works well.
March 16, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Works great for me
March 25, 2016
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
i had to layout and drill holes to mount my makita plunge router,too bad the mfg. did not include hole paterns for more routers. the plate worked fine,though you must be careful to maintain pressure on the pins or the router will wander off center
August 12, 2018
Purchased
3 months ago
Woodworking Experience:
Advanced
Centering Base
Nice base,however, it does not fit my Craftsman router. However, I was able to carefully center it on my router and drill the three holes necessary to attach it. It works fine to rout the mortise.
April 18, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Does not fit the new Bosch Colt or the compact Ridgid palm router etc etc
I own 4 routers with 6 bases. This base fits none of them. I guess it was my mistake but I assumed it would fit a majority of routers. Come to find it out only fits 3 and must be specific, as in, it will fit one kind of Bosch Colt but not the other. Very annoying when all they had to do was drill one more set of holes to allow far more options.
June 30, 2018
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 10 questions Browse 10 questions and 18 answers
Why did you choose this?
Rockler Store
Lost the first one, worked good, need it
Bruce D on Mar 4, 2018
For use with my Bosch Palm Router and the Rockler Sign Making kit
Dennis C on Jan 26, 2018
Lost the first one, worked good, need it
Bruce D on Mar 4, 2018
I need it for mortises
David C on Jan 28, 2018
For use with my Bosch Palm Router and the Rockler Sign Making kit
Dennis C on Jan 26, 2018
gift
Teresa O on Nov 25, 2017
inexpensive way to mortise a pull in the edge of pocket door, i hope.
Works great! Fits my DW611 perfectly.
Fred F on Feb 24, 2017
simple base I can use double stick tape to apply to router, rather than drill holes for each router.

Dennis
Dennis W on Jan 29, 2017
Thought it would be a better option to start out with rather than purchasing a mortising machine.
Tom H on Jan 24, 2017
to modify my pony router
Christopher D on Oct 4, 2016
I wanted to be able to see my cuts as I cut
Bill L on Sep 28, 2016
This looks like a very good and versatile option to trying to center mortises in project parts.
Jack M on Mar 9, 2016
I plan on using it for my mortise and tenon jig, the reason why is the opening in the bottom of my current router has to big of an opening for the bushings in that kit.
Charles J on Mar 5, 2016
I am hoping this will be easier to make my mortises than the lengthy set up at my router table.
Sherri P on Feb 20, 2016
Inexpensive way to cut mortises for loose tenon joinery in small projects
Robert M on Feb 8, 2016
I will be making mortises in web frames and frame and panel pieces for a chest of drawers project I just embarked upon.
Richard L on Jan 15, 2016
It's a no brainer for dead center mortises
Douglas Y on Jan 8, 2016
it gives me more confidence in my roauting
KEVIN M on Jan 4, 2016
for my brother
Catherine C on Dec 7, 2015
if it works it can eliminate multiple jigs
howard d on Dec 3, 2015
I need it for mortises
David C on Jan 28, 2018
gift
Teresa O on Nov 25, 2017
will this fit sears routers?
GARY S on Jan 19, 2016
BEST ANSWER: Don't know as I have a Bosch
Can you use a groove router bit to make grab points on the edge of a thick cutting board/butcher block?
Steven H on Jan 2, 2016
BEST ANSWER: I have never used the base in that way! The item can be used on a variety of board widths and have used it that way successfully. Your question is interesting however I am not sure it was designed with that application in mind.
Will this work with 1/4" drill master trim router?
Robert G on Jan 16, 2016
BEST ANSWER: I purchased this item for my Bosch Colt router, I am not familiar with the drill master

Thanks, Thom
I have a Bosch compact router, but it is not a plunge router. Will this base still work without too much trouble adjusting depths?
Jack O on Mar 18, 2018
BEST ANSWER: If it has the same base it should work just fine
Will this fit Ridgid compact router R2401? thank you
scott c on Aug 1, 2016
BEST ANSWER: Can't answer that specific question. I bought mine for a Bosche however that app works very well. Sure beats a fence or other method of alignment. Seems to be fairly universal ( has multiple mounting holes) as well.
Will this base work with router Item #: 27168?
Aaron H on Dec 30, 2015
Rockler Compact Router Mortise Centering Base
Rockler Compact Router Mortise Centering Base
Porter-Cable 895PK Multi-Base Router Kit Fixed and Plunge Base
Porter-Cable 895PK Multi-Base Router Kit Fixed and Plunge Base
BEST ANSWER: There is a full size router version: 34553 - it will list the compatible routers on its page
Is there a list of routers that this jig will fit?
David S on May 21, 2018
BEST ANSWER: This jig is pre-drilled to accept: Bosch, Dewalt and Porter-Cable Compact Plunge Routers.
Will this fit Makita compact routers?
Ryan A on Feb 28, 2018
BEST ANSWER: The base is pre-drilled for Bosch, Dewalt and Porter-Cable compact plunge routers, it will not fit your Makita Router.
Can you tell me which Porter Cable router models this will fit?
Brian G on Jan 12, 2018
BEST ANSWER: This fits the Porter Cable 450
Will this base fit a DW616 router?
Marshall M on Jun 13, 2017
BEST ANSWER: No, this was made for smaller compact routers like the Dewalt 611 or the Bosch Colt
