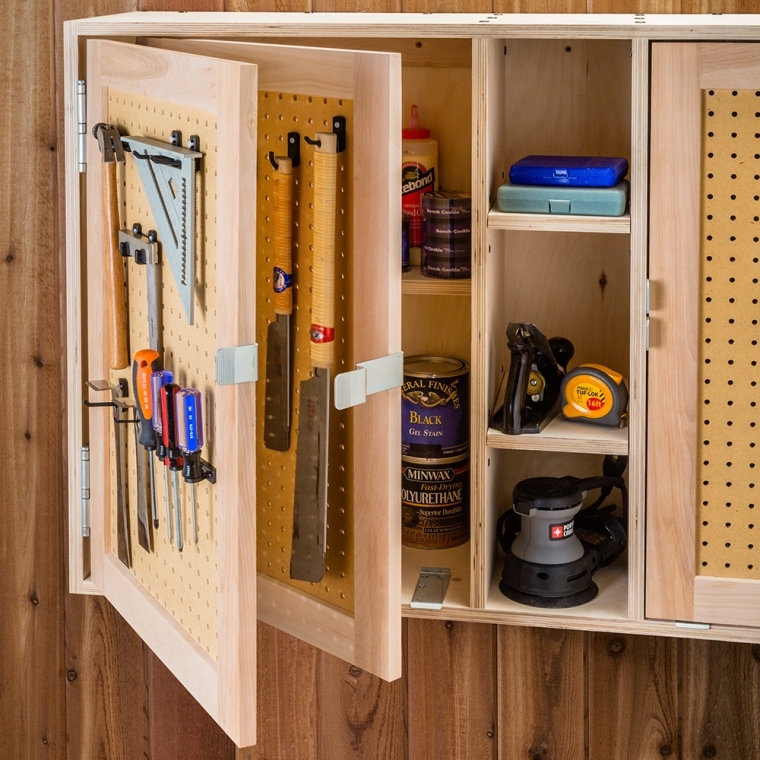

Double your door storage with these Rockler exclusive Tandem Door Hinges!

Download Free Plan

Rockler Tandem Door Hinge Set

Item #
59882
Rating:
90% of 100

As woodworkers, we always like to squeeze the most out of the limited shop space we have. This proprietary hinge set helps you do just that, effectively doubling the amount of on-door real estate available for tools and supplies. Once installed the outer door is opened to reveal a second inner door, both of which can be used for storage. Use pegboard in your door panels for neatly organized, dust-free hanging storage. Mount your most used tools on the outside, and lesser used tools on the inside. You can even mount them all facing inward for a cleaner look, and open everything up when it's time to work. One pair of hinges supports an outer door measuring up to 24''W x 36''H, along with its slightly smaller inner door.


Features:

  • Made from heavy-duty 12 gauge zinc-plated steel

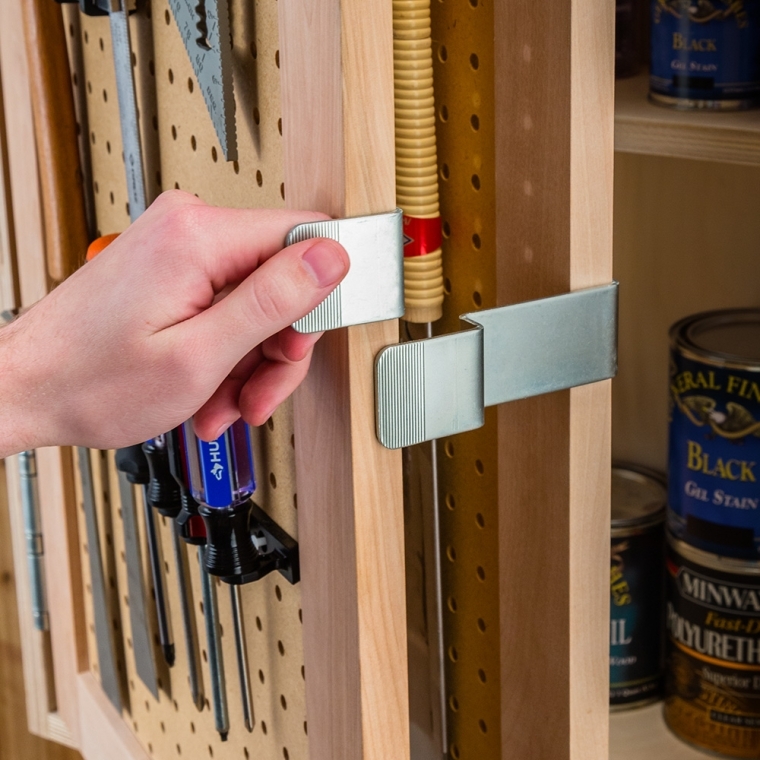

  • Included catch plate keeps doors in place and helps support weight when doors are closed
  • Hinges are easily reversible for left or right mounting
  • 2'' space between doors allows most pegboard accessories to be used
  • Nylon bullet-style catches mount to bottom of cabinet
  • Detailed instructions and a mounting template are included for easy building and installation

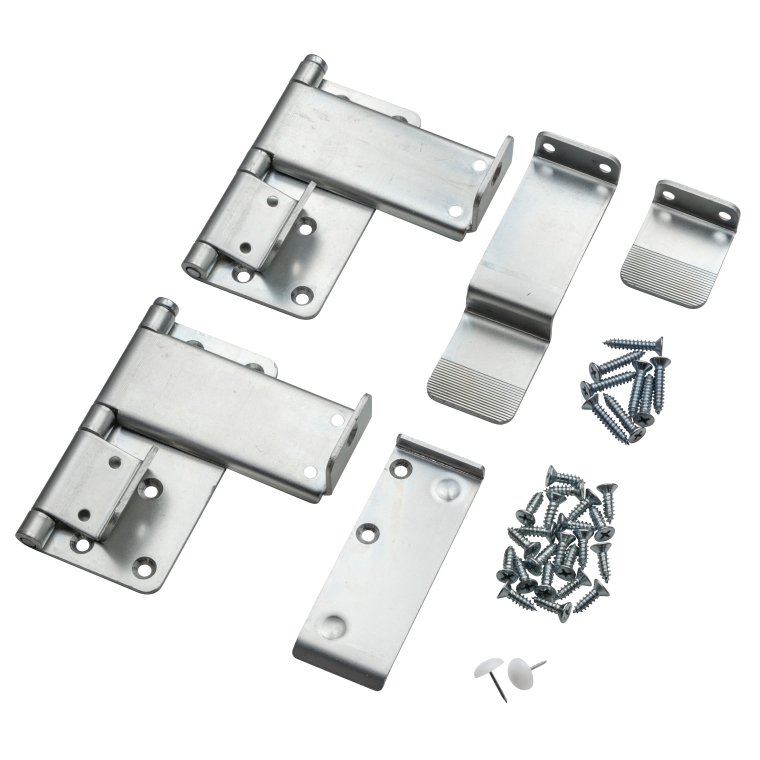

(2) Rockler Tandem Hinges
(2) Pulls
(1) Catch Plate
(2) Nylon Stops
(1) Pack of Mounting Hardware
(1) Set of Instructions
(1) Mounting Template
More Information
Brand Rockler
Weight 2.3500
Tech Spec
  • Maximum Weight Per Door (loaded with tools): 15 lbs (30 lbs per pair of Tandem Hinges)
  • Space Between Doors Once Installed: 2''
  • Required Door Frame Thickness: 3/4'' (solid wood only)
  • Minimum Stile/Rail Width: 2''
  • Maximum Width of Outer Door: 24''
  • Maximum Height of Outer Door (with 2 hinges): 36''
  • Maximum Height of Outer Door (with 3 hinges): 48''
  • Minimum Cabinet Depth: 6''
Technical Documents
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
4.5 / 5.0
15 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
9
5
1
0
0
Excellent design
These tandem door hinges are great. They’re solid, well designed, and best of all, they’re fun to show off.
The instructions are very thorough and include a hinge mounting template.
My only complaint is that in following the sizing guidelines, my door ended up too short for the catch to hit, so now I have to force the door in for my bypassing pegboard doors to slide in front.
These things are great. If you have a deep cabinet, but em.
These are very heavy duty. I think they’re rated for about 30 lbs, but they feel much stronger.
Will open a full 180 degrees, but mine hits my garage door.
The standoff for the inner door leaves enough room (2.5”)to hang narrow tools.
September 8, 2019
Purchased
4 weeks ago
Woodworking Experience:
Beginner
Rockler Tandem door Hingle set.
Perfect for my small homeworkshop space. I am a home machinist and diver for 24 years. Have a lot of tools and the tandem dor hingle was a perfect solution. I can store a lot of tools and gears in a organized and compact space and access everything in a fast and ease way. I´ll order more two!
February 17, 2019
Purchased
8 months ago
Woodworking Experience:
Intermediate
Worked great for my project
February 14, 2019
Purchased
7 months ago
Woodworking Experience:
Intermediate
worked great
January 22, 2019
Purchased
1 year ago
Woodworking Experience:
Advanced
Great Space Saver!
Three storage shelves in the space of one!
September 20, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Wish I found these before I built my sliding door shop cabinet. I will use these when I construct my storage cabinet for my garage in Arizona.
March 8, 2016
Woodworking Experience:
Intermediate
Very nice.
I made a cabinet for all my trains. I used the hinges for doors to keep all My tools and it works great. The measurements need to be exact when setting up the doors. I would recommend this to anyone.
February 2, 2016
Purchased
over 4 years ago
Woodworking Experience:
Intermediate
works great
Easy to install,,, works as expected,,, saves space and got a lot of complements on the uniqueness of the cabinet
November 25, 2015
Purchased
over 4 years ago
Woodworking Experience:
Intermediate
Great Hinges
I had not seen these style of hinges before and thought the look like a good idea. When I received them the package was very heavy for what I thought was in there. I opened it and these hinges are very well designed and made to last forever. They have just the right spacing and allow you to double or triple the amount of storage for tools/etc. I would not hesitate for a minute to purchase these hinges if you have a good area to use them.
September 18, 2015
Purchased
over 4 years ago
Woodworking Experience:
Advanced
Tandem hinges
Very well made and rugged. Good for holding heavy tools on cabinet doors. Would be better if Rockler offered a set of hinges for deeper cabinets as well. Product is 5 stars. Price is too high for what it is.
March 14, 2019
Purchased
6 months ago
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 6 questions Browse 6 questions and 56 answers
Why did you choose this?
Rockler Store
Rockler was the only place I could find this type of hinge and it is of great quality.
Erik L on Aug 26, 2019
This would work great for a small storage cabinet I'm building.
Angi M on Jul 17, 2019
Rockler was the only place I could find this type of hinge and it is of great quality.
Erik L on Aug 26, 2019
I watched a YouTube video that had this product used in the project. I thought the hinge was a great idea and bought it to build the same project in the YouTube video.
Douglas A on Jul 18, 2019
This would work great for a small storage cabinet I'm building.
Angi M on Jul 17, 2019
I want to increase my workshop storage - this allows me to have shelving and double the pegboard in the same footprint.
Chad M on Jun 3, 2019
Unique design, exactly what I needed for my tool cabinet build.
Silver Eagle on May 26, 2019
When the first step in any woodworking project is to back out the cars and move things to get to the tools, it's a small shop. This will be great for space saving where needed.
Andrew Z on May 21, 2019
Needed these for a tool storage cabinet I am building. Great space saver in a small shop.
bobby w on May 19, 2019
very cool space saver
Minoru W on Mar 27, 2019
need for Sanding cabinet in free plan area
Christopher F on Jan 24, 2019
Building a shop cabinet for my tools
Michael P on Jan 11, 2019
Making tool cabinet.
Florence B on Dec 31, 2018
on sale
Joe N on Apr 26, 2018
Need space
Terry T on Apr 26, 2018
Remodeling my work shop and liked this solution.
Richard B on Apr 21, 2018
I need to make a new peg board cabinet to clean up my tool storage and this looks like a good solution.
FRANK R on Apr 16, 2018
neat idea
Dewey on Apr 13, 2018
To use on the shop cabinets I'm building
Joe W on Jan 31, 2018
It works for this project.
Dave W on Jan 16, 2018
Have one set, haven't used it yet, but wanted another. quality looked good.
Sheryl D on Jul 9, 2017
Looked like an interesting and useful build.
Sheryl D on Jun 5, 2017
Building the sanding center
Ross M on Mar 30, 2017
I Have a project in mind.
Keith J on Mar 16, 2017
building a cabinet for gardening tools
Ismail T on Mar 12, 2017
making cool cabinets
James H on Mar 6, 2017
I hope to make some doors upon which to store my tools. I may design the doors as part of a storage chest for my tools.
David S. B on Mar 2, 2017
Figured one day I would build a cabinet with these.
Glen on Feb 25, 2017
Shop cabinets
Eric F on Feb 20, 2017
This is my second set of these. They have tripled the capacity of my wall mounted tool cabinet.
MICHAEL A on Feb 5, 2017
Sanding cabinet from plans on your site!
Steve on Jan 5, 2017
Building a new work bench. This seemed like a clever way to maximize storage.
Ron P on Dec 30, 2016
I have many layout & measurement tools,<br />too many for a single 4x4 hardboard so I'm<br />making a 3 level cabinet to hold them all.
Ralph S on Oct 24, 2016
making a pullout drawer and using these hinges for hanging my saw blades
speedybose on Oct 23, 2016
Project to organize my out-of-control pegboard system in the garage shop.
George G on Sep 8, 2016
Not a lot of wall room so need the double panel cabinet these hinges can provide.
Phillip on Jul 10, 2016
Hold good weight, reconfiguration was a bit tricky.
Dan L on Jul 1, 2016
I saw these in the catalog and am building out my workshop. These would be a great addition!
Michael B on Jun 1, 2016
Interested in trying the dual doors.
Don K on Mar 20, 2016
Saw on You Tube
LOY C on Mar 14, 2016
GOING TO MAKE A CABINET USING THIS STYLE SETUP
JAMES K on Feb 29, 2016
Only tandem hinges on the market. A bit pricey but they work well. I recommend measuring the door-side hinges and the pulls rather than using the paper ones suppiled for a more accurate layout. Highly recommend the hinges, very heavy duty. Since the hinge is 1/2" I added 1/2" window insulation on the cabinet edges to help keep out dust. Awesome product.
Bob K on Feb 10, 2016
Easy access on commonly used small tools and space saver.
Angel V on Dec 25, 2015
Replace my roll-around drawer tool boxes to save work space and easy access to tools.
DrKdog on Dec 17, 2015
unique product, enables more on vertical surface=less clutter
Randall R on Dec 15, 2015
Excellent way to store items in my home shop.
Paul P on Dec 10, 2015
I bought them to make the wall cabinet you see in your add for them. They really work great and really gives a small shop a lot more wall space.
bruce s on Dec 1, 2015
unique cabinet construction
Hal R on Nov 26, 2015
more space to hang tools
Mark W on Nov 2, 2015
Like the idea of having lots of organized storage for tools in an easy to get to format.
Rick on Oct 1, 2015
To add storage to my workbench
Roger H on Sep 28, 2015
Planning a cabinet for shop. This will give me back my peg board which will be covered by new cabinet.
Allen0105 on Sep 18, 2015
I watched a YouTube video that had this product used in the project. I thought the hinge was a great idea and bought it to build the same project in the YouTube video.
Douglas A on Jul 18, 2019
I want to increase my workshop storage - this allows me to have shelving and double the pegboard in the same footprint.
Chad M on Jun 3, 2019
Do you have PDF plans to construct a wall storage tool cabinet that uses these hinges?
George on May 3, 2015
BEST ANSWER: Not at this time.
what are the dimensions of these hinges? I printed the template but have no guarantee what scale it is. Before designing a cabinet using these I'd also like to know the space between the leafs when closed (assuming I use the 3/4" recommended construction thickness).
A shopper on Jun 15, 2015
BEST ANSWER: The leaf that goes into the cabinet is 4 1/2".
The top leaf is 4" (measured from the center of the pin).
The bottom leaf is 1"
The distance between the two doors, using 3/4" frames is 2 1/4".
Hope this is useful.
Love the hinges and will order if where can get the plan for the storage unit?
Jim R on May 3, 2015
BEST ANSWER: The size and style of the storage unit is somewhat flexible, however detailed instructions and a mounting template are included in the package.
The product description says I need 3 hinges for a door that's taller than 36" but why is this product only sold in pairs? Hey Rockler: how about you sell them individually as an add-on to the pair, or make a kit that has 3 hinges instead of just 2? I ended up buying three pairs of the hinges, I'll use 3 of the 6 hinges on this project and then just have to hold on to the extra 3 hinges in the hopes that I can think up some project to use them in the future.
Chico on Jan 2, 2017
BEST ANSWER: You could have purchased 2 pair of hinges, then installed 4 hinges on the door so that it holds more weight. That would allow for 60 lbs. of weight - less than you might put in a drawer with 60 to 100 lbs. slides.
